LVD - AXEL 3015 STR-LAS-LVD-2004-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- LVD AXEL 3015 S Laser Cutting Machine

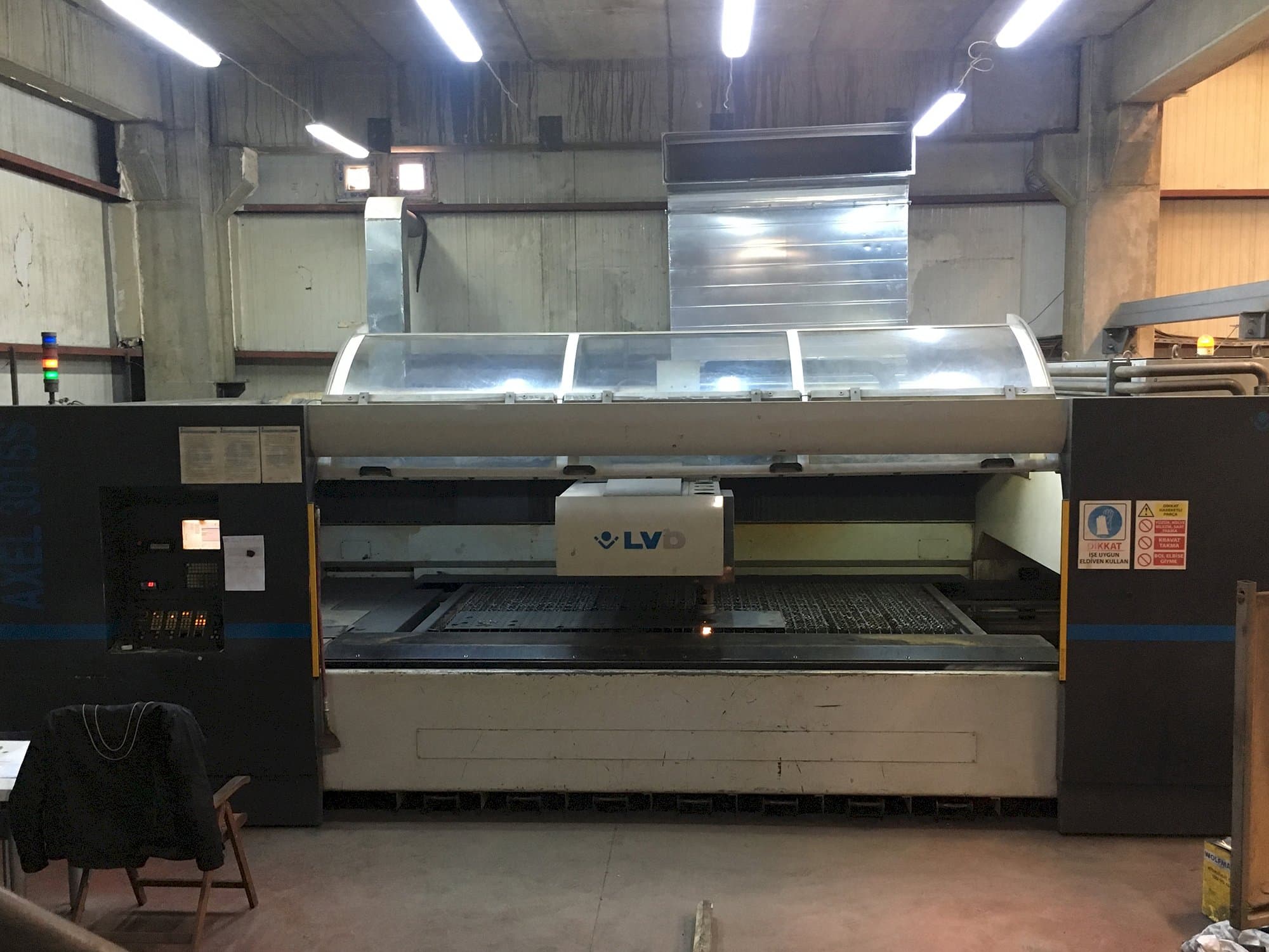

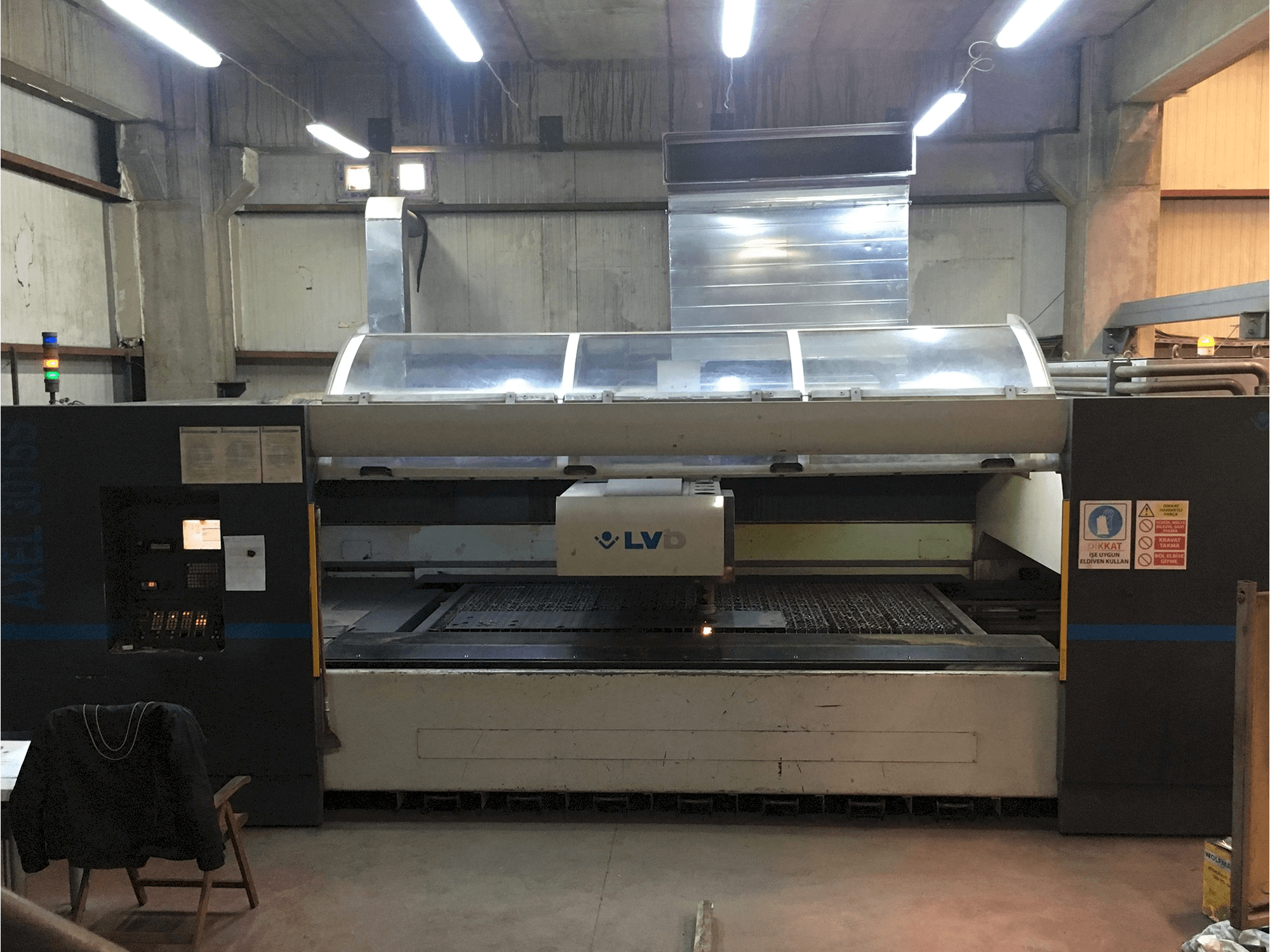

This LVD AXEL 3015 S Laser Cutting Machine from 2004 was made in Belgium and counts with a production time of 46875 working hours. Operated through a FANUC 160i-LB Control unit, this machine has mainly worked with steel up to 10 mm of thickness for the production of electrical panels and power units components. It presents excellent conditions and includes a chiller and a dust extraction unit.
Overview
- brand: LVD
- year: 2004
- MODEL: AXEL 3015 S
- production hours: 46875
- application type: Cutting
- Location: Turkey
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - LVD AXEL 3015 S
General Data
- Measurements width: 11150 mm
- Measurements depth: 4450 mm
- Measurements height: 2350 mm
- Machine weight: 22175 kg
Control Unit
- Brand: FANUC
- Model: 160i-LB
- CNC main language: English
Main drive
- Laserpower: 4 kW
- Laser type: carbon
- Laser brand: FANUC LASER C4000- MODEL E
Movement
- X-AXIS Movement: 3150 mm
- Y-AXIS Movement: 1600 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
Max Material thickness
- Steel: 20 mm
Additional Equipment
- - Chiller
- - Dust extraction unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
