- LS MTRON WIZ700 Injection Moulding Machine

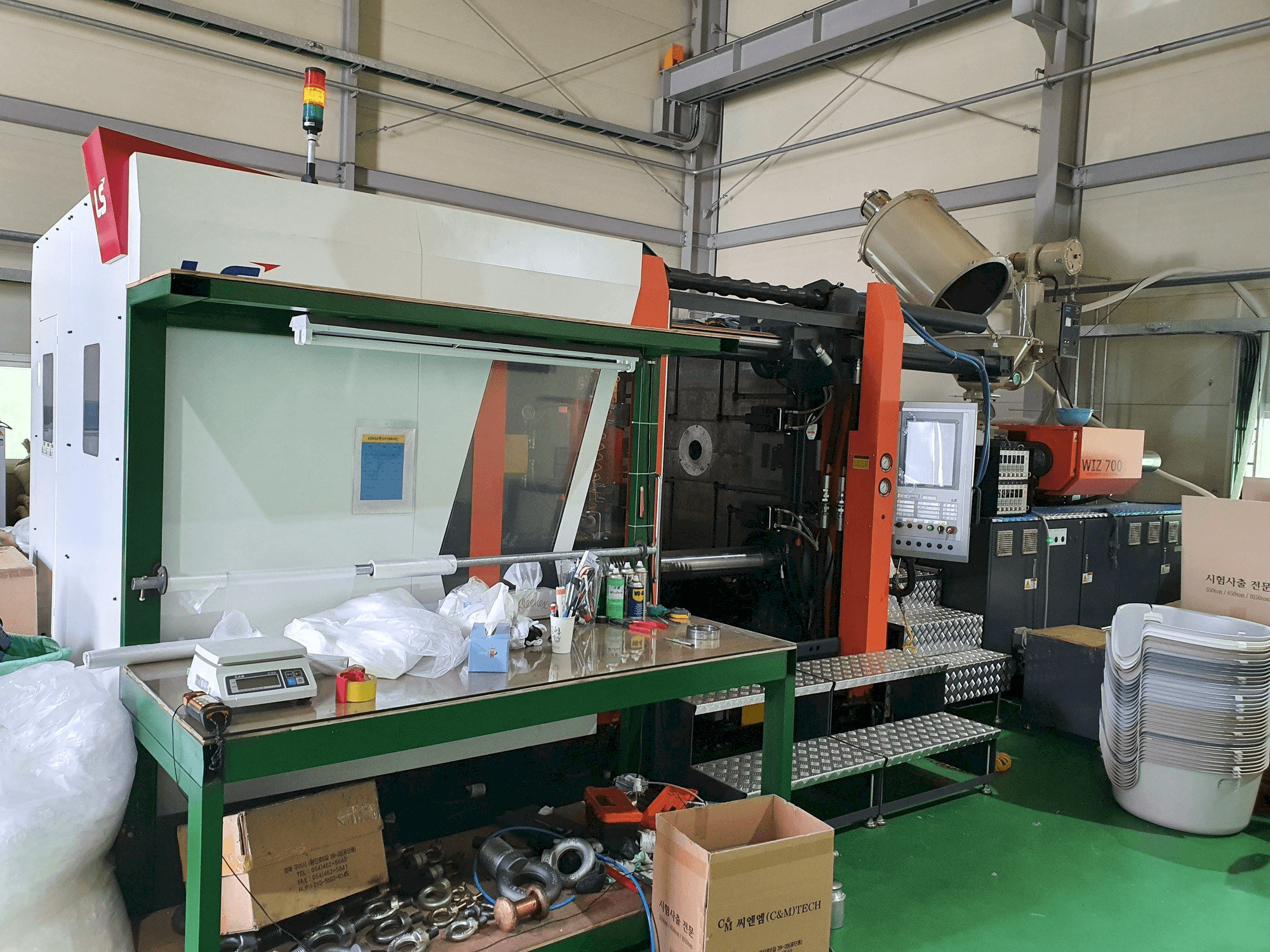

This LS MTRON WIZ700 Injection Moulding Machine was made in the year 2019. This machine is capable of operating with a clamping force 6377 kN, clamping stoke between 700 - 1350 mm, mold thickness 450 - 1100 mm and a screw diameter 90 mm.
Overview
- brand: LS MTRON
- year: 2019
- MODEL: WIZ700
- application type: Injection Moulding
- Location: South Korea
- machine type: Electrical Injection Moulding Machine
- availability: Sold
Technical Information - LS MTRON WIZ700
General Data
- Measurements width: 8400 mm
- Measurements depth: 2700 mm
- Measurements height: 2500 mm
- Machine weight: 31000 kg
Injection Unit
- Screw diameter: 90 mm
- Stroke volume: 495 mm CM³
- Injection pressure: 3147 BAR
- Plasticizing rate max.: 114 g/sec
- Screw speed: 140 rpm
- Heating capacity: 39.6 kw
Clamping unit
- Clamping force: 6377 kN
- Opening stroke: 700 - 1350 mm
- Max open daylight: 1800 mm
- Distance between bars: 1000 x 1000 mm
- Ejector stroke: 250 mm
- Ejector force for / back: 182 kN
Additional Information
- Technical Machine Benefits:
- - Mold closing speed 60 m/min
- - Mold opening speed 49. 4 mm
- - Injection speed 118 mm/sec
- - Mold opening force: 1197 kn
- - Platen size (h x v): 1440 x 1440 mm
- - Mold thickness: 450 - 1100 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
