Liechti Turbomill 1400g Twin Lathe

Show in original language

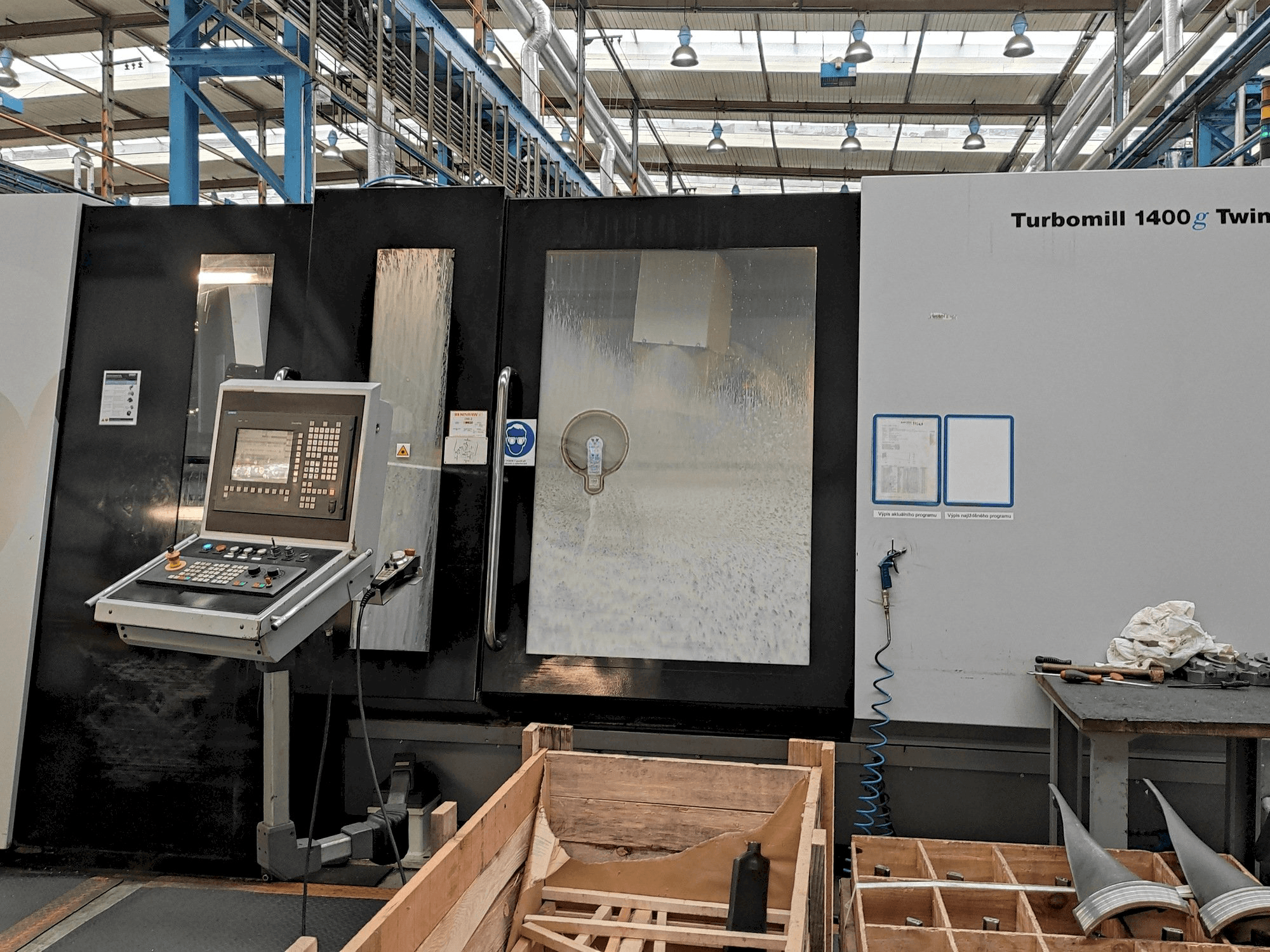

This Liechti Turbomill 1400g Twin Lathe was made in Switzerland in 2010. It is operated through a Siemens 840D control unit. This 10 axis machine works with a spindle speed up to 20000 rpm. It is in very good condition and has a regularly maintained.

Overview

brand: Liechti
year: 2010
MODEL: Turbomill 1400g Twin
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Liechti Turbomill 1400g Twin

General Data

Machine weight: 22000 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 4
Spindle speed range: 20000 1/MIN
Spindle motor power: 25 kW
Number of axis: 10

Movement

X-AXIS Movement: 1980 (- 527 / + 1453) mm
Y-AXIS Movement: 450 (- 160 / + 290) mm
Z-AXIS Movement: 400 ( + 75 / + 475) mm

Tools

Slots in storage: 32
Max tool diameter: 75/150 mm
Max tool length: 290 mm
Type of tool holder: HSK-A63

Media

Main electronic connection: 3 x 400V / 50Hz
Power consumption: 140 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Axis a (a1/a2 and a11/22) 360 º (rollover)
- - Milling head (axis b): 100 º (- 50 / + 50 º) @ x ≥ 60 mm; 92 º (- 42 / + 50 º) @ x < 60 mm
- - Max. Torque: 119. 4 nm
- - Through spindle cooling
- - Coolant
Qualitative Machine Benefits:
- - Machine manual
- - Very good condition
- - Regularly maintained
- - *main parts replaced in 2021: new spindle sp1
- - In 2021: new axis a12 - master
- - In 2020: new spindle sp2
- - Z1 and z11 axis and ball screw replacement
- - In 2019: z axis motor replacement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
