➤ Used Leadwell V-40 | Vertical Machining Center

Show in original language

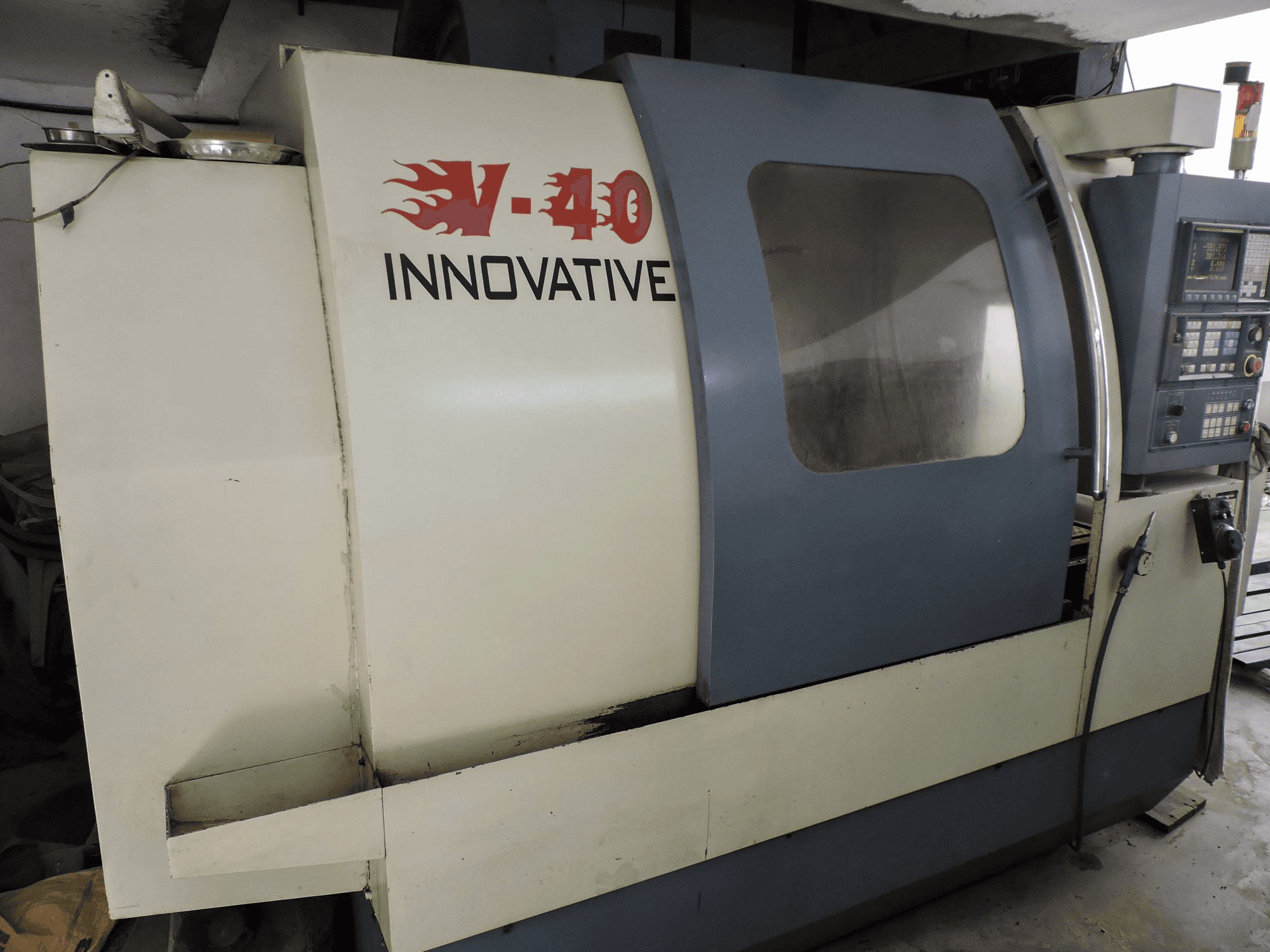

This Leadwell V-40 Vertical Machining Center from 2003 was manufactured in Taiwan and has been operative for approximately 32500 working hours since then. Equipped with a Fanuc Series 21-M Control unit, this machine has mainly worked with aluminum during the past and is well maintained.

Overview

brand: Leadwell
year: 2003
MODEL: V-40
production hours: 32500
application type: Milling
Location: India
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Leadwell V-40

General Data

Measurements width: 2990 mm
Measurements depth: 2250 mm
Measurements height: 2600 mm
Machine weight: 5000 kg

Control Unit

Brand: Fanuc
Model: Series 21-M

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/min

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
V-Axis Movement: 510 mm
A-AXIS Movement: 110 mm

Table

Outer length: 1200 mm
Outer width: 500 mm

Tools

Max weight: 7 kg
Max tool diameter: 115 mm
Max tool length: 250 mm

Media

Main electronic connection: 415 V
Power consumption: 25 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
