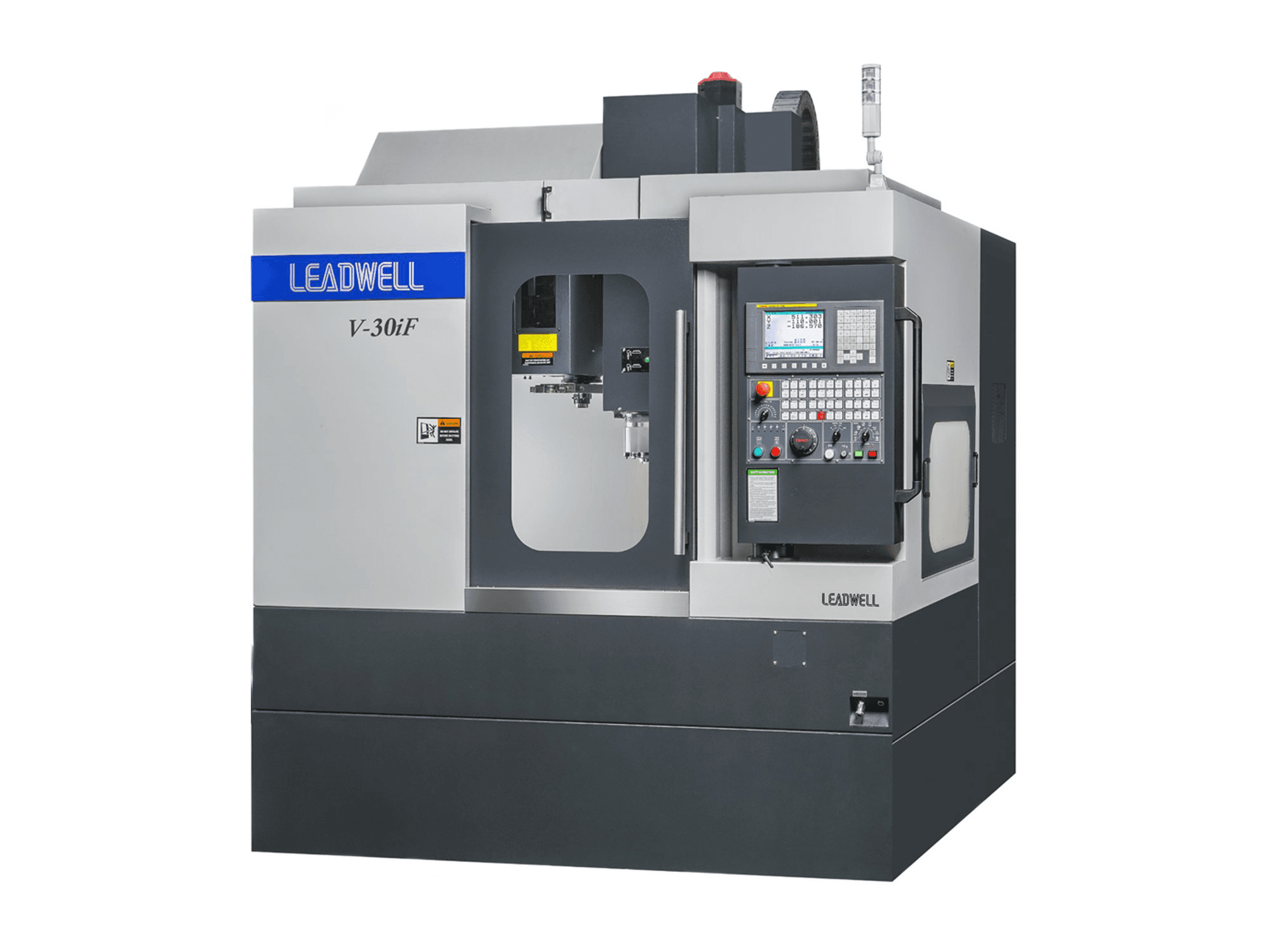

➤ Used Leadwell V-30iF - Vertical Machining Center

Show in original language

This new Leadwell V-30iF Vertical Machining Center was manufactured in Taiwan in 2017 and is operated through a Heidenhain TNC 620 Control unit. This model stands out due to its maximum table load capacity of 300 kg and performs a tool change in 2.2 seconds. An additional tool magazine for up to 30 tools is included in the delivery.

Overview

brand: Leadwell
year: 2017
MODEL: V-30iF
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Leadwell V-30iF

General Data

Measurements width: 2170 mm
Measurements depth: 2250 mm
Measurements height: 1810 mm
Machine weight: 3700 kg

Control Unit

Model: TNC 620
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 860 mm
Outer width: 450 mm
TSlots size: 18 mm
Number of tslots: 3
Distance between: 125 mm
Table load: 300 kg

Tools

Max weight: 7 kg

Media

Main electronic connection: 400 V
Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool magazine with 30 station

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
