➤ Used LAGUN GVC 1000 For Sale | gindumac.com

Show in original language

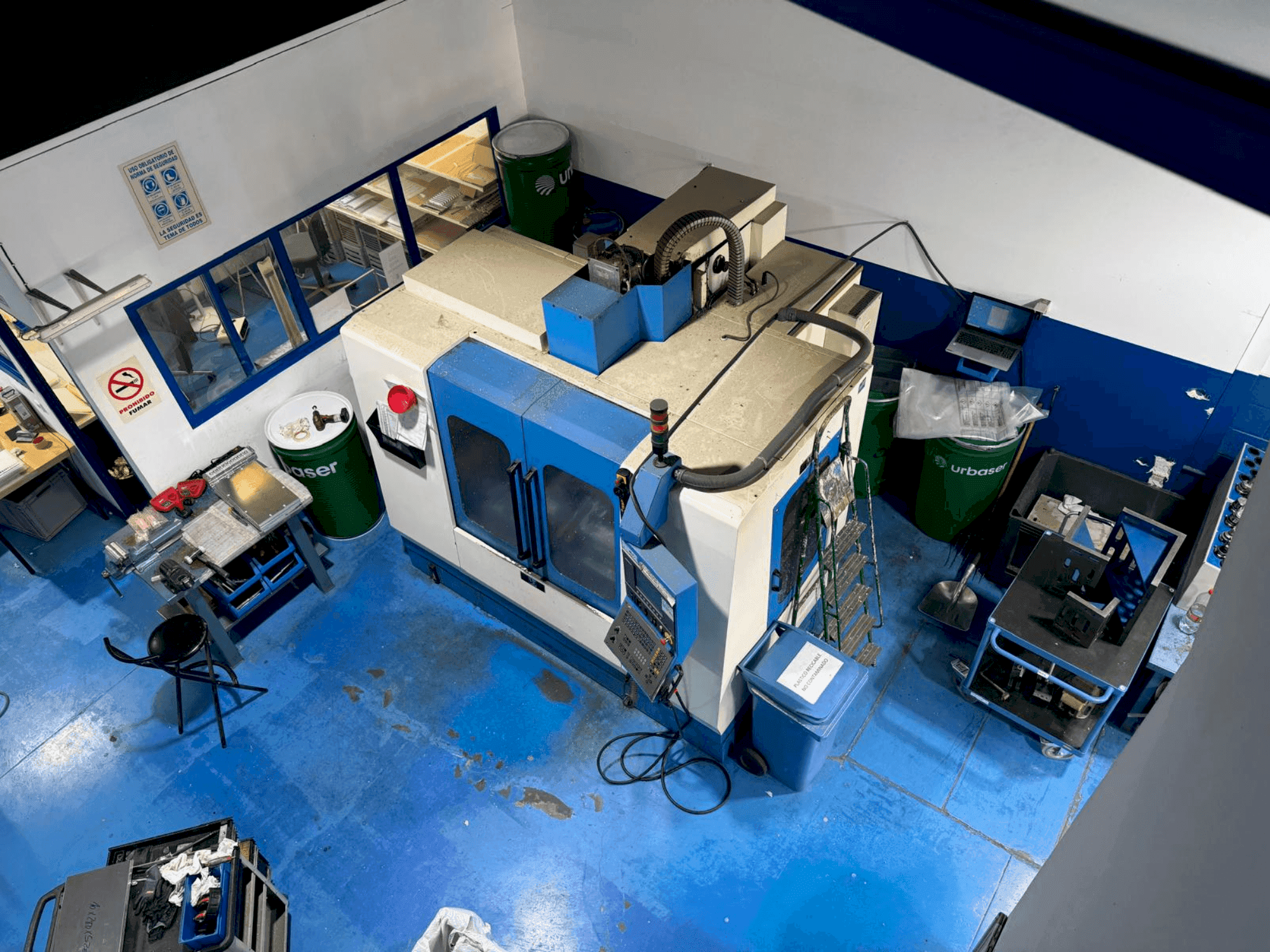

This 3-axis LAGUN GVC 1000 vertical machining center was manufactured in 2001. It features a HEIDENHAIN 410 control, a table surface of 1200 x 500 mm, and a maximum table load of 750 kg. The spindle operates at 60 - 6000 r.p.m. with a main motor power of 7.5/9 kW. If you are looking to get high-quality milling capabilities, consider the LAGUN GVC 1000 machine we have for sale. Contact us for more information about this machine.

Overview

brand: LAGUN
year: 2001
MODEL: GVC 1000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - LAGUN GVC 1000

General Data

Measurements width: 2930 mm
Measurements depth: 2240 mm
Measurements height: 2750 mm
Machine weight: 6300 kg

Control Unit

Brand: HEIDENHAIN
Model: 410

Main drive

Spindle speed range: 60 - 6000 rpm 1/MIN
Spindle motor power: 7.5 / 9 kW
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 510 ± 111.5 mm

Table

TSlots size: 20 x 135 mm
Number of tslots: 3
Table load: 750 kg

Tools

Number of index: 18
Max weight: 90 kg
Max tool diameter: 85 mm / 135 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface: 1200 x 500 mm
- - Table height from floor: 910 mm
- - Min. /max. Distance from spindle to table: 100 ~ 610 (721. 5) mm
- - Distance from table center to column: 260 ~ 760 mm
- - Distance from axis center to column: 510 mm
- - Tool change time: 8 seconds
- - Required air pressure: 6-7 kg/cm²
- - Optional spindle speed range: 100 - 10000 rpm
- - Total installed power: 17 kw

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
