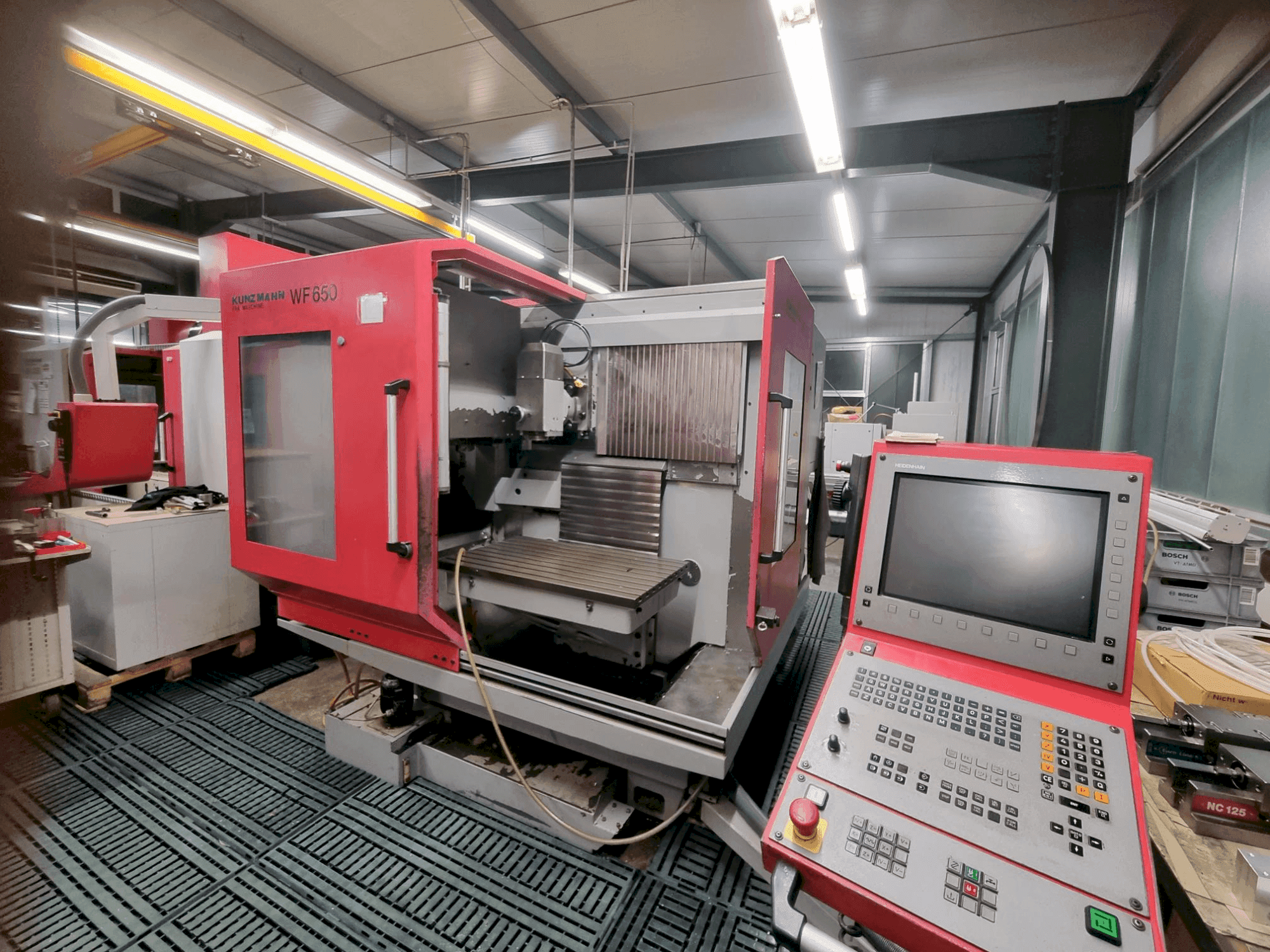

This 3-axis KUNZMANN WF 650 was manufactured in 2006. A vertical machining center featuring a robust angled table measuring 1,000 x 600 mm, iTNC 530 control, and a pull-out chip box. It includes a 2-stage gearbox with a spindle speed up to 6,500 rpm and SK 40 taper. With 20 tool places and spindle hours at 5,355, the KUNZMANN WF 650 machine we have for sale represents a solid opportunity. Contact us for further details.
Overview
- brand: KUNZMANN
- year: 2006
- MODEL: WF 650
- production hours: 20
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
Technical Information - KUNZMANN WF 650
General Data
- Measurements width: 2700 MM
- Measurements depth: 2300 MM
- Measurements height: 2250 MM
Control Unit
- Model: iTNC 530
Main drive
- Spindle speed range: 6500 1/MIN
- Spindle bore: 27mm
- Tool taper: SK 40
- Number of axis: 5
Movement
- X-AXIS Movement: 650 MM
- Y-AXIS Movement: 500 MM
- Z-AXIS Movement: 450 MM
Table
- Outer length: 1000 mm
- Outer width: 600 mm
Tools
- Slots in storage: 20
Additional Equipment
- - Chip flushing gun
- - Pull-out chip box
- - Table top edge to horizontal spindle center max 720mm
- - Upper edge of table to lower edge of milling spindle max 550mm
- - Max. workpiece weight 400kg
- - Torque 300Nm
- - Quill stroke 60mm // Quill diameter 98mm
- - 20 tool places
Additional Information
- Technical Machine Benefits:
- - Spindle hours: 5,355 h
- - Switch-on hours: approx. 20,000 h
- - Speeds: stage 1: 1-1625 min-1 stage 2 1626-6500 min-1
- - Weight with rigid angular table 4800kg
- - Weight with fixed angled table and tool changer 5300kg
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
