- Krauss Maffei KM 800/5700 MC Injection Moulding Machine

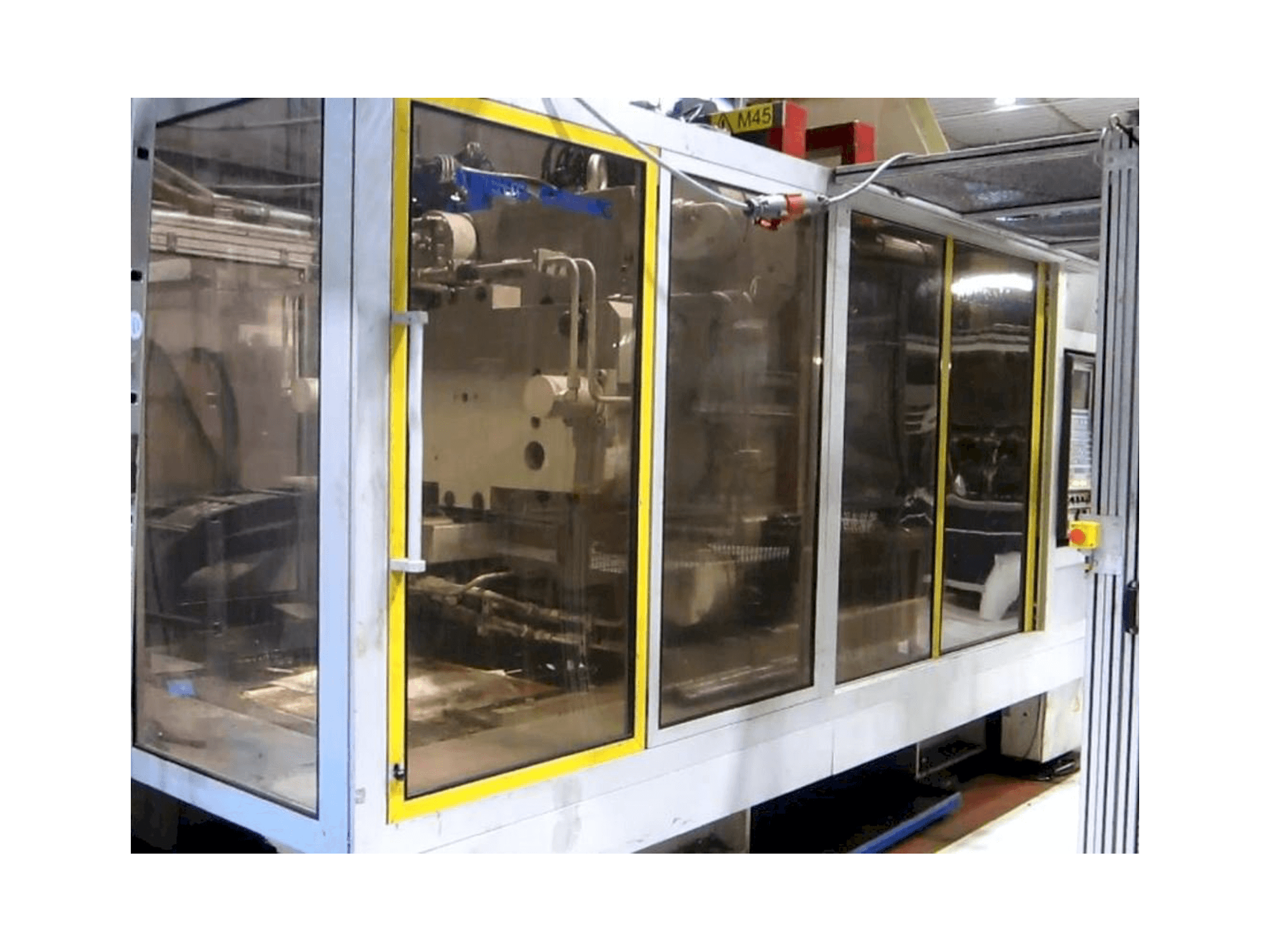

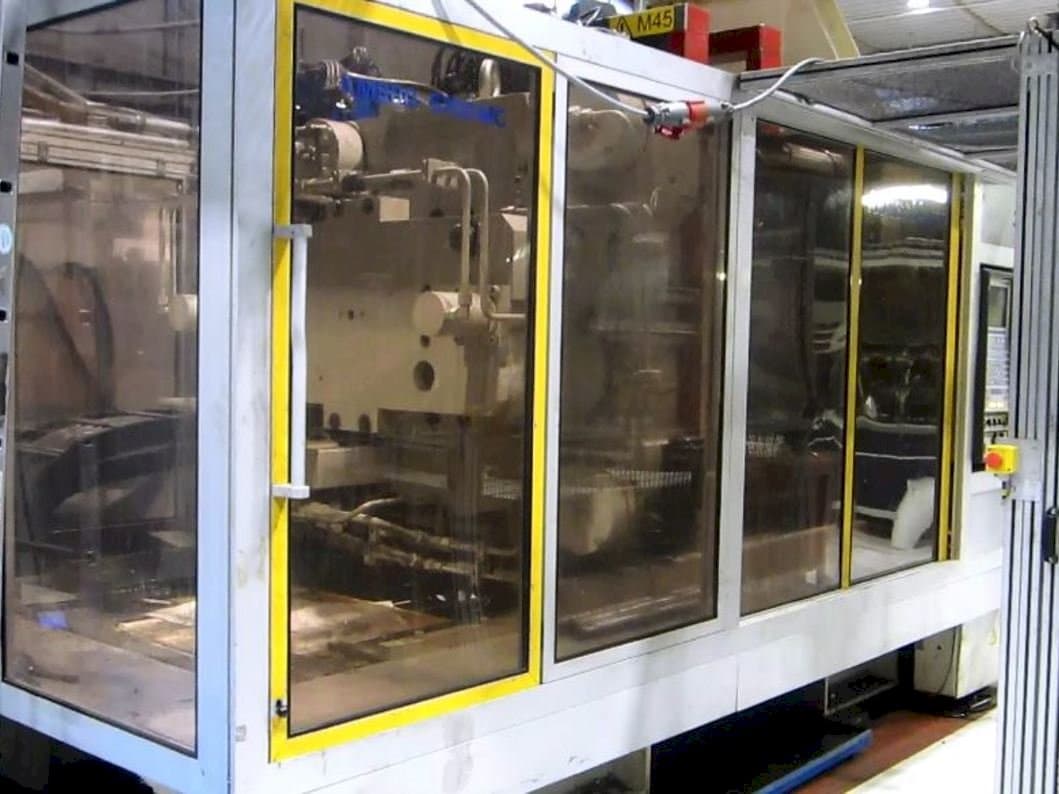

This Krauss Maffei KM 800/5700 MC Injection Moulding Machine was manufactured in the year 2000. It has 78115 production hours. This machine operates with a clamping force 8000 kN, a screw diameter 115 mm, and an ejection stroke 250 mm. It is operated with a control unit of the same brand.
Overview
- brand: Krauss Maffei
- year: 2000
- MODEL: KM 800/5700 MC
- production hours: 78115
- application type: Injection Moulding
- Location: France
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei KM 800/5700 MC
Injection Unit
- Screw diameter: 115 mm
- Injection pressure: 1318 bar
Clamping unit
- Clamping force: 8000 kN
- Ejector stroke: 250 mm
Additional Equipment
- - Hot runners : 20 zones
- - 4 core pull in mobile platen
- - 3 core pull in fix platen
Additional Information
- Technical Machine Benefits:
- - Injection volume max : 4331 cm3
- - Platen dimension : 1600 x 1510 mm
- - Distance between tie bar : 1120 x 1000 mm
- - Mould thickness min / max : 600 mm / 1100 mm
- - Opening stroke max : 1400 mm
- - Distance max between platen : 2000 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
