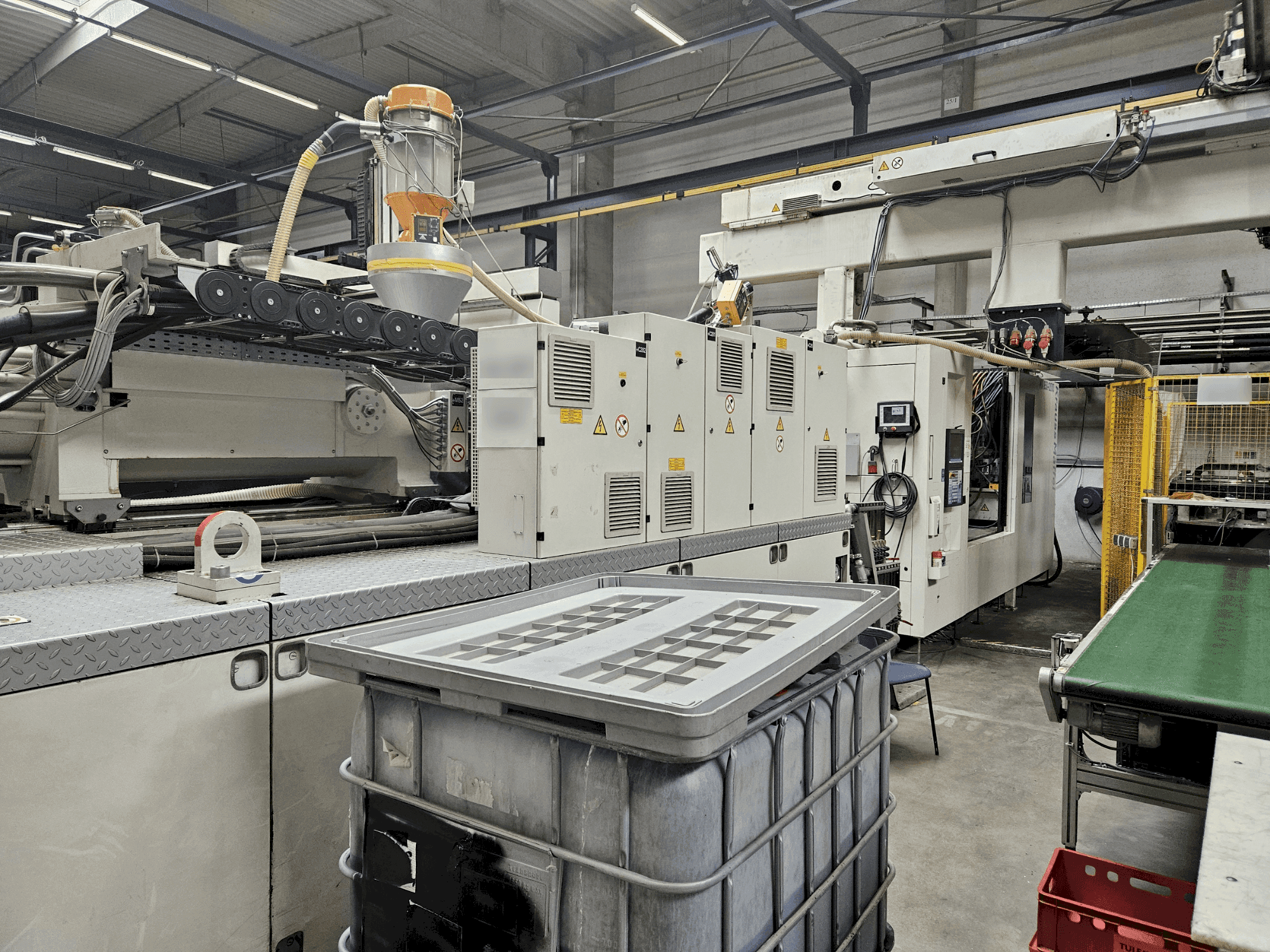

Front view of Krauss Maffei 850-12000 MX  machine

Krauss Maffei - 850-12000 MXPL-INJ-KRA-2011-00001

100,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Krauss Maffei 850-12000 MX was manufactured in 2011. A robust hydraulic clamping unit and a standard screw with a diameter of 135 mm ensure efficient operation. It features a high injection pressure of 1389 bar and a maximum injection rate of 1415 cm³/s. The machine includes a KM LRX 500 handling robot, enhancing automation and productivity. Ideal for those needing a dependable injection moulding machine. Contact us for more information.

Overview

  • brand: Krauss Maffei
  • year: 2011
  • MODEL: 850-12000 MX
  • production hours: 73436
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately
  • control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 850-12000 MX

Control Unit

  • Model: MC5
  • Brand: KRAUSS MAFFEI

    Additional Equipment

    • - Handling Robot: KM LRX 500

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High clamping force of 8500 kn for robust operations
        • - Advanced control system for precise operations
        • - Equipped with a handling robot for automated processes
        • - Clamping force: 8500 kn
        • - Type of clamping unit: hydraulic
        • - Screw diameter: 135 mm, volume of screw channel: 8588 cm³
        • - Non-return valve: yes
        • - Max. Injection pressure: 1389 bar, max. Injection rate: 1415 cm³/s
        • - L/d ratio: 23:1
        • - Plasticizing capacity: 8588 g/s, injection capacity: 7815 cm³, shot weight in ps: 1600 g
      • Qualitative Machine Benefits:
        • - High injection pressure and rate for efficient molding
        • - Versatile with options for core pullers and hot runner control

      Extra information

      • - Opening Stroke: 500/1100 mm, Mold Height (min/max): 2100 mm, Max. Daylight Opening: 1600/1530 mm, Platen Dimensions: 1120 x 1000 mm, Clearance Between Tie Bars: 12200 mm, Max. Mold Weight: 250/250 kg, Centering Ring: M36, Ejector Stroke: 300 mm, Core Pullers: 1, Cooling Circuits: 2, Hot Runner Control: 2 zones,

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
