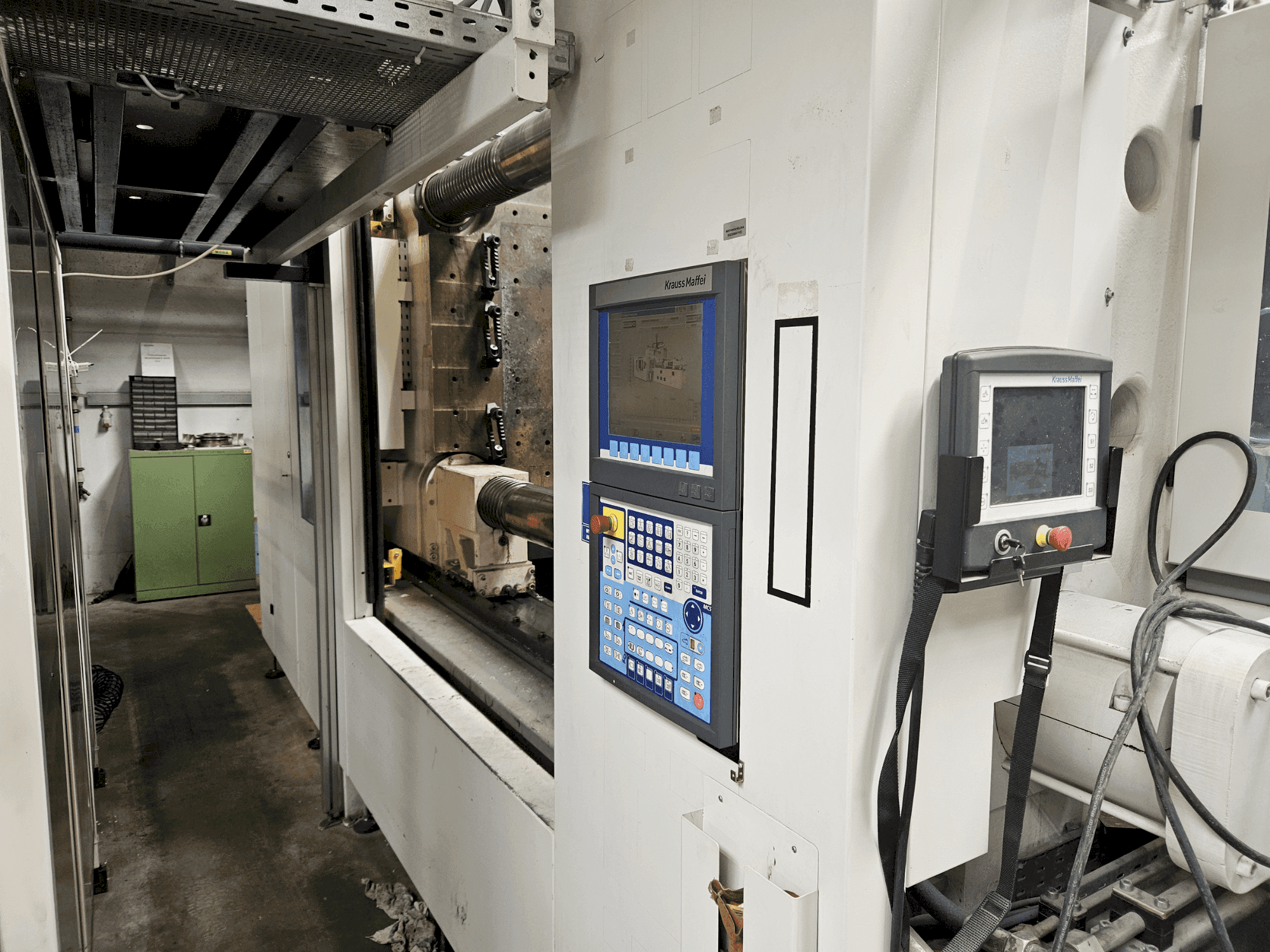

Krauss Maffei - 800-12000 MXPL-INJ-KRA-2007-00001

Additional Equipment

• - Handling Robot: KM LRX 500
• - Equipped with a handling robot for automated processes

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High clamping force of 8000 kn for robust operations
  • - Advanced control system for precise operations
  • - Centering ring: m36 // core pullers: 2 // cooling circuits: 12 // hot runner control: 2 zones
  • - Type of clamping unit: hydraulic
  • - Volume of screw channel: 8588 cm³
  • - Non-return valve: yes
  • - Max. Injection pressure: 1389 bar // max. Injection rate: 1415 cm³/s
  • - L/d ratio: 23:1 // plasticizing capacity: 8588 g/s // injection capacity: 7815 cm³
  • - Shot weight in ps: 1600 g // opening stroke: 600-1100 mm // mold height (min/max): 2100 mm // max. Daylight opening: 1960/1740 mm
  • - Platen dimensions: 1400 x 1120 mm // clearance between tie bars: 12200 mm //max. Mold weight: 250/250 kg //
• Qualitative Machine Benefits:
  • - High injection pressure and rate for efficient molding
  • - Versatile with options for core pullers and hot runner control

Extra information

• - machine still under power
