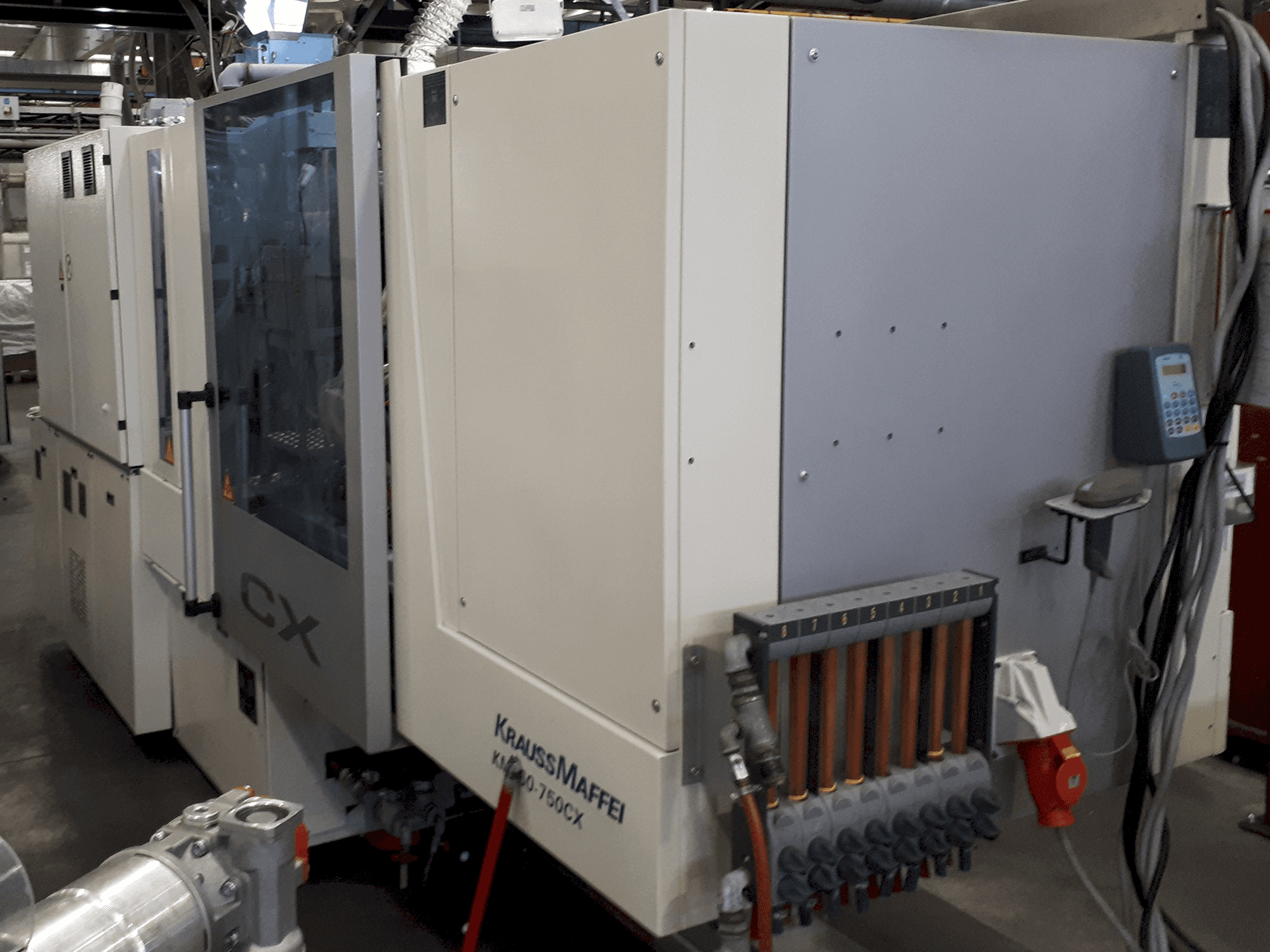

Krauss Maffei 160-750 CX Injection Moulding Machine

Show in original language

This Krauss Maffei 160-750 CX Injection Moulding Machine was manufactured in the year 2006 and has a production record of 84000 working hours. Equipped with a Krauss Maffei MC 5 Control unit, this machine has a clamping force of 1600 kN and presents good conditions.

Overview

brand: Krauss Maffei
year: 2006
MODEL: 160-750 CX
production hours: 84000
application type: Injection Moulding
Location: Italy
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-750 CX

General Data

Measurements width: 1610 MM
Measurements height: 2200 MM
Machine weight: 6300 KG

Control Unit

Model: MC-5
CNC main language: Italian, German
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45 mm
Shot weight: 289 g/PS
Stroke volume: 318 cm3 CM³
Injection pressure: 2336 bar
Plasticizing rate max.: 29.3 g/s PS
Screw speed: 265 1/min
Heating capacity: 15,62 kW
Adjustable heating zones: 5
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 650 mm
Max open daylight: 950 mm
Distance between bars: 520x520 mm
Mould height min: 300 mm
Mould height max: 650 mm
Size of mold platens: 820x845
Ejector stroke: 150 mm
Ejector force for / back: 22,6 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
