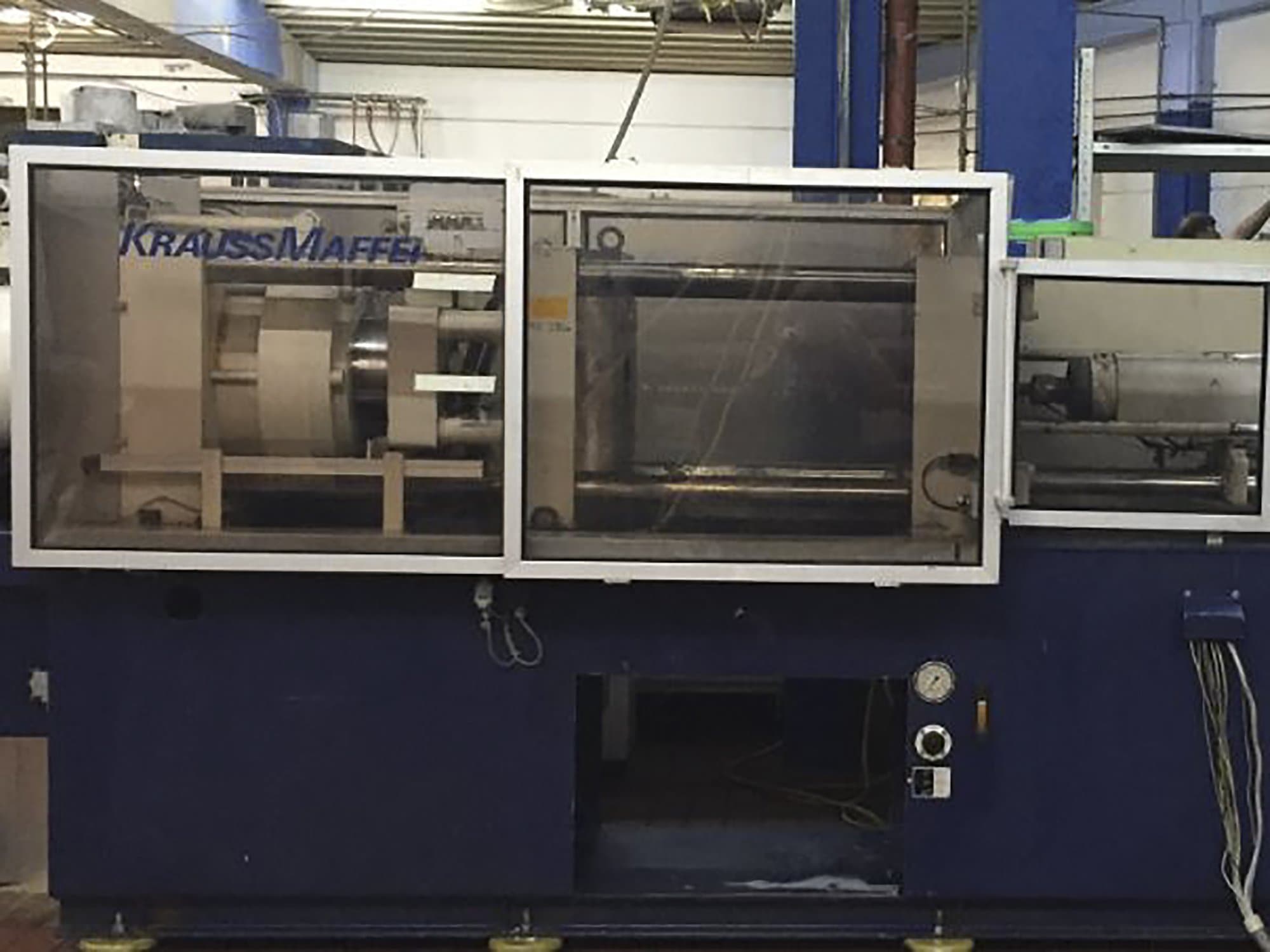

Krauss Maffei 150-620 B1 Injection Moulding Machine

Show in original language

This Krauss Maffei 150-620 B1 Injection Moulding Machine was manufactured in Germany in 1992 and is operated through a Krauss Maffei Control unit. This model offers a clamping force of 1500 kN and a maximum injection pressure of 2022 bar.

Overview

brand: Krauss Maffei
year: 1992
MODEL: 150-620 B1
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 150-620 B1

General Data

Machine weight: 7500 kg

Control Unit

Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 45/50/55 mm
Stroke volume: 305/377/456 cm3 CM³
Injection pressure: 2022/1638/1354 bar
Plasticizing rate max.: 146/180/218 cm3/s
Heating capacity: 25.1 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 1500 kN
Opening stroke: 900 mm
Distance between bars: 500x450 mm
Size of mold platens: 720x670 mm
Ejector stroke: 150 mm
Ejector force for / back: 23.5 kN

Media

Pump drive power: 22 kW
Oil tank: 550 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
