KOVOSVIT MAS MT 54 CNC Lathe

Show in original language

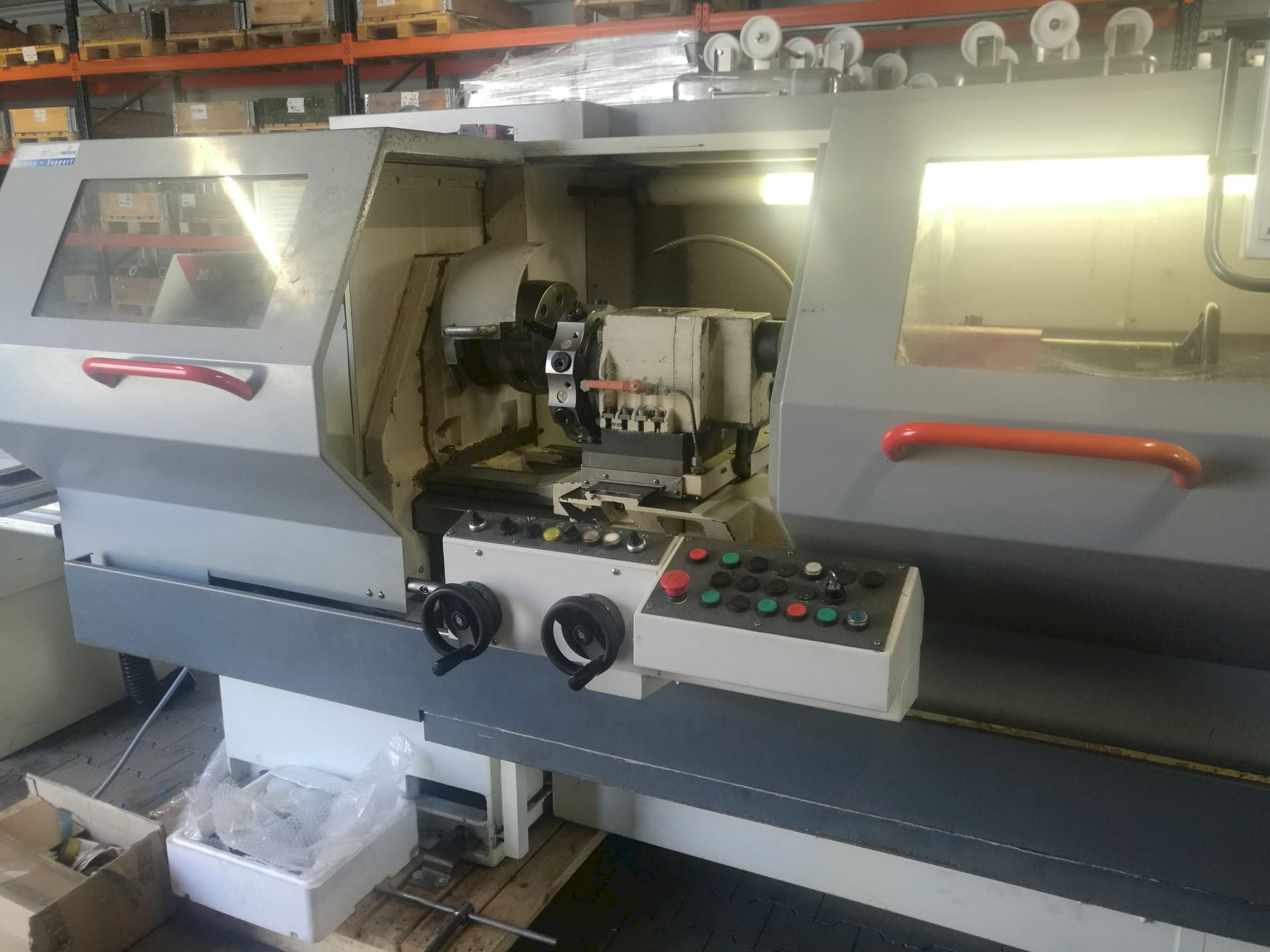

This KOVOSVIT MAS MT 54 CNC Lathe from 2005 was manufactured in Czech Republic and is controlled through a Heidenhain Control unit. This very precise machine counts with a spindle speed up to 3000 rpm. 8 pieces of toolholders are included as additional equipment.

Overview

brand: KOVOSVIT MAS
year: 2005
MODEL: MT 54 CNC
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MT 54 CNC

General Data

Measurements width: 2538 mm
Measurements depth: 3228 mm
Measurements height: 1795 mm
Machine weight: 2930 kg

Control Unit

Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3000 rpm 1/MIN
Spindle motor power: 17 kW
Spindle bore: 82 mm

Movement

X-AXIS Movement: 270 mm
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 865 mm
Z-AXIS Feed Force: 10 kN
Z-AXIS Rapid traverse: 10 m/min

Workpiece

Workpiece weight: 600 kg

Turret

Number of turrets: 8

Tail Stock

Pinol diameter: 80 mm
Pinol way: 200 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
