KOVOSVIT MAS - MCV 1270 PowerCZ-MIL-KOV-2013-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS MCV 1270 Power For sale | gindumac.com

Show in original language

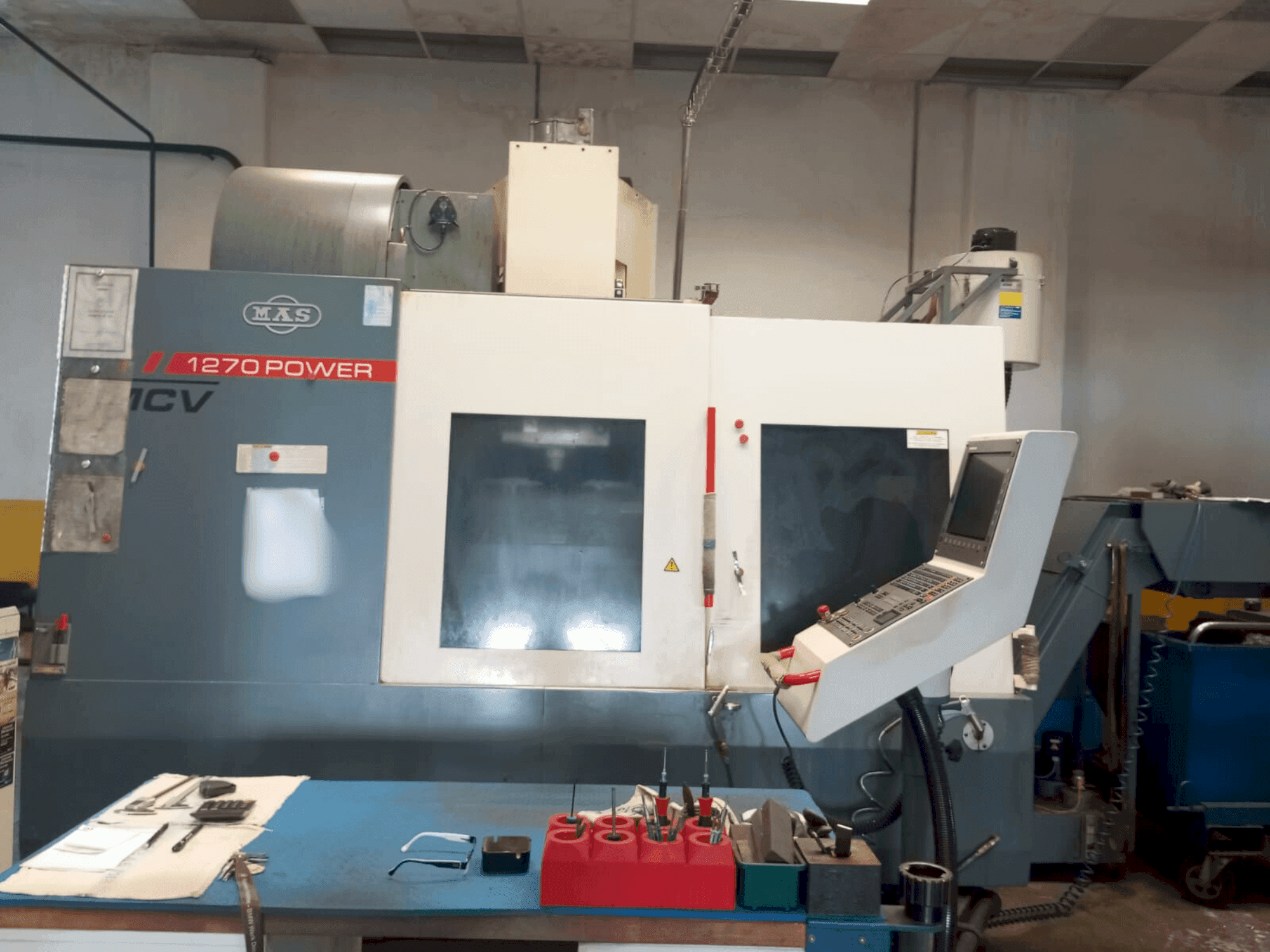

This 3-axis KOVOSVIT MAS MCV 1270 Power was manufactured in 2013. A robust vertical machining center with a table size of 1500 × 670 mm and a maximum load of 1,200 kg. Features include a spindle speed of 8000 rpm and a spindle power of 28/43 kW. Rapid feed rates reach up to 40 m/min. Ideal for heavy and precise machining tasks. For more information about this vertical machining center, please reach out to us.

Overview

brand: KOVOSVIT MAS
year: 2013
MODEL: MCV 1270 Power
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - KOVOSVIT MAS MCV 1270 Power

General Data

Machine weight: 11800 KG

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 28 / 43 kW (S1/S6-40%)
Tool taper: ISO 40
Main motor power: 40 kVA

Movement

X-AXIS Movement: 1270 mm
X-AXIS Working Feed: 1 - 40,000 mm/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 610 mm
Y-AXIS Working Feed: 1 - 40,000 mm/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 720 mm
Z-AXIS Working Feed: 1 - 40,000 mm/min
Z-AXIS Rapid traverse: 40 m/min

Table

Outer length: 1500 mm
Outer width: 670 mm
Table load: 1200 kg

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Total on hours 23961 / spindle hours 11703
Qualitative Machine Benefits:
- - Direct measuring system for high precision

Extra information

- Machine still under power // Including Probe ISO 40 TS460, external tool blowing, manual rinsing, central cooling, working space suction, status signaling, preparation for 4th axis, internal chip rinsing, chip conveyor, documentation.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
