KOVOSVIT MAS - MCV 1016 QUICKCZ-MIL-KOV-2013-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- KOVOSVIT MAS MCV 1016 QUICK

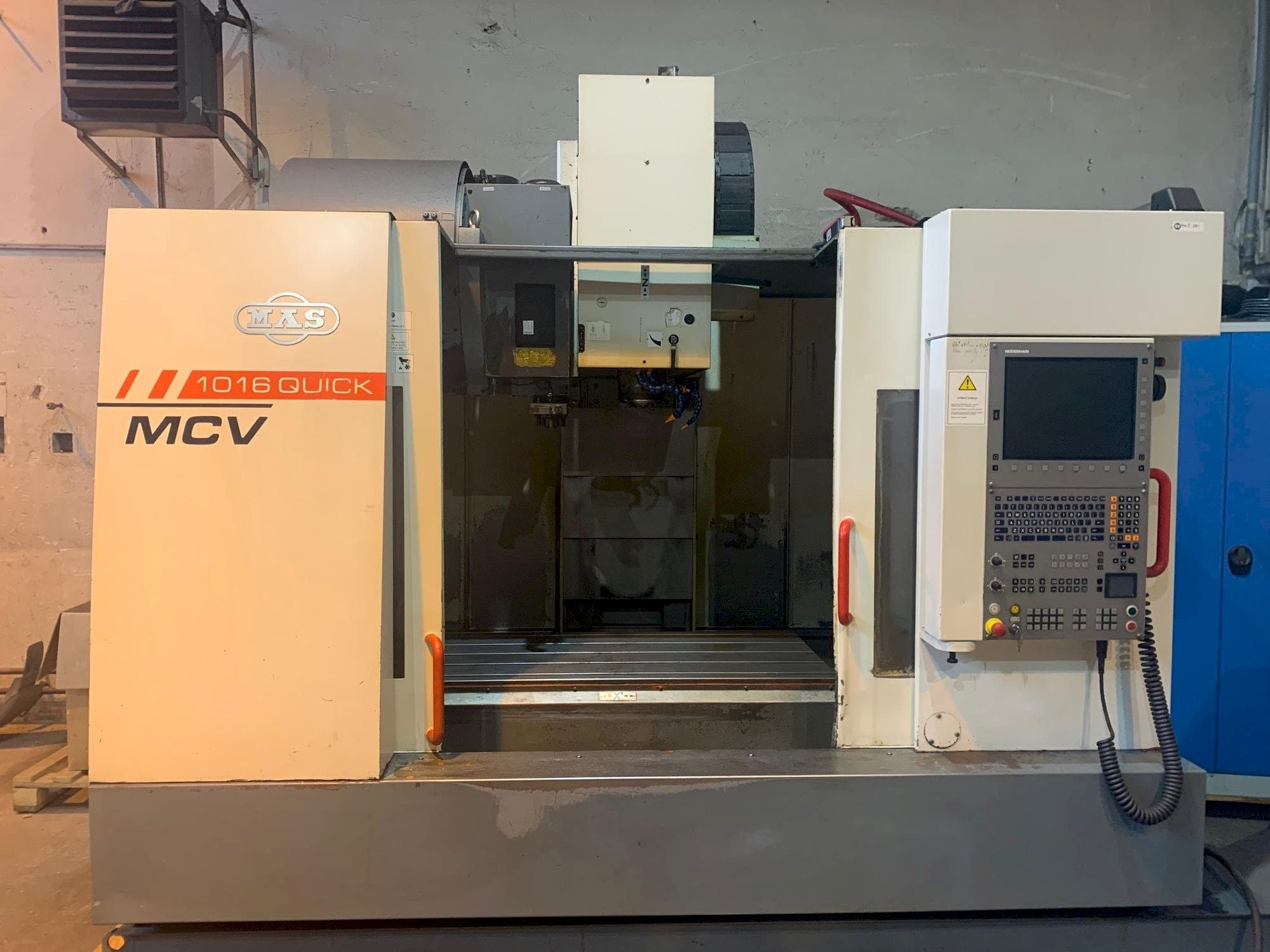

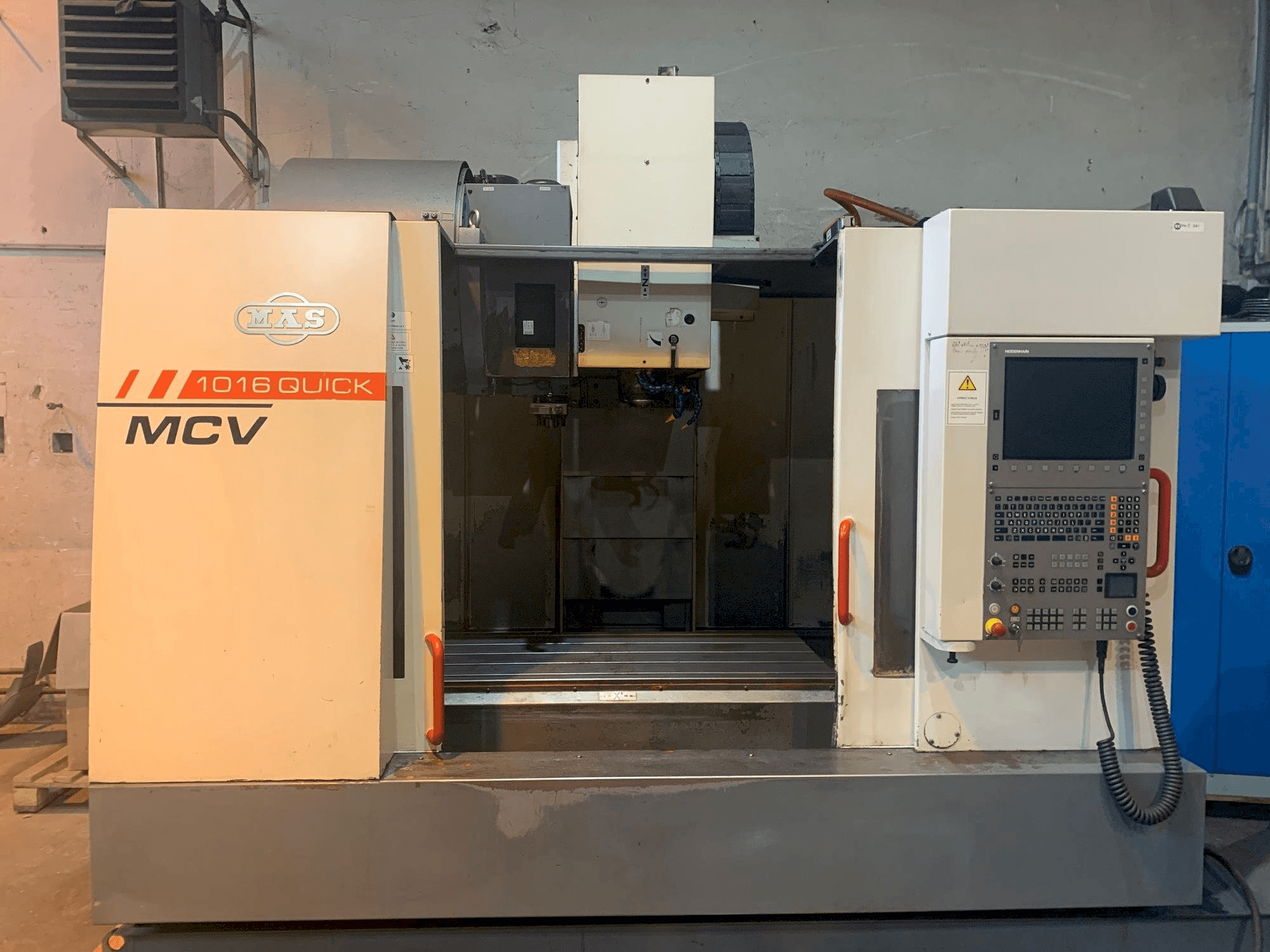

This KOVOSVIT MAS MCV 1016 QUICK Vertical Machining Center was manufactured in the year 2013 in Czech Republic. It has a working record of 20000 hours. This 3 axis machine is equipped with a HEIDENHAIN iTNC 530 HSCI control unit. It can work with a spindle speed up to 10000 rpm. A new spindle was installed in the machine in 2020. This machine presents very good conditions.
Overview
- brand: KOVOSVIT MAS
- year: 2013
- MODEL: MCV 1016 QUICK
- production hours: 20000
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - KOVOSVIT MAS MCV 1016 QUICK
General Data
- Measurements width: 3080 mm
- Measurements depth: 2700 mm
- Measurements height: 2937 mm
- Machine weight: 5500 kg
Control Unit
- Model: iTNC 530 HSCI
- Brand: HEIDENHAIN
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Spindle motor power: (S1/S6 - 40%) 17/25 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 MM
- Y-AXIS Movement: 610 MM
- Z-AXIS Movement: 710 MM
Workpiece
- Workpiece weight: 700 KG
Table
- Outer length: 1300 MM
- Outer width: 600 MM
- Number of tslots: 5
- Distance between: 125 MM
Tools
- Slots in storage: 24
- Max weight: 6.5 KG
- Max tool diameter: 75/120 MM
- Max tool length: 300 MM
- Type of tool holder: ISO 40
Media
- Power consumption: 40 KVA
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Cooling through spindle
- - Workpiece probe
- - Main motor torque (s1/s6 - 40%) 162/239 nm
- Qualitative Machine Benefits:
- - Very good condition
- - 2020 - new spindle installed
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
