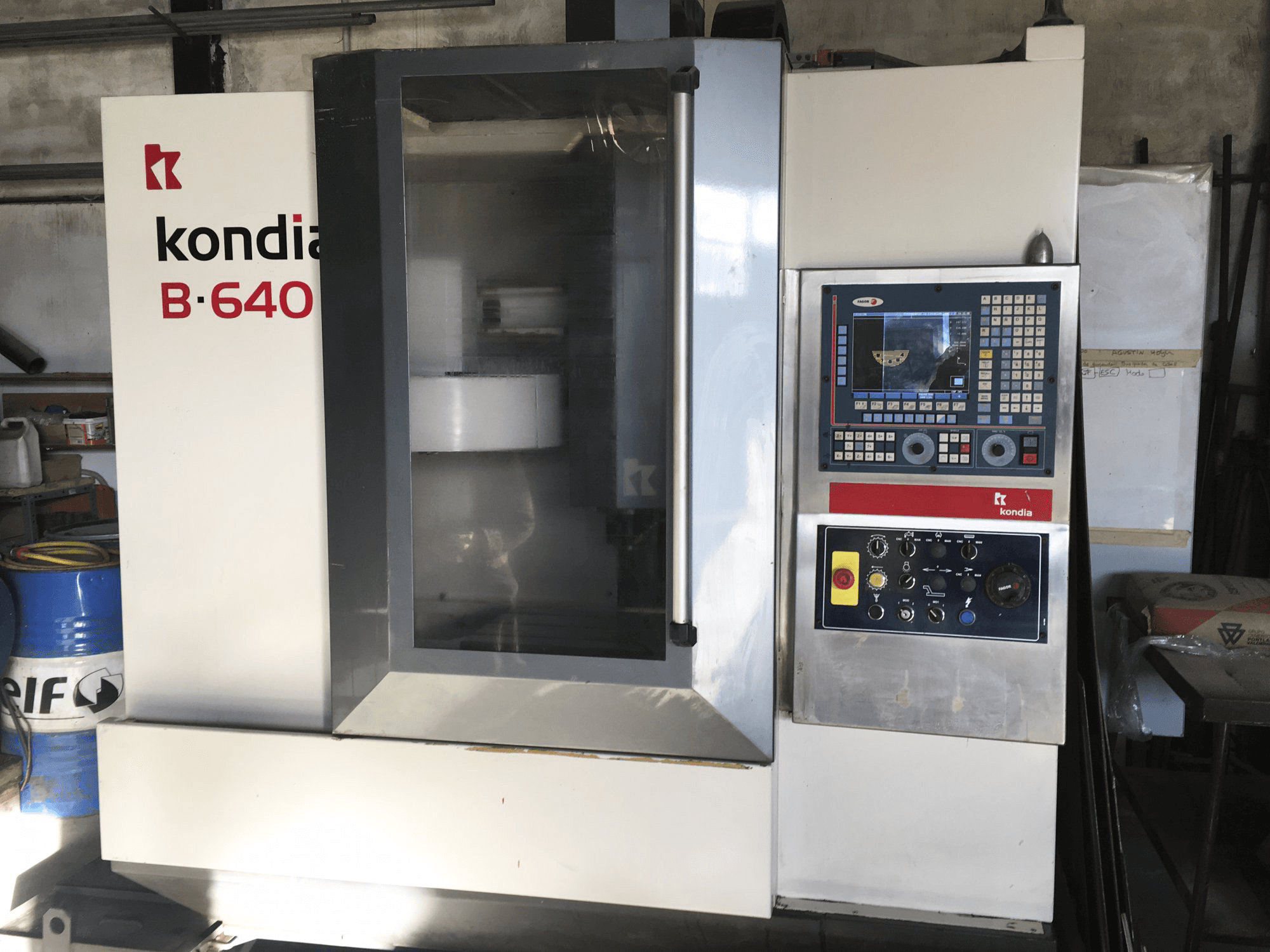

➤ Used KONDIA B-640 - 2006 - Vertical Machining Center

Show in original language

This KONDIA B-640 Machining Center from 2006 has a production record of only 708 hours, and is operated through a Fagor 8055 Control unit. Due to its low wear and perfect condition, the machine offers an especially attractive cost/quality ratio.

Overview

brand: KONDIA
year: 2006
MODEL: B-640
production hours: 708
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - KONDIA B-640

General Data

Measurements width: 2123 mm
Measurements depth: 1950 mm
Measurements height: 2875 mm
Machine weight: 4200 kg

Control Unit

Model: 8055
Remote control: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/min
Spindle motor power: 7.5 kW
Tool taper: ISO 7388

Movement

X-AXIS Movement: 600 mm
X-AXIS Working Feed: 5 m/min
X-AXIS Rapid traverse: 24 m/min
X-AXIS Accuracy: 0.001
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 5 m/min
Y-AXIS Rapid traverse: 24 m/min
Y-AXIS Accuracy: 0.001
Z-AXIS Movement: 150 mm
Z-AXIS Working Feed: 5 m/min
Z-AXIS Rapid traverse: 20 m/min
Z-AXIS Accuracy: 0.001

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 800 mm
Outer width: 400 mm
TSlots size: 18 mm
Number of tslots: 3
Distance between: 125 mm

Turret

Max tool length: 250 mm
Number of tool slots: 20
Rotating tools: Yes

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 19 kVA
Air pressure: 6 bar
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
