➤ Used KONDIA B-1050 For sale | gindumac.com

Show in original language

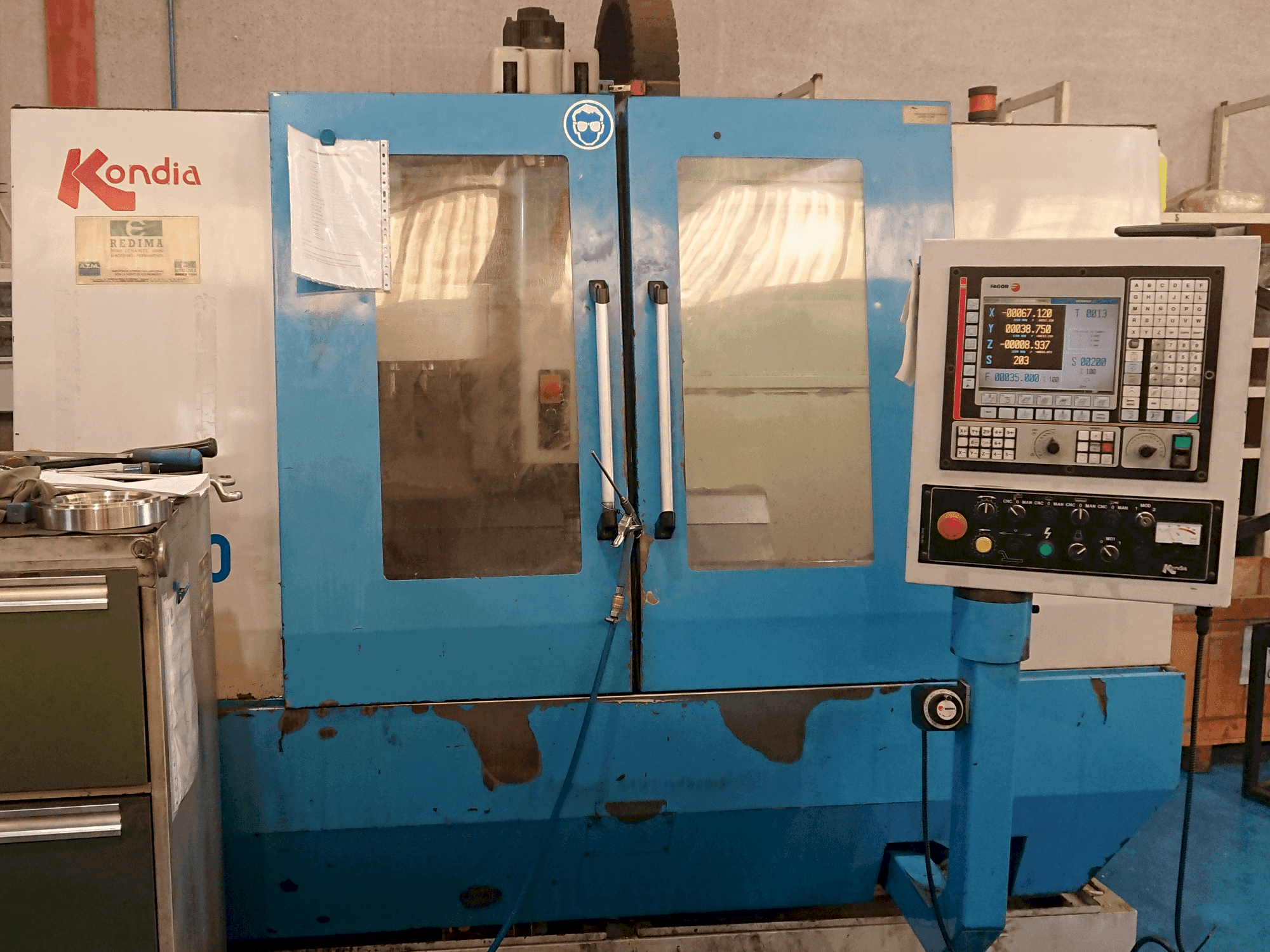

This 3-axis KONDIA B-1050 vertical machining centre was manufactured in 2000. It features a robust table with dimensions of 1200 x 500 mm and can handle a maximum weight of 450 kgs. Equipped with a high-speed spindle up to 6,000 r.p.m. and a 22-tool automatic changer, it ensures efficient operation. Rapid feeds reach up to 25,000 mm/min on X-Y axes. Ideal for precision machining, buy this KONDia B-1050 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

brand: KONDIA
year: 2000
MODEL: B-1050
application type: Milling
Location: Spain
machine type: Machining centers (vertical)
availability: Immediately

Technical Information - KONDIA B-1050

General Data

Measurements height: 2870 mm
Machine weight: 5000 kg

Main drive

Number of spindles: 1
Spindle speed range: 100-6000 rpm 1/MIN
Spindle motor power: 7.5 kW
Tool taper: Size 40
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1200 mm
Outer width: 500 mm

Additional Equipment

- Spindle head cooling system.
- Tool cooling system.
- Automatic Tool Changer with 22 tool positions.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions: 1200 x 500 mm.
- - Maximum recommended weight on the table: 450 kgs.
- - Floor space occupied: 2450 x 2342 mm.
- - High rapid feed rates, high accuracy
Qualitative Machine Benefits:
- - High resolution for precise machining

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
