KNUTH X-Mill 1500 CNC Milling Machine

Show in original language

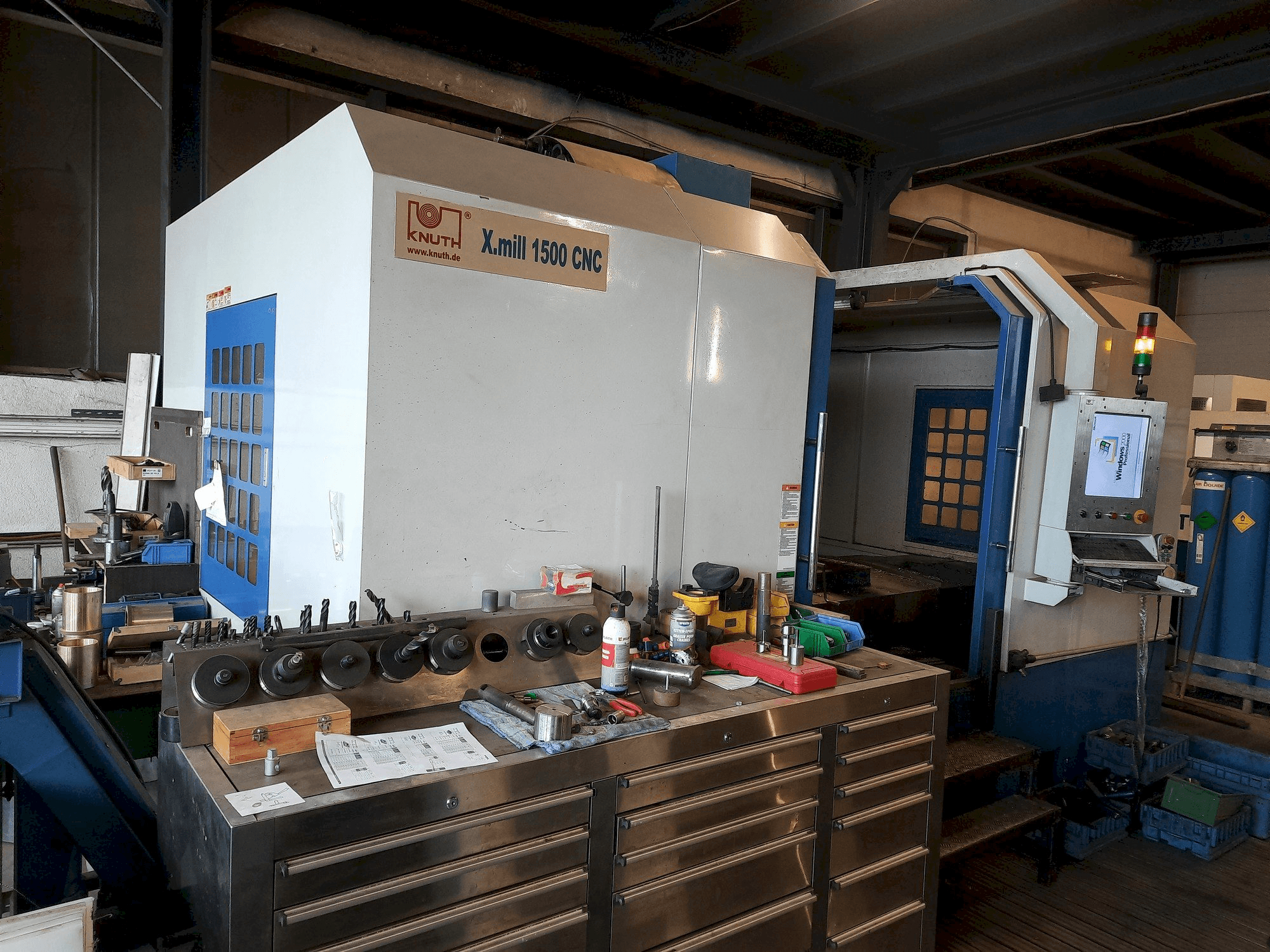

This KNUTH X-Mill 1500 CNC Milling Machine was manufactured in 2011 in Germany. It is equipped with a Knutz GPlus 450 control unit and has 3 axis. This machine has a spindle speed range of 60 - 8000 rpm.

Overview

brand: KNUTH
year: 2011
MODEL: X-Mill 1500 CNC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - KNUTH X-Mill 1500 CNC

General Data

Measurements width: 4270 mm
Measurements depth: 3413 mm
Measurements height: 3067 mm
Machine weight: 14000 kg

Control Unit

Model: GPlus 450

Main drive

Number of spindles: 1
Spindle speed range: 60 - 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1700 mm
Outer width: 800 mm
Table load: 1500 kg

Tools

Type of tool holder: BT 50

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slots: 5 x 22 x 135 mm
- - Spindle nose table distance: 170 - 870 mm
- - Discharge: 800 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Knuth X-Mill 1500 CNC technische Daten Preis.pdf
