Kia - Super Turn 21 LMSSI-TUR-KIA-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

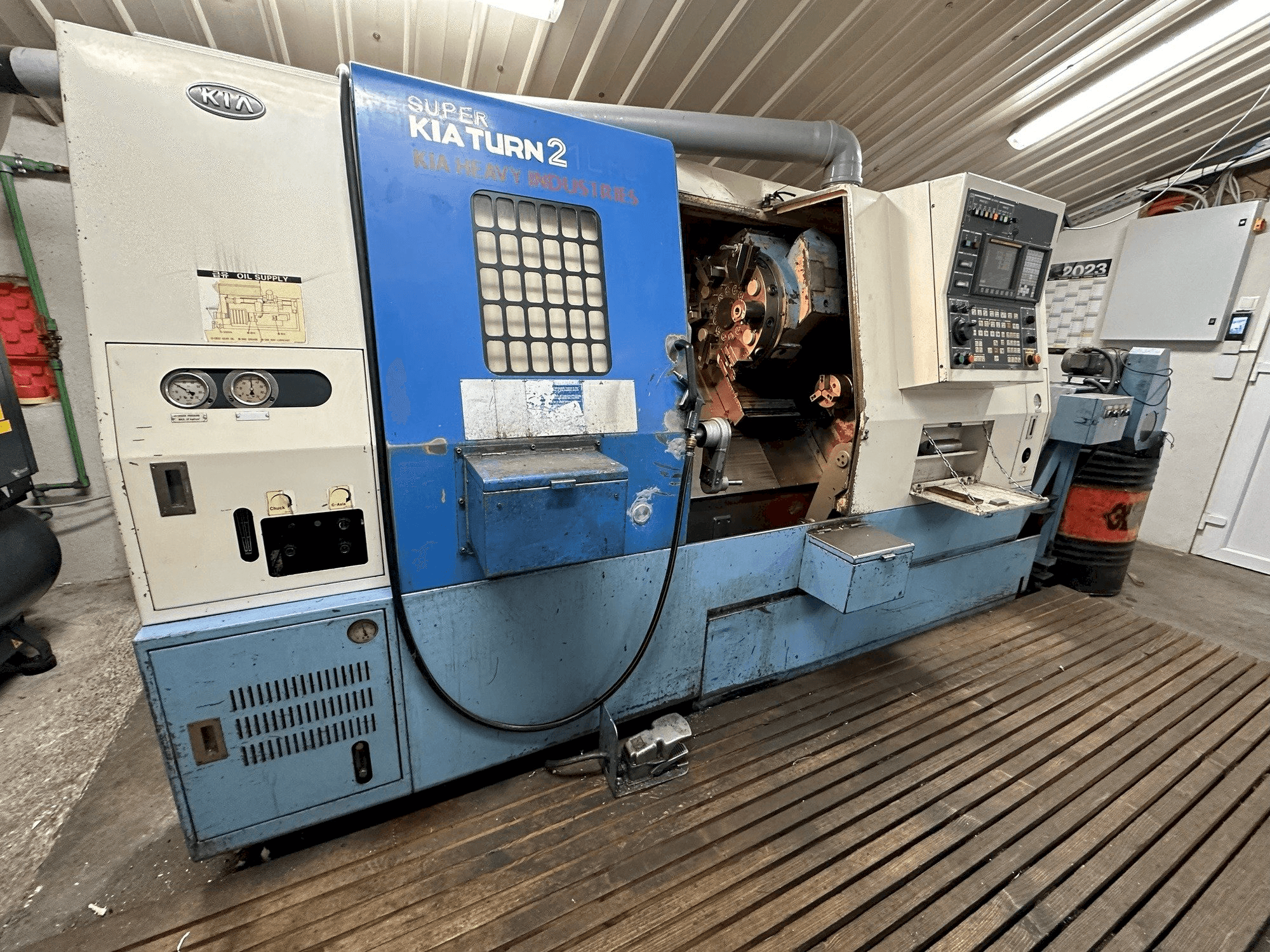

Kia Super Turn 21 LMS Lathe

Show in original language

This Kia Super Turn 21 LMS Lathe was manufactured in the year 2003 in Korea. It is equipped with a Fanuc Series Oi-T control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: Kia
year: 2003
MODEL: Super Turn 21 LMS
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Kia Super Turn 21 LMS

General Data

Measurements width: 2200 mm
Measurements depth: 3900 mm
Measurements height: 2200 mm
Machine weight: 7000 kg

Control Unit

Model: Series Oi-T
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 210 mm
Z-AXIS Movement: 980 mm
C-AXIS Movement: 360° MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning Ø 550 mm
- - Spindle bore 51 mm
- - Atc / turret 12
- - Speed live tools 4000 rpm
- - Bar diameter 5-65mm
- - Bar capacity 65mm/10 pcs
- - Bar length max 1. 2m, 1. 5m, 1. 8m depending on machine spindle length
- - Machine weight 265kgs, 280kgs, 330 kgs
- - Air pressure 6 kg / cm2 70psi
- - Power consumption 575w, power supply 220v
Qualitative Machine Benefits:
- - Driven tools, material feeder, and an additional turning head are included.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
