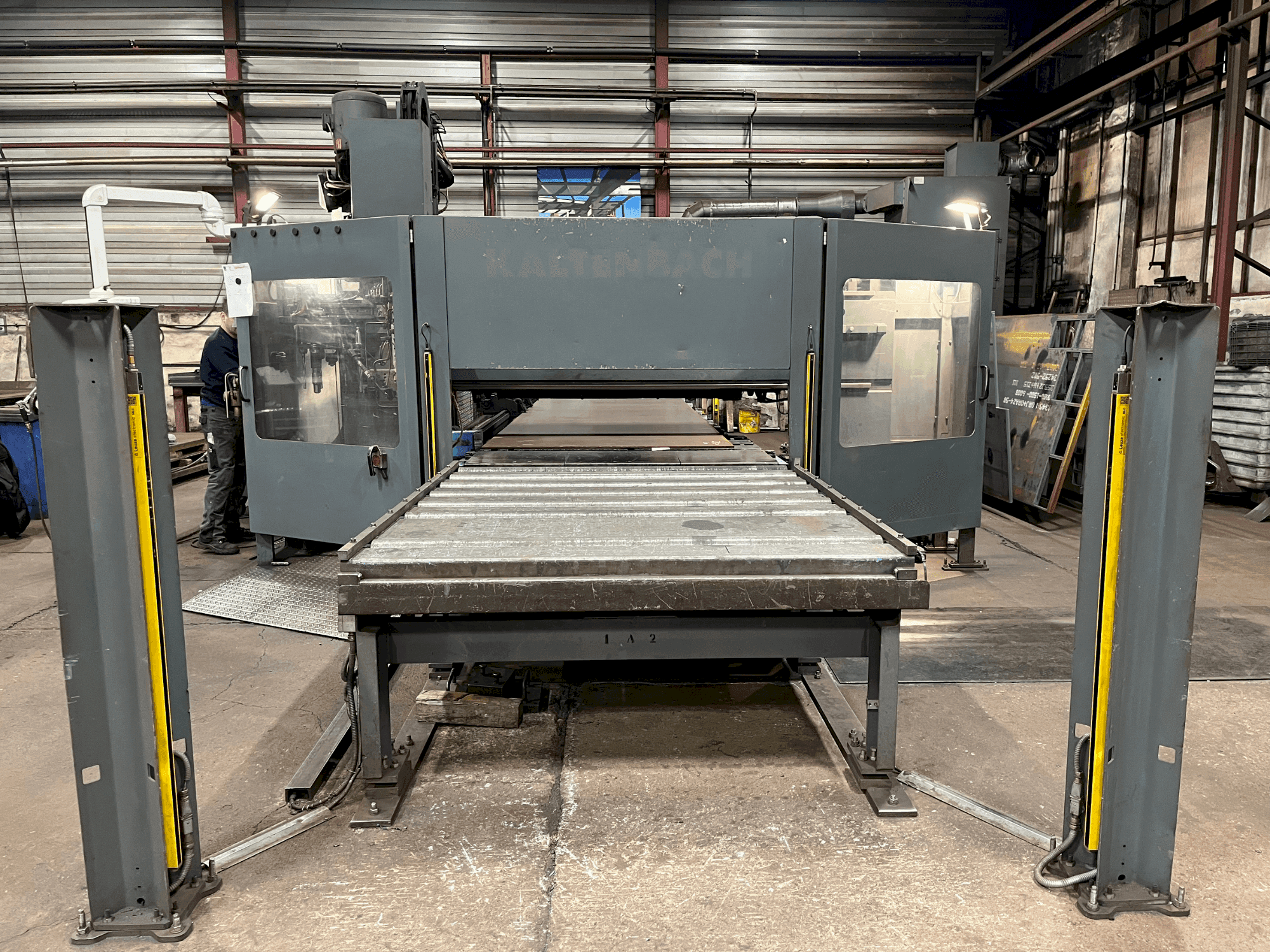

Kaltenbach KF 1606 Flat and Plate Processing System

Show in original language

This Kaltenbach KF 1606 Flat and Plate Processing System, for drilling and flame cutting of flat steel and sheet metal, was manfactured in the year 2008 in Germany. It comes with a bore diameter of 6 - 40 mm, a floor-plate width of 1.600 mm and a floor-plate length of 6.000 mm. The max. workpiece weight is 5000 kg and sheet metal can be processed from 6 to 60 mm thickness. The boring spindle runs with 150 - 2000 rpm and has 26 kW drive. In addition the machine has an automated tool changer with 6 magazin slots. With the transport system featuring feed and outfeed roller conveyors sheet metal lenght up to 6000 mm can be fed and up to 2000 mm can be outfed. Next to the standard equipment the machine comes with several extra options: Contour Marking, Tear plate processing, Plasma cutting system Kjellberg Hi Focus 280i and a Dedusting system for the plasma cutting system See original equipment list as PDF (German) attached.

Overview

brand: KALTENBACH
year: 2008
MODEL: KF 1606
application type: Other Machine Tools
Location: Germany
machine type: Drilling Machine (Metal)
availability: Sold

Technical Information - KALTENBACH KF 1606

General Data

Measurements width: 15000 mm
Measurements depth: 5900 mm
Measurements height: 2900 mm
Machine weight: 10000 kg

Media

Main electronic connection: 400/50 V/Hz

Additional Equipment

- Automatic tool change Magazine 6 places
- Material transport and length measurement with hydraulic collet: Clamping force 14000 N
- Compressed air connection 8 bar
- Drive power drilling drive 26 kW
- Hydraulic unit 4 kW
- Feed roller conveyor for sheet lengths up to max. 6000 mm
- Outfeed roller conveyors for sheet lengths up to max. 2000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sheet width 220 - 160 mm
- - Sheet length 500 - 6000 mm
- - Sheet thickness 6-60 mm
- - Unit weight max. 5000 kg
- - Prefabricated sheet metal parts: min. 130 x 130 mm / max. 1600 x 2000 mm
- - Vertical drilling unit (y-axis)
- - Drilling diameter 6-40 mm
- - Spindle speeds 150 - 2000 rpm
- - Rapid feed/rapid return 0-2000 mm/min // drilling spindle feed 0-2000 mm/min // drill spindle positioning rapid traverse 24000 mm/min
- - Automatic tool change magazine 6 places
Qualitative Machine Benefits:
- - Working height above floor 800 mm

Extra information

- Availability from August

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Kaltenbach KF 1606 (2008) - Tech Specs (GERMAN).pdf
