- JOBS JoMach 243 Milling Machine

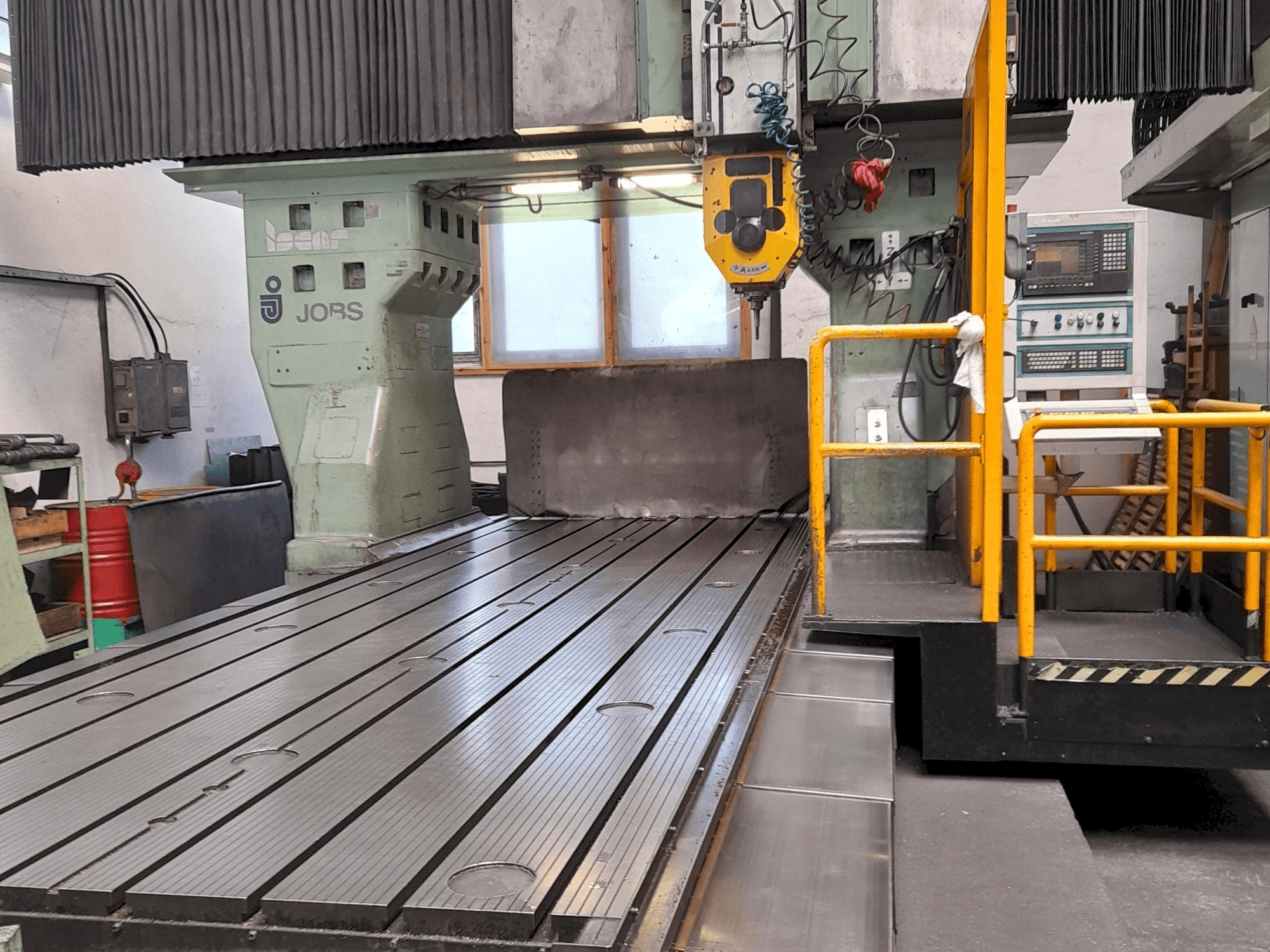

This JOBS JoMach 243 Milling Machine was manufactured in Italy in 1999. It is operated through a Siemens Sinumerik 840 D control unit. This 5 axis machine can work with a spindle speed range 15-4000 rpm. The twist head was reconditioned in 2007.
Overview
- brand: JOBS
- year: 1999
- MODEL: JoMach 243
- application type: Milling
- Location: Czech Republic
- machine type: Gantry Milling Machine
- availability: Sold
- control unit brand: Siemens
Technical Information - JOBS JoMach 243
General Data
- Machine weight: 45050 kg
Control Unit
- Brand: Siemens
- Model: Sinumerik 840 D
Main drive
- Number of spindles: 1
- Spindle speed range: 15 - 4000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 4500 mm
- Y-AXIS Movement: 2700 mm
- Z-AXIS Movement: 1000 mm
Table
- Outer length: 6500 mm
- Outer width: 2000 mm
- Number of tslots: 8
- Distance between: 250 mm
- Table load: 10000 kg/m2
Additional Information
- Technical Machine Benefits:
- - Distance between columns 2320 mm
- - Distance between cross-rail and table 1635 mm
- - Max. Table load
- - Feedrate x/y axis 16. 000 mm/min
- - Feedrate z axis 12. 000 mm/min
- - Auxiliary electrospindle 200-16000 rpm
- - Main motor power 39 kw
- - Continuous indexing twist head: c axis 360 deg. , a axis +/- 110 degree
- Qualitative Machine Benefits:
- - In good condition, regularly maintained.
- - Twist head reconditioned in 2007
- - 5 axis milling machine
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
