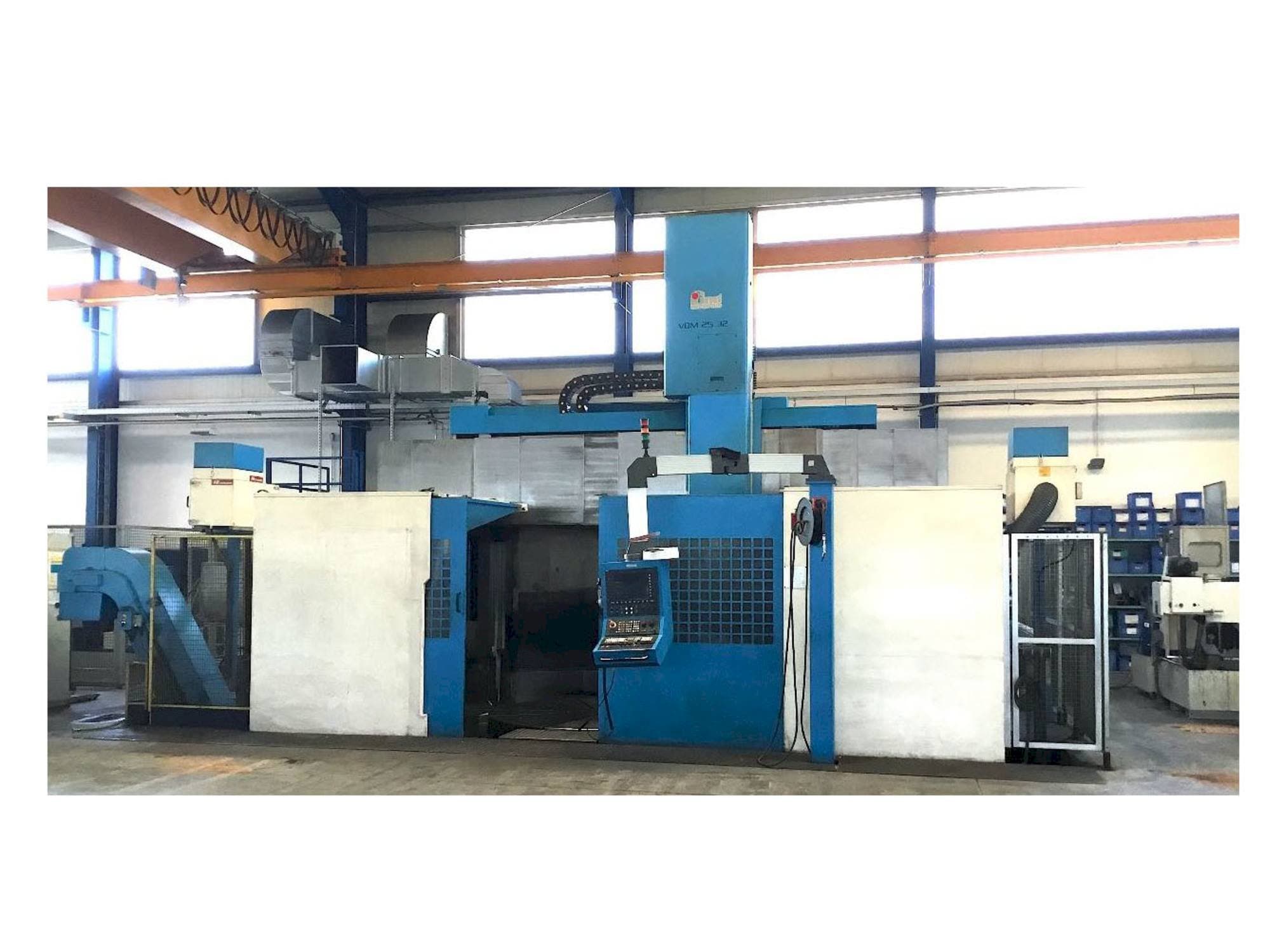

This imt VBM 25.32 lathe was manufactured in 2009. This machine is operated through a SIEMENS SINUMERIK 840D control unit. It works with a spindle speed up to 3000 rpm and a turning diameter 3200 mm. This machine is in good condition, on average 1-shift operation. It includes several tools as a HD pump 15 bar and a belt filter.

Overview

brand: imt
year: 2009
MODEL: VBM 25.32
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - imt VBM 25.32

General Data

Machine weight: 58000 KG

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 3000 1/MIN
Spindle motor power: 28 kW
Tool taper: ISO 50

Workpiece

Workpiece weight: 25000 KG

Media

Chip conveyor: Yes

Additional Equipment

- belt filter
- Cooling unit make Kelwin
- hydraulic unit
- Control cabinet
- Cabin
- Safety fence system
- Angle milling head
- Coolant system
- Oil mist extraction

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning diameter up to 3200 mm
- - Face plate diameter 2500mm
- - Max. Passage 3250 mm
- - Workpiece height max. 2000mm with standard tooling
- - Speed face plate: 150 rpm
- - Traversing beam 1200mm
- - Chain magazine with 20 magazine places for 24 tools, 6 of which are hirth units; milling spindle
- - Hd pump 15 bar
- - 9 steel holders
- - Infrared measuring probe; 2 speed levels;
Qualitative Machine Benefits:
- - Good condition: on average 1-shift operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
