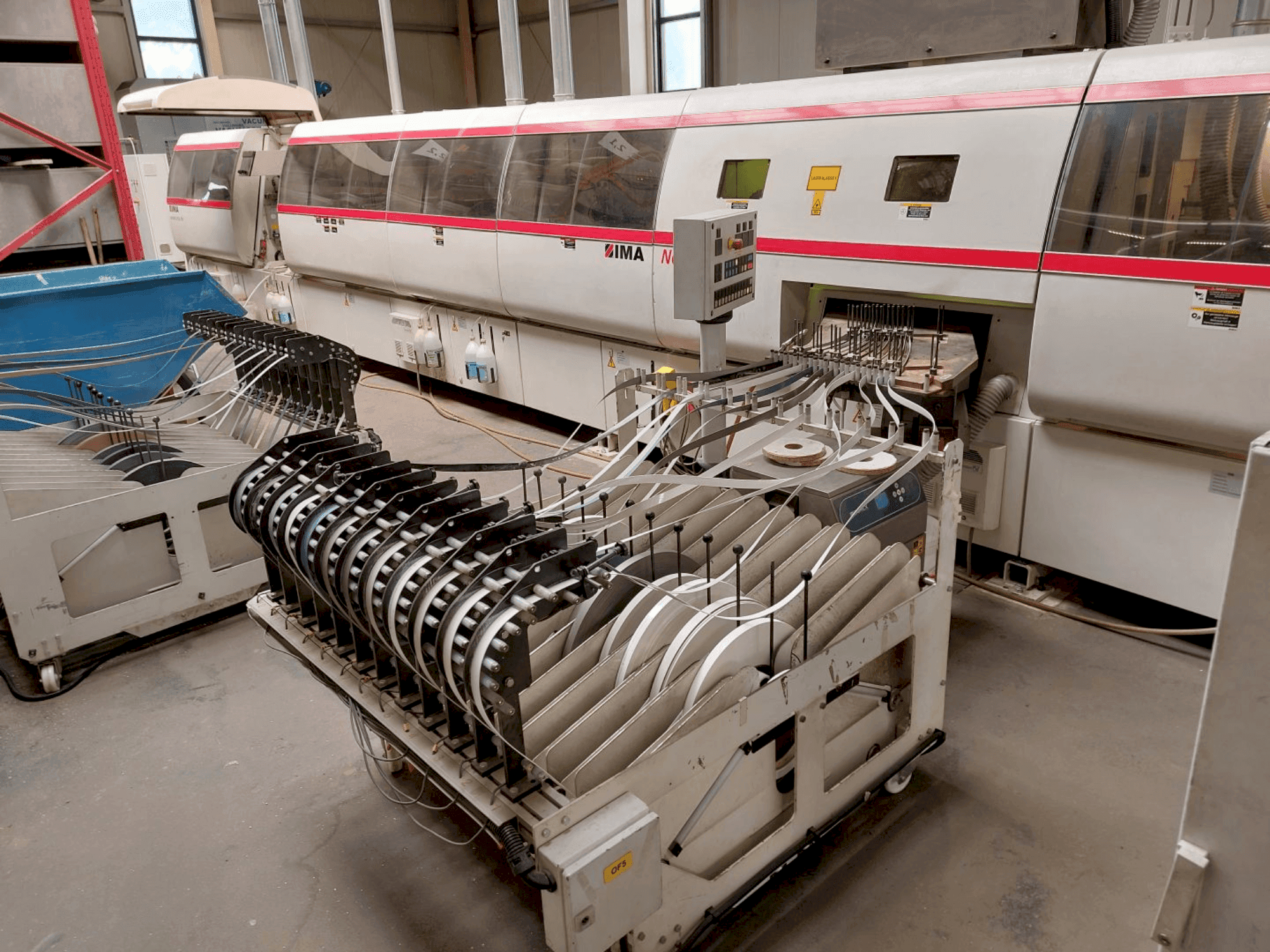

IMA - Novimat Systems/I/G80/1000DE-WOO-IMA-2011-00001

Additional Equipment

• - Adjustable Axis for Infeed Fence
• - Feeding Device
• - Format Processing Unit for Rough Milling
• - Format Processing Unit for Finish Milling (2 Motors, Forward/Reverse)
• - Gluing Unit VTG (Equipped with Diode Laser)
• - End Trimming Unit 08.42 (2 Motors)
• - Milling/Chamfering Units (2 Motors, Top/Bottom)
• - Multi-Processing Units 08.355 - 08.355
• - Scraper Unit
• - Buffing Unit

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Single edge banding machine
  • - Configuration: left-hand machine
  • - Feed rate: 6-30 m/min
  • - Versatile edge banding capabilities for a wide range of workpiece sizes and materials, including chipboard and mdf.
  • - Advanced processing units for both rough and finish milling ensure high-quality edge finishes.
  • - The gluing unit equipped with a diode laser provides precise and efficient adhesive application.
  • - Workpiece specifications: minimum length: 150 mm, width: 150 - 2000 mm, thickness: 10 - 50 mm, maximum weight: 50 kg.
  • - Edge material specifications: roll material: 0. 8 - 3 mm, edge height: 22 - 54 mm, minimum edge length: 250 mm.
• Qualitative Machine Benefits:
  • - High precision and consistency in edge banding due to advanced milling and gluing technology.
  • - Enhanced finishing capabilities with integrated scraper and buffing units for superior surface quality.

Extra information

• - The technical data and descriptions provided are based on the original order confirmation and are intended for informational purposes only.
