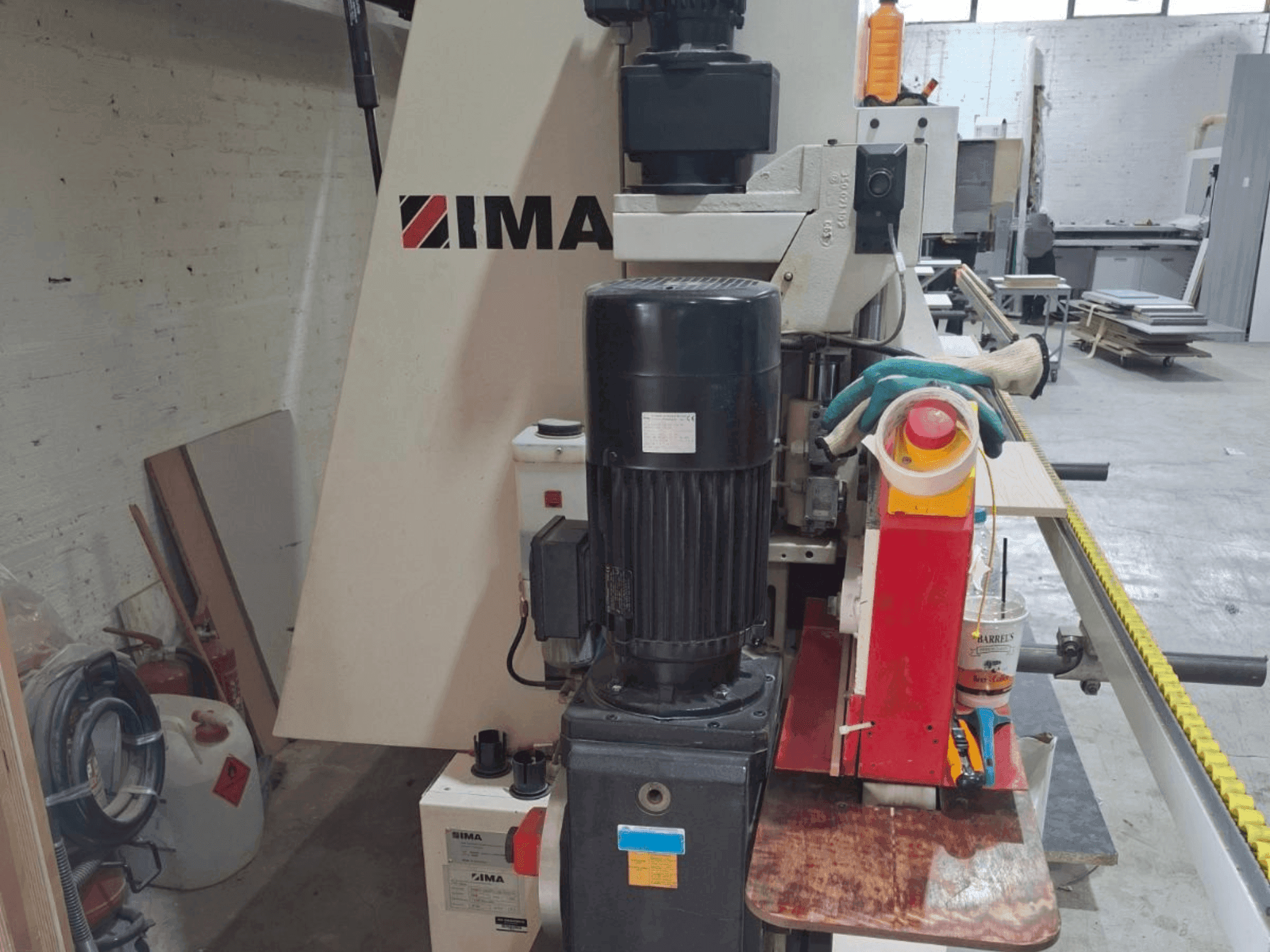

IMA - NOVIMAT CONCEPT I /G80/5325/L20GR-EDG-IMA-2005-00001

Additional Equipment

• - Top Pressure by Belt: Yes/V-Belt
• - Continuously Variable Feed: Yes
• - Electromotoric Height Adjustment: Yes
• - Suitable for PUR Glue: Yes
• - Magazine for Single Strips: Yes
• - Spraying Device: Yes
• - Premilling Unit: Yes
• - Preheating Zone: Yes
• - Flush/Radius/Chamfer Milling Units: 2
• - Corner Rounding Unit: 2 motors

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece width min: 65mm
  • - Workpiece length min: 150mm
  • - Feedrate max: 30m/min
  • - Total connection: 39kw
  • - Places in coil magazine: 2
  • - Edgeband thickness max: 20mm
  • - Panel thickness max: 60mm
  • - Thickness of coiled edgeband max: 3mm
  • - Notice: two years ago, the top pressure belt (v-belt) and pads were replaced. All cutters have been replaced with diamonds.

Extra information

• - Additional Equipment IMA Universal Milling: Yes Scraper Unit: Profile/Flat Scraper Buffing Unit: Yes Edge Sanding: Yes Edge Sanding Aggregate: 1 Type: Right-side machine IMA Corner Rounding Unit MFA 08.342 Multiple Machine Aggregate: Yes
