Hyundai Wia L 230LMSA Lathe

Show in original language

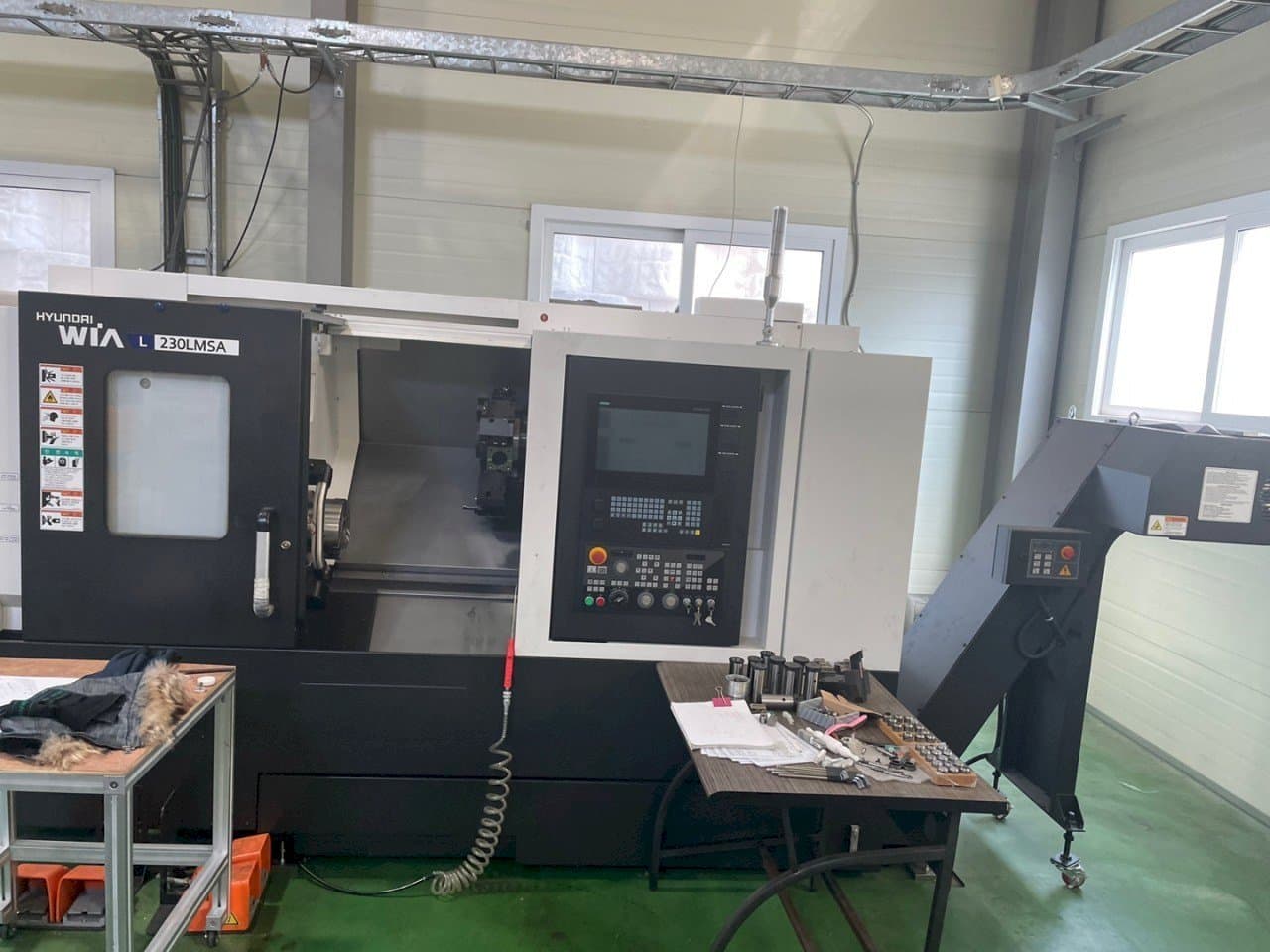

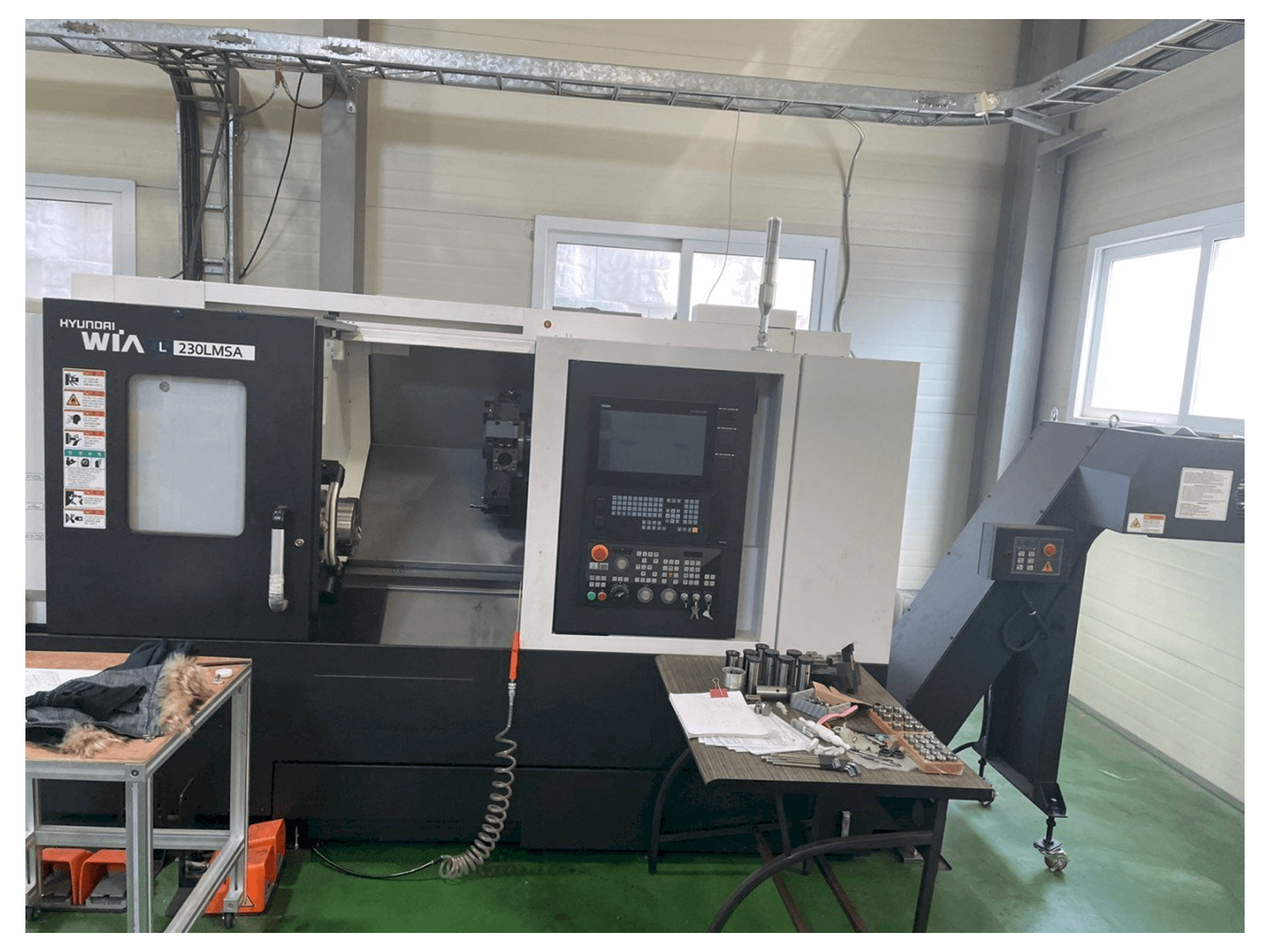

This Hyundai Wia L 230LMSA Lathe machine was manufactured in the year 2020. This machine is operated by a SIEMENS control unit. It works with the main spindle speed up to 4000 rpm and sub spindle speed up to 5000 rpm. The machine also works with live tools 2 Angular and 2 Straight. 2 units are available.

Overview

brand: Hyundai Wia
year: 2020
MODEL: L 230LMSA
application type: Turning
Location: South Korea
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Hyundai Wia L 230LMSA

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 220 mm
Z-AXIS Movement: 560 mm

Media

Main electronic connection: 380V, 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Zb axis : 590 mm
- - C1 & c2 axis : 0. 001 degree
- - Swing over bed : 600 mm
- - Maximum turning length : 520 mm
- - Bar capacity : 65 mm
- - Main chuck size : 8 inch
- - Sub chuck size : 6 inch
- - Turret capacity : 12ea (bmt55 type)
- - Live tools (2 angular, 2 straight)
- - Spindle belt type
Qualitative Machine Benefits:
- - Main spindle rpm: 4,000
- - Sub spindle rpm: 5,000
- - Q-setter chip conveyer
- - Chip bucket call right (led 3 step)
- - Mpg handle
- - Manual books
- - Ce mark

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
