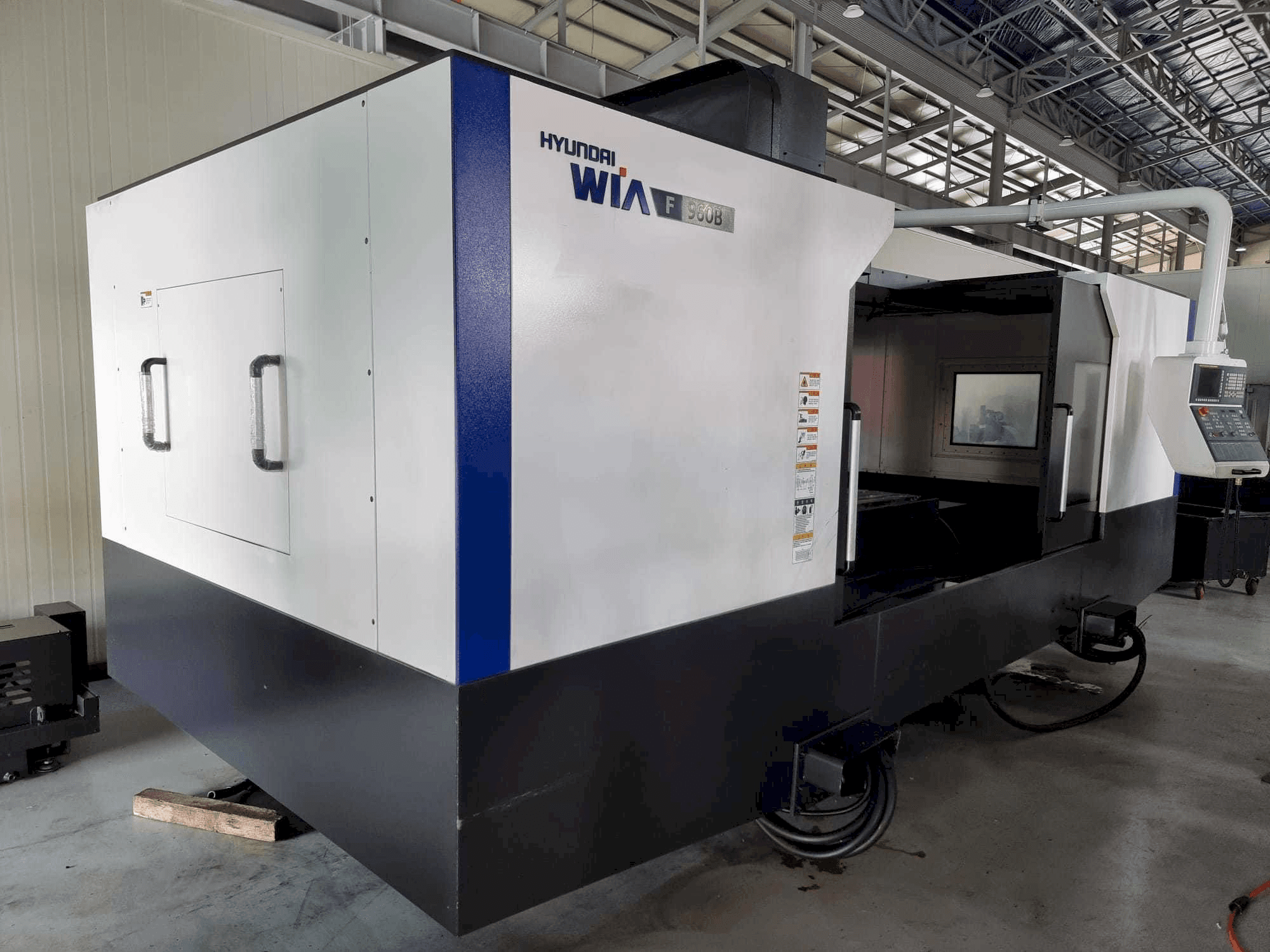

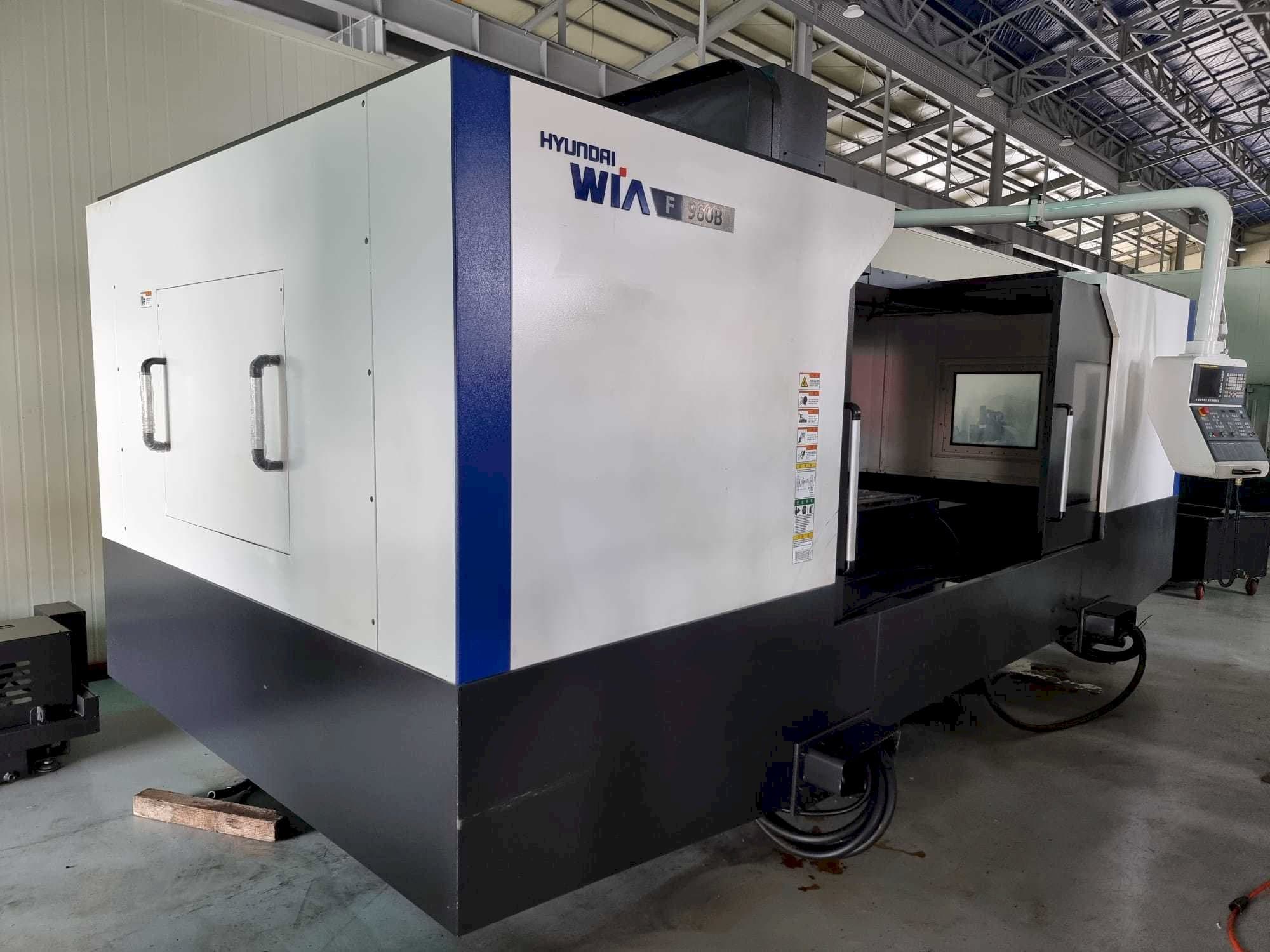

Hyundai Wia F960B Vertical Machine Center

Show in original language

This Hyundai Wia F960B Vertical Machine Center was built in 2019. It is operated through a Fanuc i Series control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Hyundai Wia
year: 2019
MODEL: F960B
application type: Milling
Location: South Korea
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia F960B

General Data

Measurements width: 6100 mm
Measurements depth: 4425 mm
Measurements height: 3647 mm
Machine weight: 23500 mm KG

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 22/18.5 kw
Number of axis: 3

Movement

X-AXIS Movement: 2450 mm
X-AXIS Rapid traverse: 16 m/min
Y-AXIS Movement: 960 mm
Y-AXIS Rapid traverse: 16 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 2700 mm
Outer width: 950 mm
Table load: 4500 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle cooling system
- - Atc extension: 20
- - Tool shank type: bbt50
- - Pull stud: 45°
- - Coolant tank: 690l
- - Interior screw chip conveyor
- - Remote mpg
- - Distance from table top to sp. Nose: 200 - 1050 mm
- - Max. Tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

F960B(en).pdf
