HWACHEON HI-TECH 450AL YMC Lathe

Show in original language

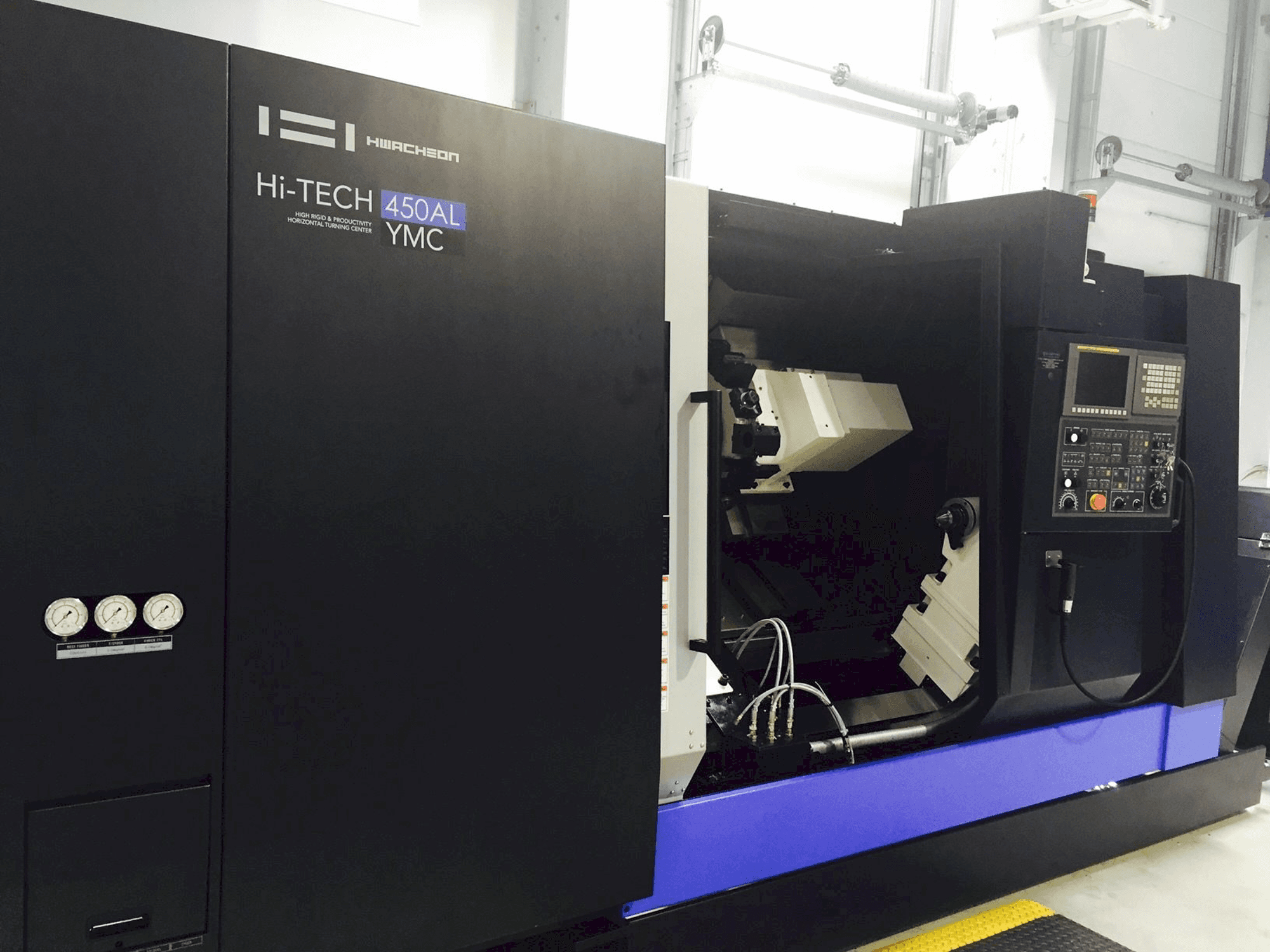

This HWACHEON HI-TECH 450AL YMC Lathe was manufactured in the year 2014 in South Korea. It has been working for only for 9372 hours. It is operated through a Fanuc 0i-TD control unit. This machine can work with a spindle speed range up to 3500 rpm. It presents very good conditions.

Overview

brand: HWACHEON
year: 2014
MODEL: HI-TECH 450AL YMC
production hours: 9372
application type: Turning
Location: Slovakia
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON HI-TECH 450AL YMC

General Data

Measurements width: 4100 mm
Measurements depth: 2045 mm
Measurements height: 1875 mm
Machine weight: 7800 kg

Control Unit

Brand: FANUC
Model: 0i-TD

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN

Movement

X-AXIS Movement: 280 mm
Y-AXIS Movement: 120 (+/- 60) MM
Z-AXIS Movement: 1390 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Max tool diameter: 50 mm

Media

Power consumption: 50 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 420 mm
- - Standard turning diameter 254 mm
- - Max. Turning length 1227 mm
- - Chuck size 10''
- - Spindle bore diameter 90 mm
- - Spindle motor (30 min. /100%) 22/18. 5 kw
- - Live tools power 3. 7/2. 2 kw, 5000 rpm
- - Tailstock stroke 1350 mm, quill dia. 100 mm, quill stroke 120 mm
- - Steady-rest ready
- - Tool probe & set of tool holders
Qualitative Machine Benefits:
- - Very good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
