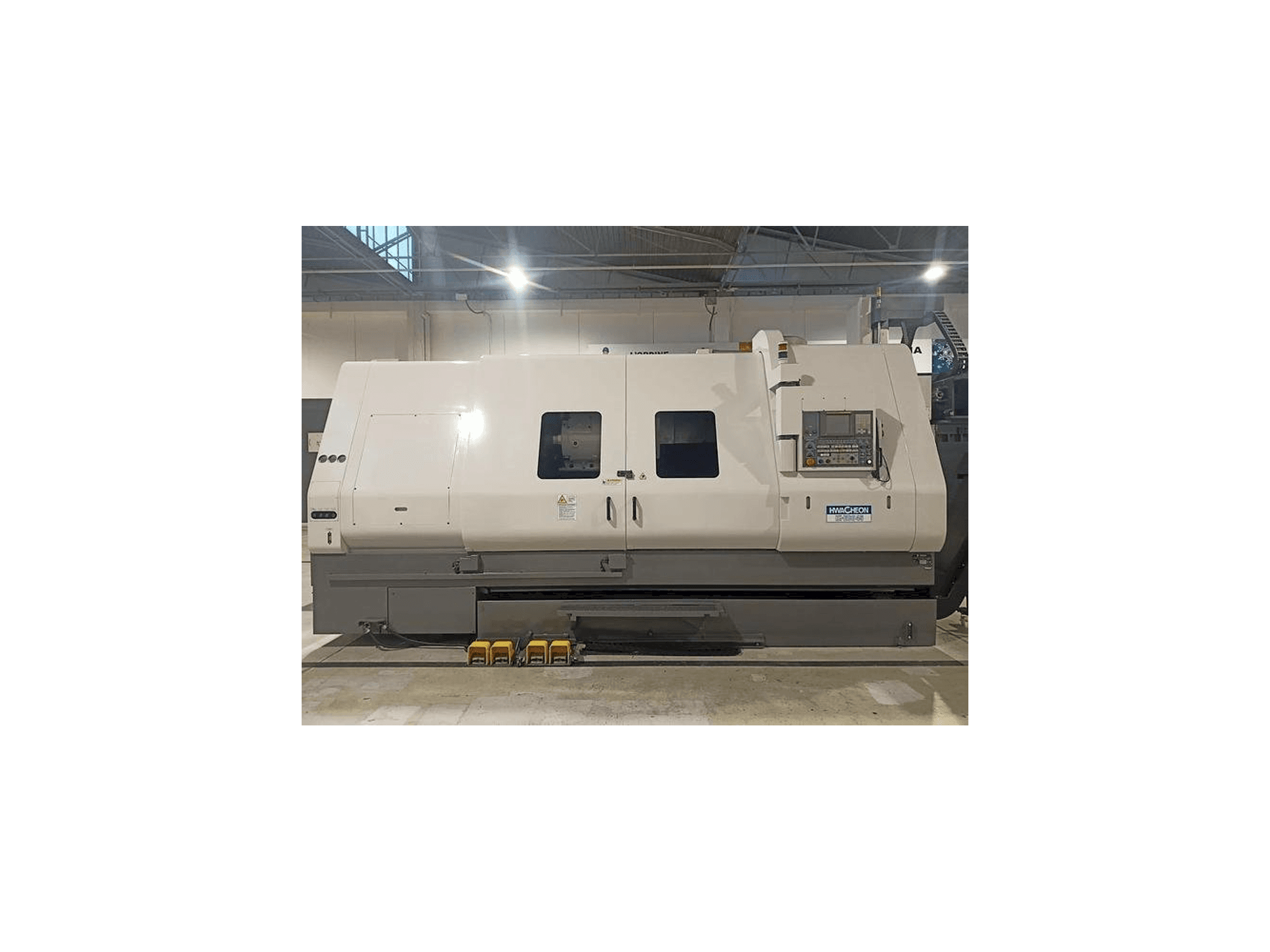

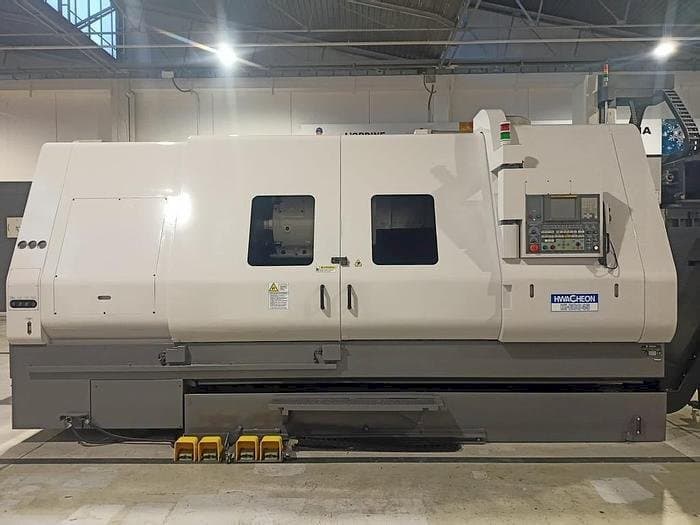

HWACHEON HI-ECO 45 Lathe machine

Show in original language

This HWACHEON HI-ECO 45 Lathe machine was manufactured in the year 2004. It is operated through a Fanuc 18i control unit and has been working for 11000 hours. It can works with a spindle speed up to 1800 rpm and a spindle power of 37 Kw. The machine is in very good condition.

Overview

brand: HWACHEON
year: 2004
MODEL: HI-ECO 45
production hours: 11000
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HWACHEON HI-ECO 45

General Data

Measurements width: 2310 mm
Measurements depth: 4895 mm
Measurements height: 2500 mm
Machine weight: 15000 kg

Control Unit

Model: 18i
Brand: FANUC

Main drive

Spindle speed range: 1800 1/MIN
Spindle motor power: 37 Kw

Movement

X-AXIS Movement: 385 mm
X-AXIS Rapid traverse: 24 Mt/min
Z-AXIS Movement: 2070mm
Z-AXIS Rapid traverse: 24 Mt/min

Table

Distance between: 2000 mm
Inner length: 2000 mm
Inner width: 700 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max piece vaulting 900 mm
- - Spindle nose asa 11
- - Max bar passage 113 mm
- - Tools turret 12 positions
- - Tool mt5
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
