➤ Used Huron KX30 Machining Center For Sale | gindumac.com

Show in original language

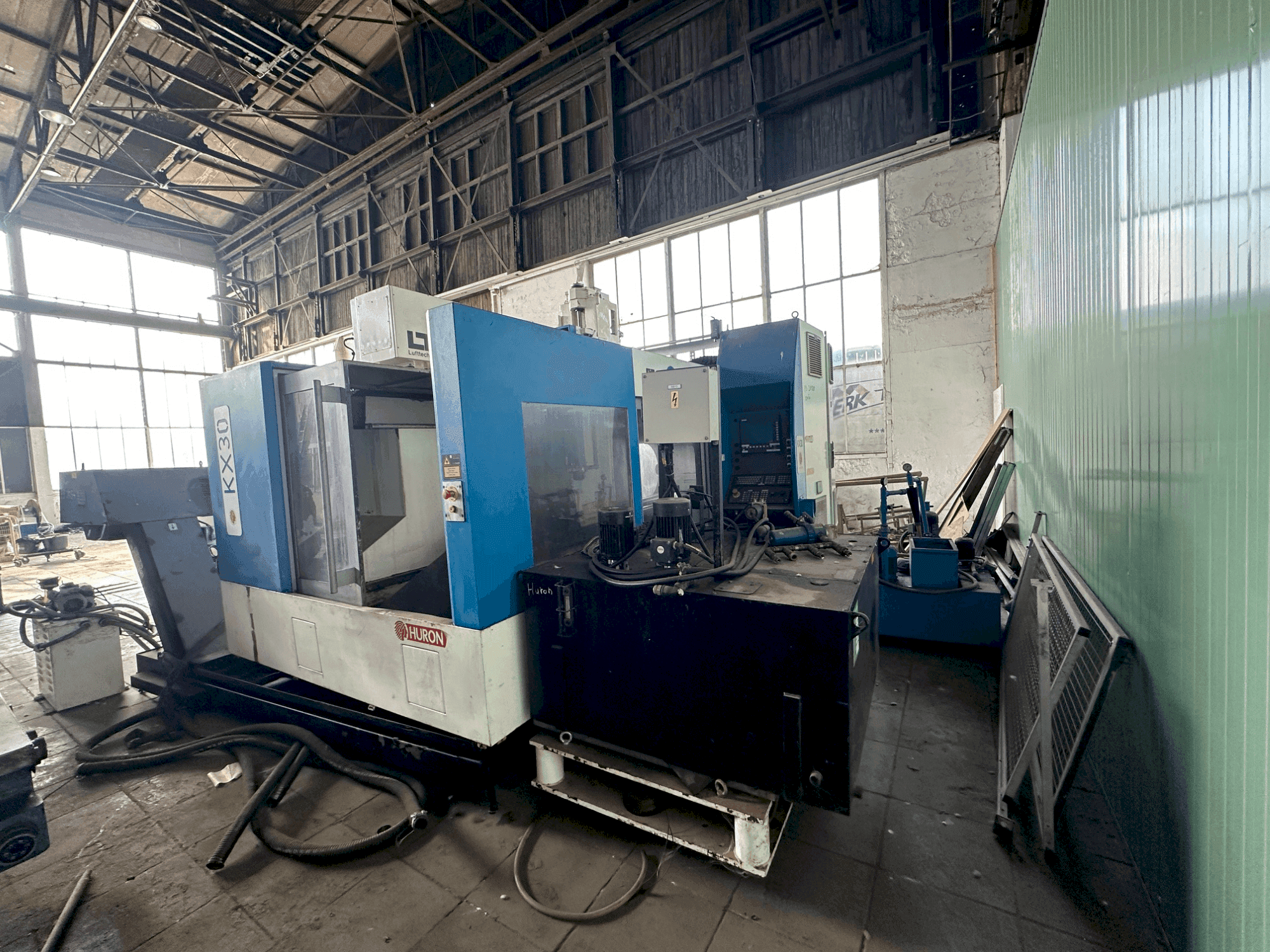

This 3-axis Huron KX30 vertical machining centre was manufactured in 2001. It features a ribbed cast structure for high rigidity and excellent vibration damping during demanding cutting processes. It includes a high-speed spindle up to 42,000 RPM and a large table size of 2000 x 1000 mm, supporting loads up to 2.5 tons. Accessories include an IRODEX chip conveyor and a separate vacuum clamping table. Reach out for further details regarding this vertical machining centre.

Overview

brand: Huron
year: 2001
MODEL: KX30
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Huron KX30

General Data

Measurements width: 6420 mm
Measurements depth: 5770 mm
Measurements height: 3430 mm
Machine weight: 17000 kg

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 42000 rpm 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1800 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 18 m/min

Table

Table load: 2500 kg

Tools

Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 300 mm

Additional Equipment

- LTA extraction unit
- Belt filter
- Cooling unit
- IRODEX chip conveyor
- Separate vacuum clamping table approx. 1500x1000 mm
- Refrigeration dryer DONALDSON SD0080AP-CV, with pressure vessel

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ribbed cast structure with excellent mechanical properties and high rigidity
- - Excellent damping of vibrations during demanding cutting processes
- - Floor anchoring for long-term high geometric stability and precision
- - Total power requirement: 30 kw
- - Table size: 2000 x 1000 mm
Qualitative Machine Benefits:
- - First-class quality surfaces, especially in the 3d production of molds/forgings and tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
