Huron K2X 10 Vertical Machining Center

Show in original language

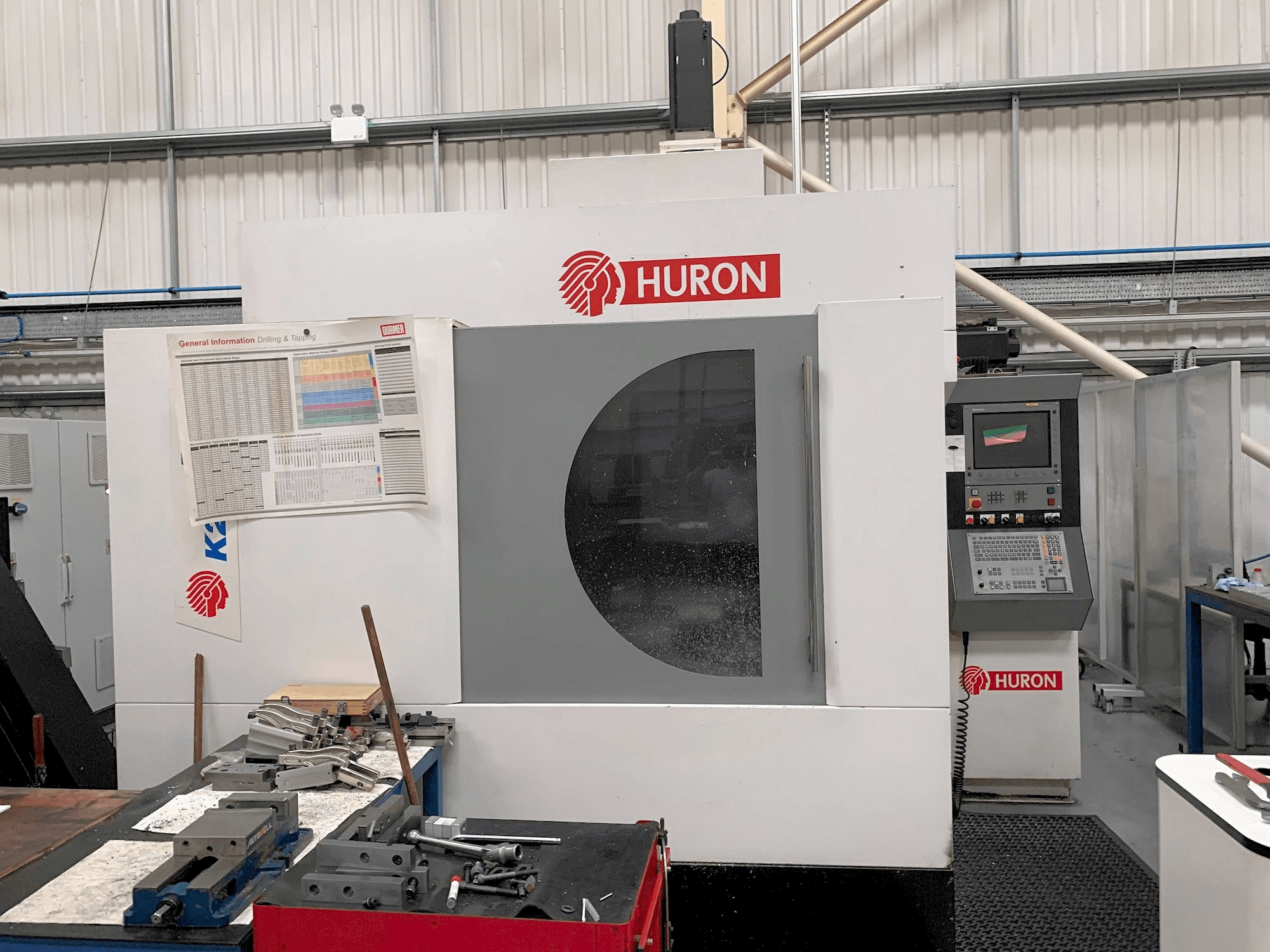

This Huron K2X 10 Vertical Machining Center was built in France in the year 2011. It is operated with a Heidenhain iTNC 530 control unit. This machine is capable of working with a spindle speed up to 18000 rpm. It presents very good conditions.

Overview

brand: Huron
year: 2011
MODEL: K2X 10
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Huron K2X 10

General Data

Measurements width: 5930 mm
Measurements depth: 3520 mm
Measurements height: 3400 mm
Machine weight: 12500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 1150 mm
Workpiece y: 800 mm
Workpiece z: 500 mm
Workpiece weight: 1000 kg

Table

Outer length: 1150 mm
Outer width: 800 mm

Tools

Slots in storage: 36
Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 300 mm
Type of tool holder: HSK-A 63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle power 30 kw
- - Interlocked guards
- - Coolant
- - Rapid feedrates x y z 60 m/min
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
