Hurco VM30 Vertical machining center

Show in original language

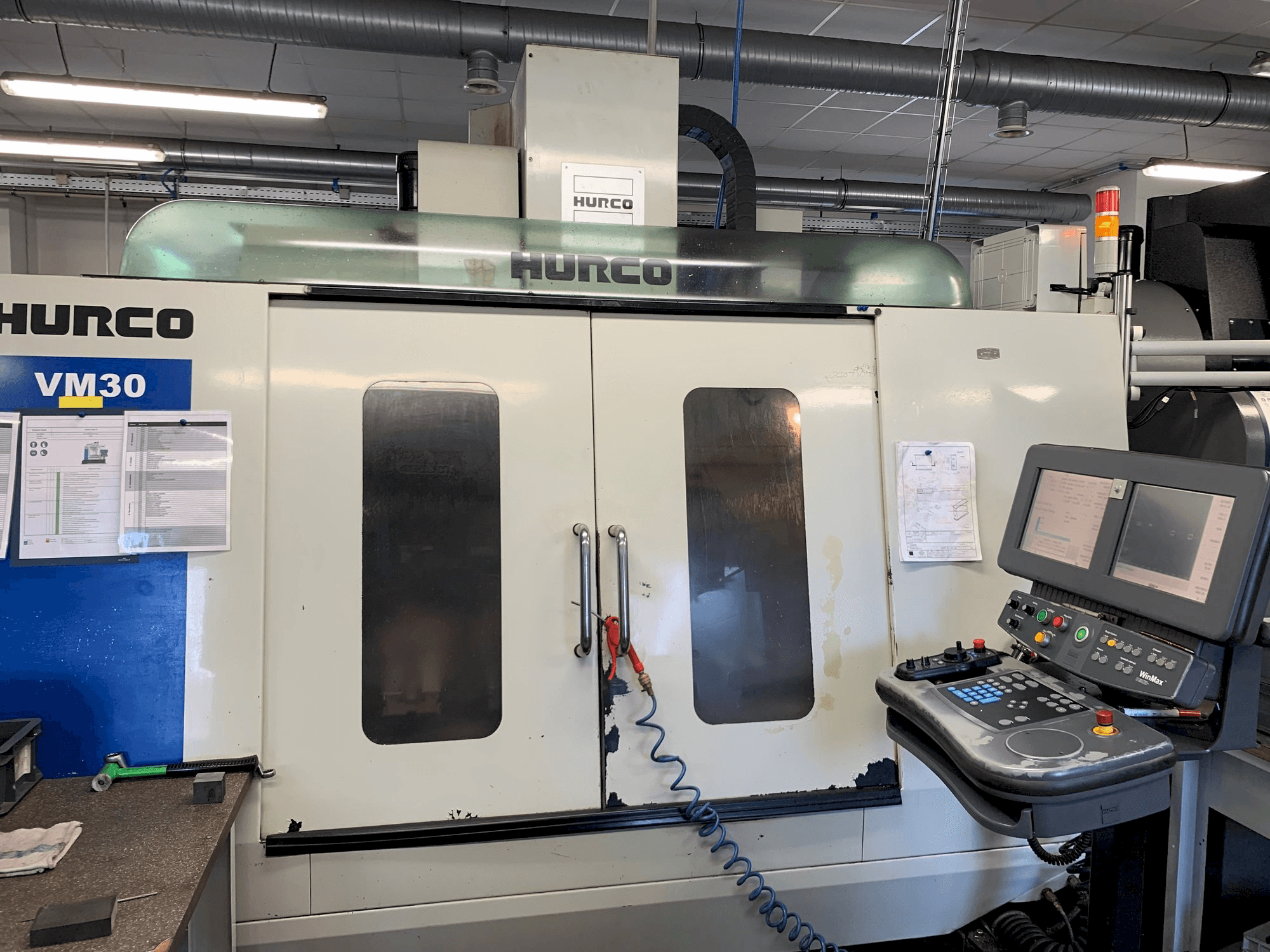

This Hurco VM30 Vertical machining center was manufactured in Taiwan in 2011. It has been on 27689 hours, of which 12878 are production hours. It is operated through a WinMax control unit. This 3 axis machine works with a spindle speed up to 10000 rpm. Includes 2 software units, workspace light, beacon and a washgun. Machine in very good conditions.

Overview

brand: Hurco
year: 2011
MODEL: VM30
production hours: 12878
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Hurco VM30

General Data

Measurements width: 2830 mm
Measurements depth: 1800 mm
Measurements height: 2580 mm
Machine weight: 4550 KG

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 540 KG

Table

Outer length: 1320 mm
Outer width: 610 mm
Number of tslots: 5
Distance between: 100 mm
Min distance between vertical spindle and table: 100 mm
Max distance between vertical spindle and table: 610 mm

Tools

Slots in storage: 20
Max weight: 6.8 KG
Max tool diameter: 89/127 mm
Max tool length: 250 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400V / 50Hz
Power consumption: 20 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Max. Torque 100 nm (@ 1450 rpm)
- - Work feedrate: 15000 mm/min
- - Rapid feedrate: 24 m/min
- - 2 software units
- - Tool cooling
- - Hard disk 40 gb
- - Usb port
- - Workspace light, beacon, washgun
- - 4th axis ready
Qualitative Machine Benefits:
- - Machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
