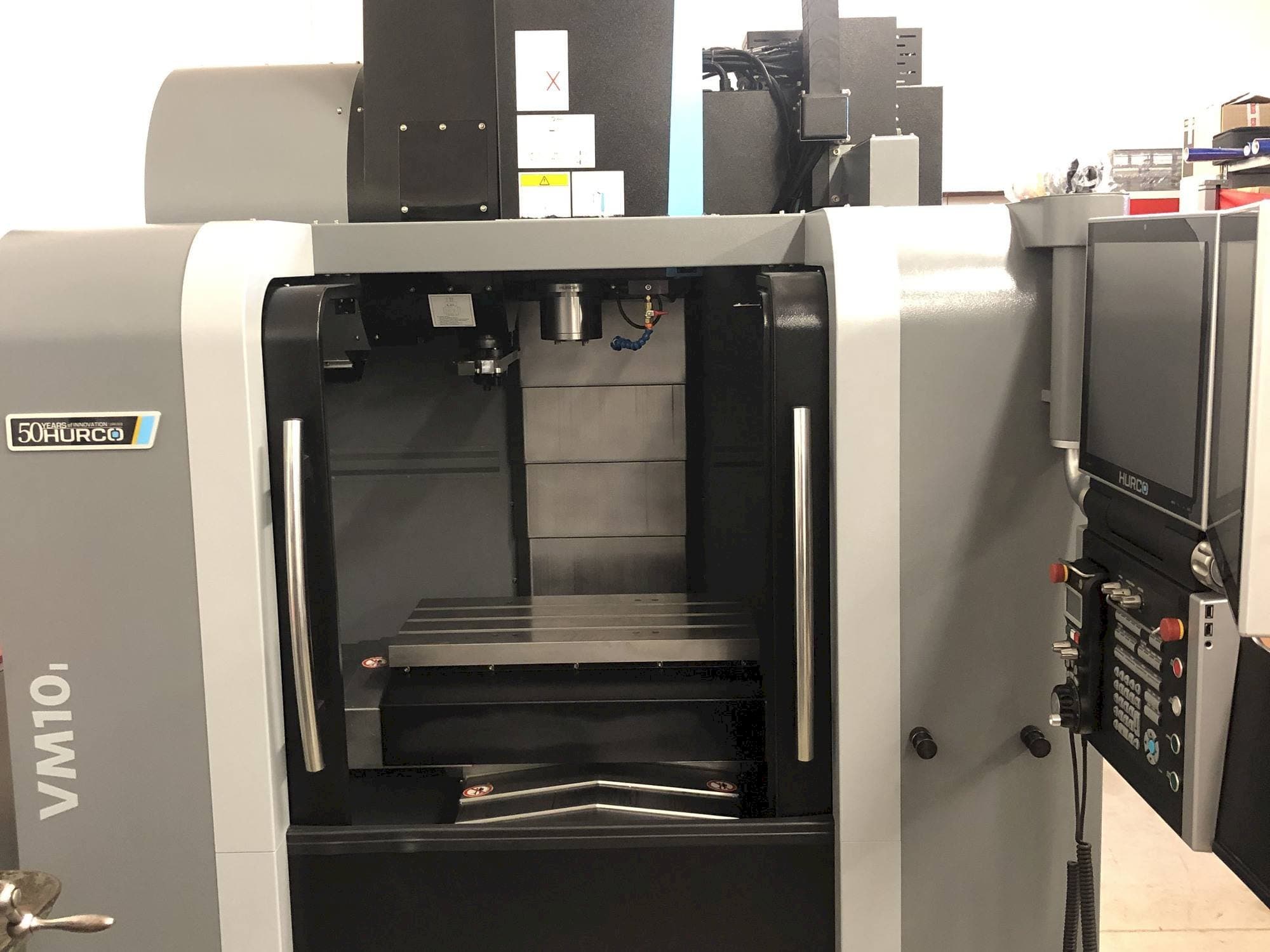

Hurco VM 10 i Plus Vertical Machining Center

Show in original language

This Hurco VM 10 i Plus Vertical Machining Center was made in Germany in 2018. It has a production hours of only 486. It is operated with a WINMAX 5 GEN touch display control unit. This machine can work with a spindle speed range up to 12000 rpm. It is ready to work with 4th and 5th axis.

Overview

brand: Hurco
year: 2018
MODEL: VM 10 i Plus
production hours: 486
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Hurco VM 10 i Plus

General Data

Measurements width: 3204 mm
Measurements depth: 3363 mm
Measurements height: 2564 mm
Machine weight: 2850 kg

Control Unit

Model: WINMAX 5 GEN
CNC main language: Czech
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 11 kW

Movement

X-AXIS Movement: 660 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 24 m/min

Workpiece

Workpiece weight: 682 kg

Table

Outer length: 762 mm
Outer width: 406 mm
TSlots size: 3 x 18 H8 x 100

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool diameter: 89 mm
Max tool length: 250 mm
Type of tool holder: SK 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque max. (nm) 61
- - 4th and 5th axis ready
- - 2x 19"lcd touch displays
- - Hand-wheel premium with lcd display
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
