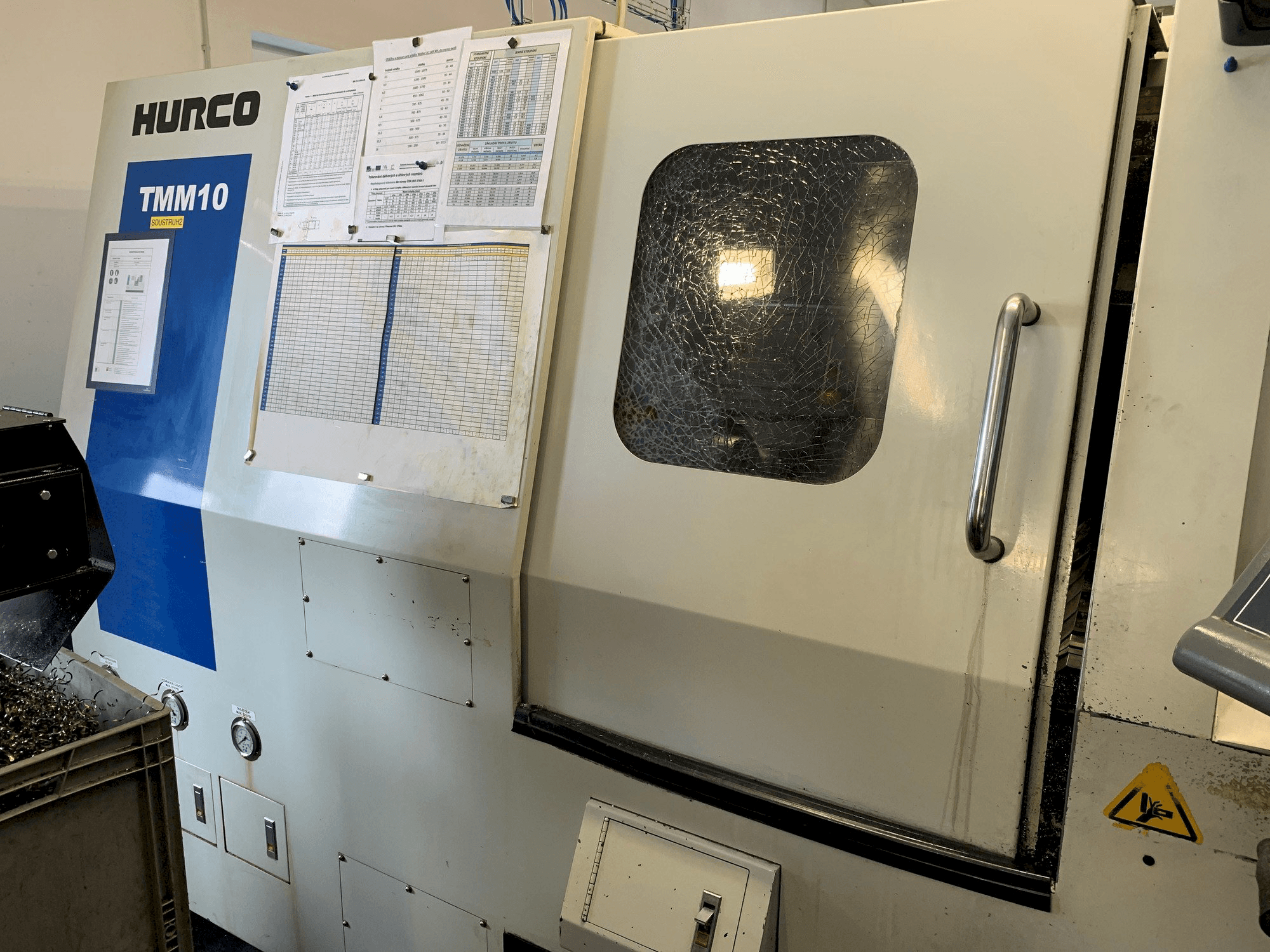

This Hurco TMM10 lathe machine was built in 2012 in Taiwan. It is operated through a HURCO WinMax control unit. This 3 axis machine has a spindle speed up to 4000 rpm. It is in good conditions.

Overview

brand: Hurco
year: 2012
MODEL: TMM10
application type: Turning
Location: Czech Republic
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco TMM10

General Data

Machine weight: 5000 Kg

Control Unit

Model: WinMax
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Spindle motor power: 18 kW
Spindle bore: 77 mm
Number of axis: 3

Movement

X-AXIS Movement: 250 mm
Z-AXIS Movement: 750 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 40

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 24 kV
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 580 mm
- - Swing over cross slide 402 mm
- - Maximum machining diameter/length 295/750 mm
- - C axis
- - Torque max. 474 nm
- - Tailstock
- - Milling speed 4000 rpm, power 6. 6 kw
Qualitative Machine Benefits:
- - Machine in good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
