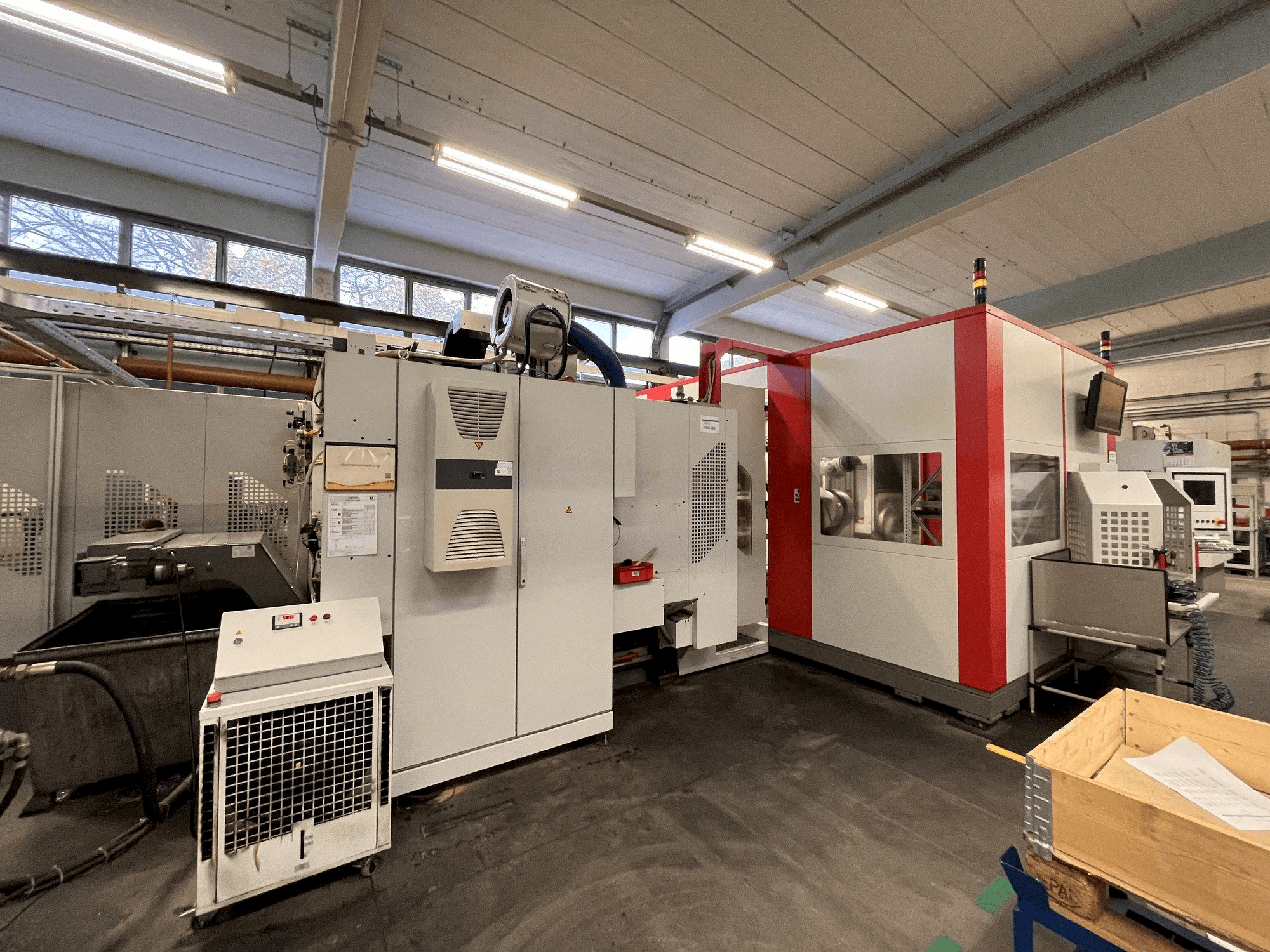

HERMLE C 40 U Vertical Machining center

Show in original language

This HERMLE C 40 U Vertical Machining Center was manufactured in the year 2009 and has 22400 hours. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. 2 units are available.

Overview

brand: HERMLE
year: 2009
MODEL: C 40 U
production hours: 22400
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 40 U

General Data

Measurements width: 3154 mm
Measurements depth: 2354 mm
Measurements height: 2892 MM
Machine weight: 10500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Tool taper: HSK A63
Number of axis: 5

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 500 mm
A-AXIS Movement: +/- 110 º MM
B-AXIS Movement: 360° MM

Tools

Max weight: 8 kg
Max tool diameter: 300 mm
Max tool length: 125 mm

Additional Equipment

- come with Renishaw touch-probe
- 1 pallet
- Chip conveyor is included
- The inner coolant high pressure pump is not included
- The robot is not included in the price

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed rate: 45000 mm/min
- - Measuring probe: renishaw omp 40-2l
- - Scraper conveyor without ikz.
- - Blow-off device
- - Blowing outlet through the center of the spindle
- - Manual cabin roof
- - Automatic cabin door
- - Polycarbonate safety windows
- - Temperature compensation
- - Electric manual control module itnc, blum roll breakage/measurement a3
Qualitative Machine Benefits:
- - Bed flushing, air purge for scales
- - Status light
- - Commissioning/magazine
- - Tool magazine: 157 slots
- - 6 fold feed through

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
