HELLER H 2000 Horizontal machining center

Show in original language

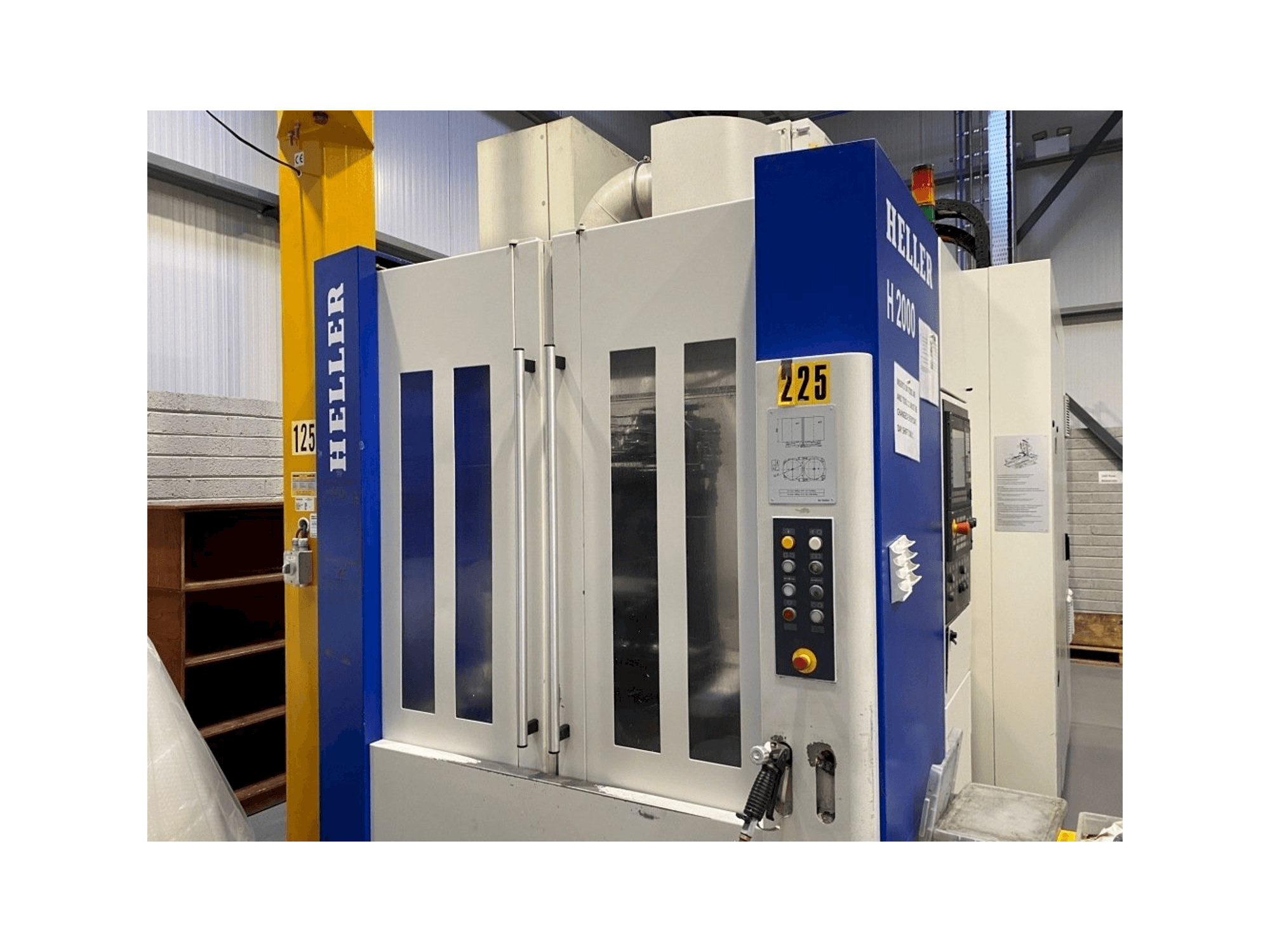

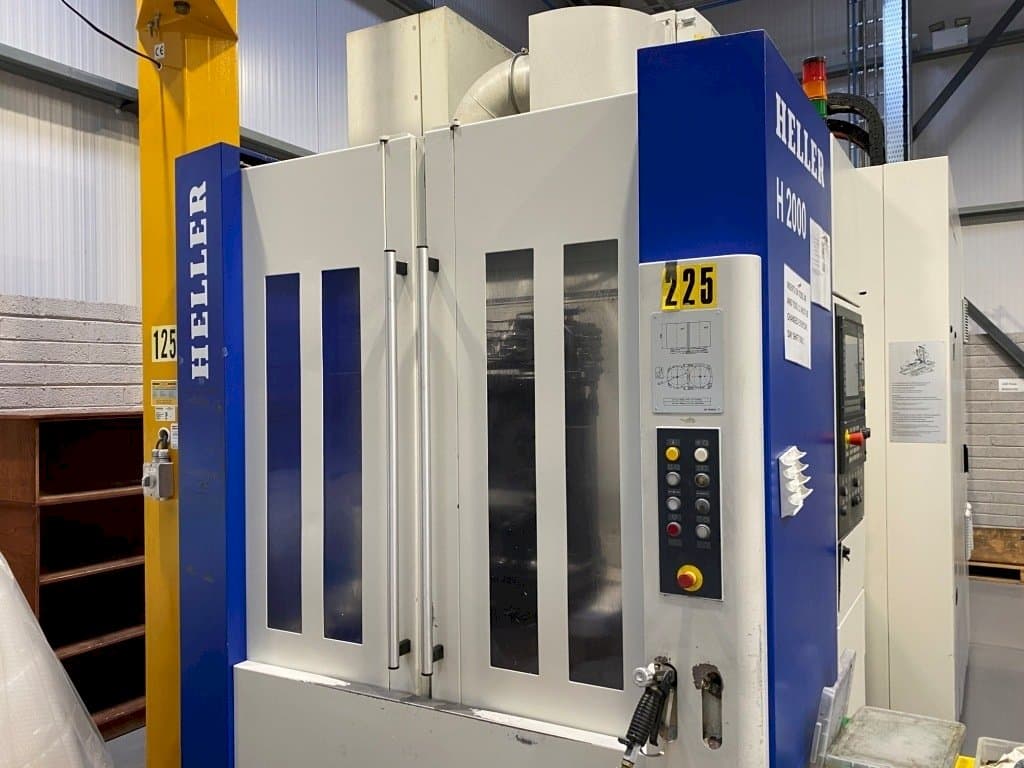

This HELLER H 2000 Horizontal machining center was made in Germany in 2008. It has been on for 60851 hours. It is equipped with a Siemens 840D Solution Line control unit. This 4 axis machine operates with a spindle speed up to 16000 rpm. It comes with 4 pallets, a selection of tool holders and 5 point hydraulic work piece clamping. Very good condition machine.

Overview

brand: HELLER
year: 2008
MODEL: H 2000
production hours: 60851
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HELLER H 2000

General Data

Measurements width: 5800 mm
Measurements depth: 2500 mm
Measurements height: 3100 mm
Machine weight: 10000 KG

Control Unit

Model: 840D Solution Line
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 630 mm
B-AXIS Movement: 360 Deg 0.001 Deg Rotation MM

Workpiece

Workpiece drm: 720 mm
Workpiece x: 400 mm
Workpiece y: 500 mm
Workpiece z: 850 mm
Workpiece weight: 800 KG

Table

Outer length: 400 mm
Outer width: 500 mm

Tools

Slots in storage: 80
Max weight: 12 KG
Max tool diameter: 260 mm
Max tool length: 350 mm
Type of tool holder: HSK 63A

Media

Main electronic connection: 3 x 415V / 50Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Selection of Tool Holders
- 4 Pallets
- Mist Extraction Unit
- High prerssure coolant unit
- Coolant Filtration System
- 5 Point Hydraulic Work Piece Clamping

Additional Information

Machine history

Material type: Steel
End product: Medical device parts
Industries: Medical device industry

Machine Benefits

Technical Machine Benefits:
- - Hp coolant
- - Hydraulic workpiece clamping
Qualitative Machine Benefits:
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
