HANKOOK VTC125E Lathe

Show in original language

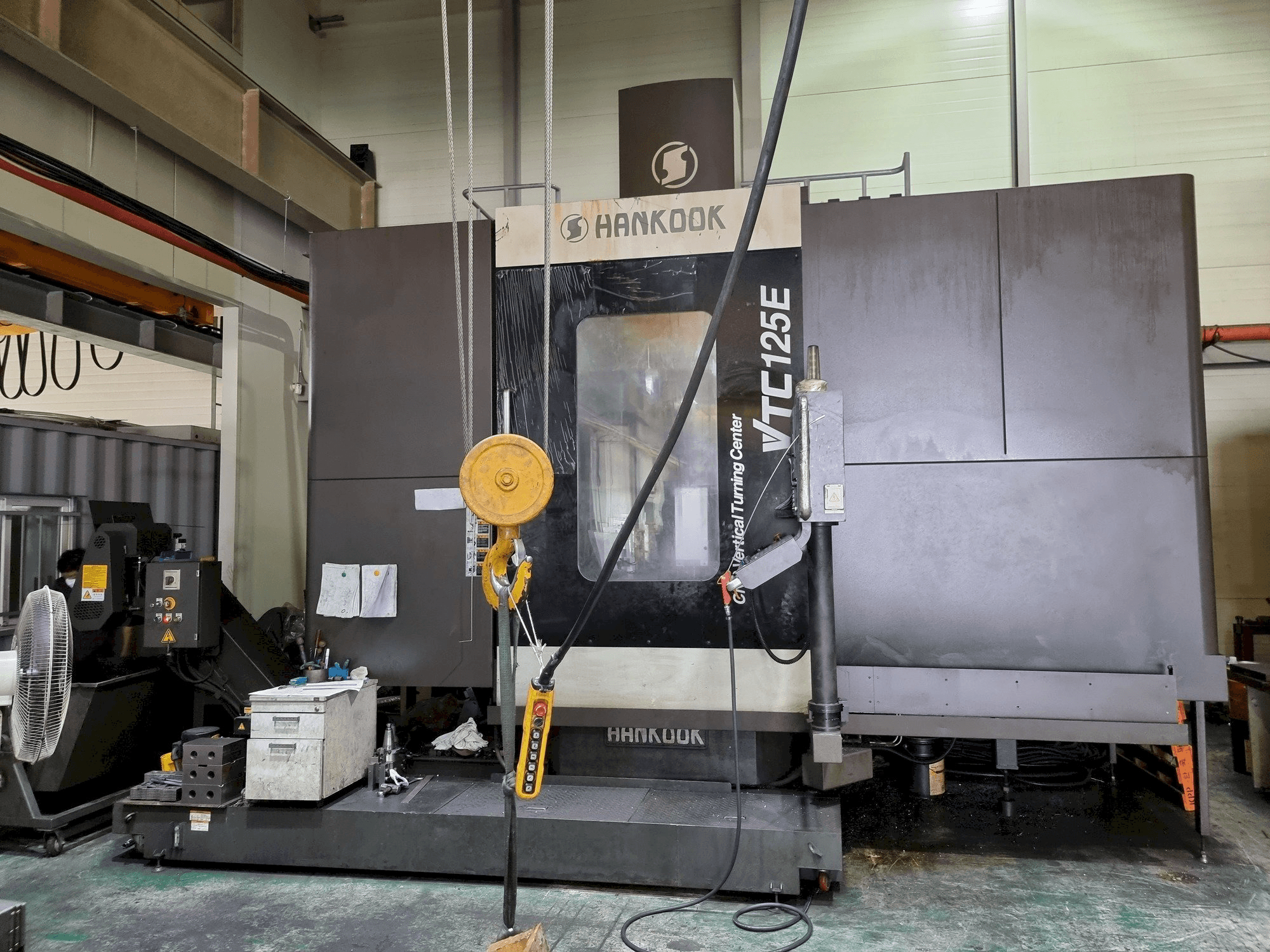

This HANKOOK VTC125E Vertical Lathe was made in the year 2015. It has worked during 7060 production hours. It is equipped with a FANUC 32i MODEL A control unit. This 3 axis machine can work with a spindle speed range between 30 ~ 3000 rpm and a milling spindle torque 45 mm. It includes MPG handle and manual books.

Overview

brand: HANKOOK
year: 2015
MODEL: VTC125E
production hours: 7060
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HANKOOK VTC125E

Control Unit

Model: 32i MODEL A
Brand: FANUC

Main drive

Spindle speed range: 30 ~ 3000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Z-AXIS Movement: 900 mm
W-Axis Movement: 700 mm

Media

Main electronic connection: 220 V / 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W axis (cross rail): 700 mm (4 step. 175 mm, 175 mm, 175 mm, 175 mm)
- - Ram size : 220 mm * 220 mm
- - Ram stroke : 900 mm
- - C axis : 0. 001 degree
- - Table rpm: 0. 9 ~ 350
- - Table size: Φ1250 mm
- - Swing size: Φ1600 mm
- - Max turning height: 900 ~ 1400 mm
- - Max. Allowable workpiece weight: 8000 kg
- - Mill spindle torque: 45 mm
Qualitative Machine Benefits:
- - Atc: 24ea (turning:12ea, milling:12ea)
- - Tsc 20 bar
- - Table motor(kw/hp):ac 37/45 (50/60)
- - Mill spindle motor(kw/hp):ac 15/18. 5 (20/25)
- - X axis motor(kw/hp):ac 7 (9. 3)
- - Z axis motor (kw/hp):ac 7 (9. 3)
- - C axis motor (kw/hp):ac 7 (9. 3)
- - Hydraulic pump motor : 7. 5 kw
- - Linear scale (c axis)
- - Oil cooler

Extra information

- Call right(LED 3 Step) MPG handle Manual books CE MARK

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
