HAAS - VF-8/40DE-MIL-HAA-2014-00003

Name: HAAS VF-8/40
Brand: HAAS
SKU: DE-MIL-HAA-2014-00003
Price: 69000 EUR
Availability: InStock

69,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-8/40 For Sale | gindumac.com

Show in original language

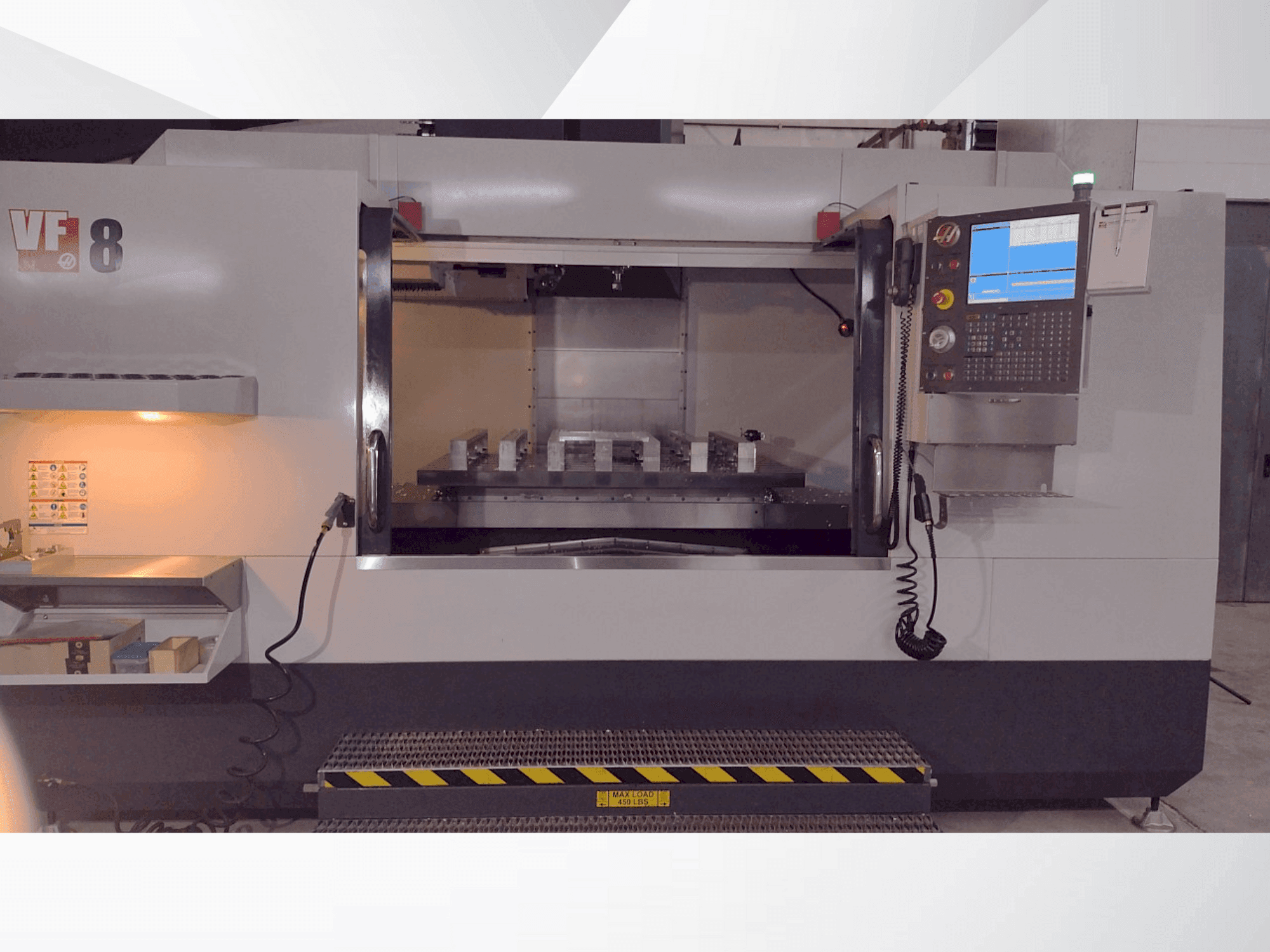

This 3-axis HAAS VF-8/40 vertical machining center was manufactured in 2014. It features a robust spindle with a maximum speed of 8100 rpm and a power rating of 22.4 kW, ensuring high-performance machining. The machine accommodates a maximum table load of 1814 kg and offers rapid movements up to 15.2 m/min on all axes. If you are looking to get high-quality milling capabilities, consider the HAAS VF-8/40 machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2014
MODEL: VF-8/40
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS VF-8/40

Control Unit

Brand: HAAS
Model: RJH-C

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW
Tool taper: CT or BT 40, SK40
Number of axis: 3

Movement

X-AXIS Movement: 1626 mm
X-AXIS Rapid traverse: 15.2 m/min
Y-AXIS Movement: 1016 mm
Y-AXIS Rapid traverse: 15.2 m/min
Z-AXIS Movement: 762 mm
Z-AXIS Rapid traverse: 15.2 m/min

Table

Outer length: 1626 mm
Outer width: 914 mm
TSlots size: 16 mm
Number of tslots: 7
Distance between: 125 mm
Min distance between vertical spindle and table: 102 mm
Max distance between vertical spindle and table: 864 mm
Table load: 1814 kg

Tools

Slots in storage: 24+1
Max weight: 5.4 kg
Max tool diameter: 76 mm
Max tool length: 406 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Torque: 122 nm
- - Max. Cutting: 12. 7 m/min
- - Max. Thrust x: 15124 n
- - Max. Thrust y: 15124 n
- - Max. Thrust z: 24910 n
- - Coolant capacity: 360l

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
