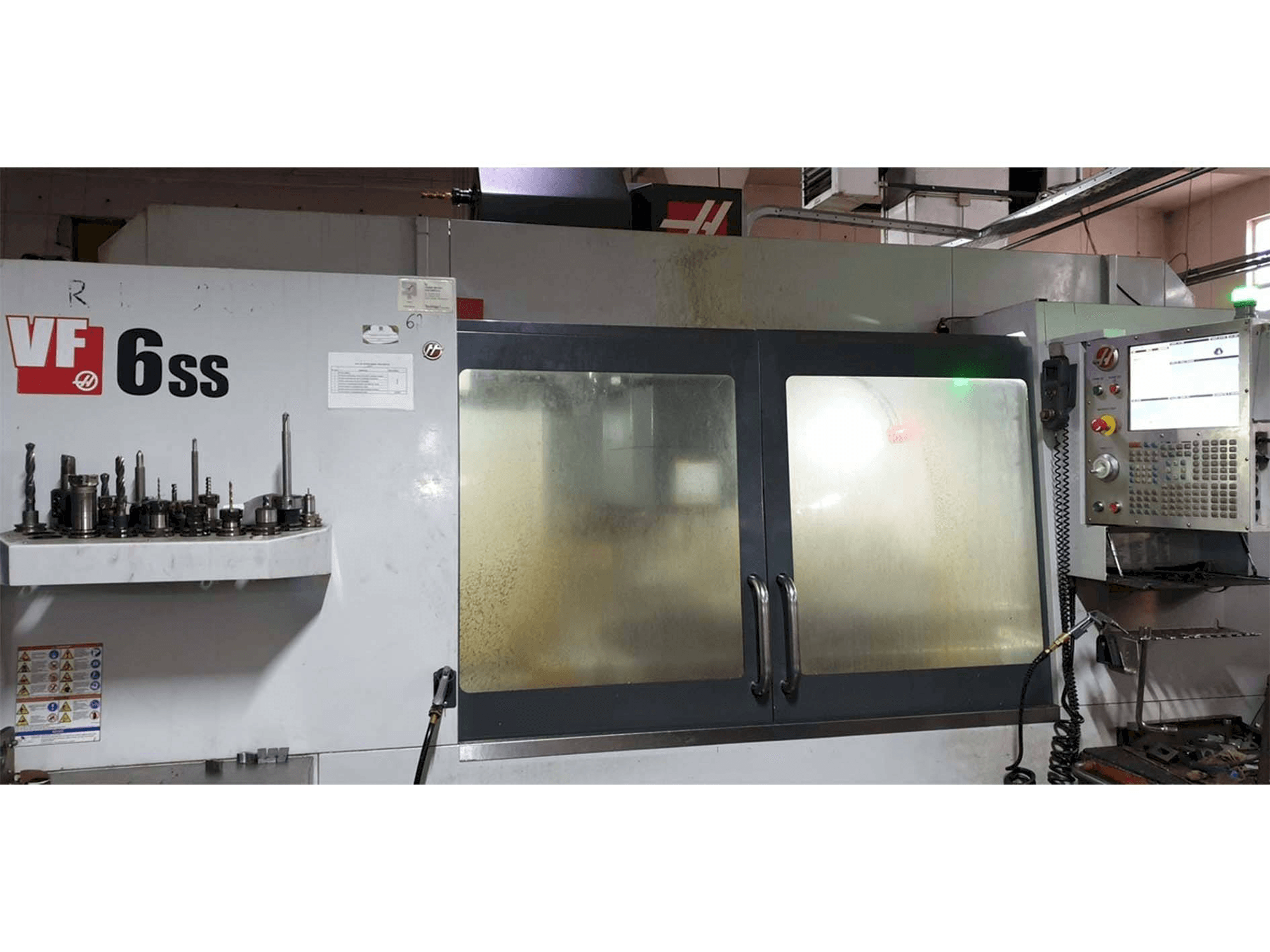

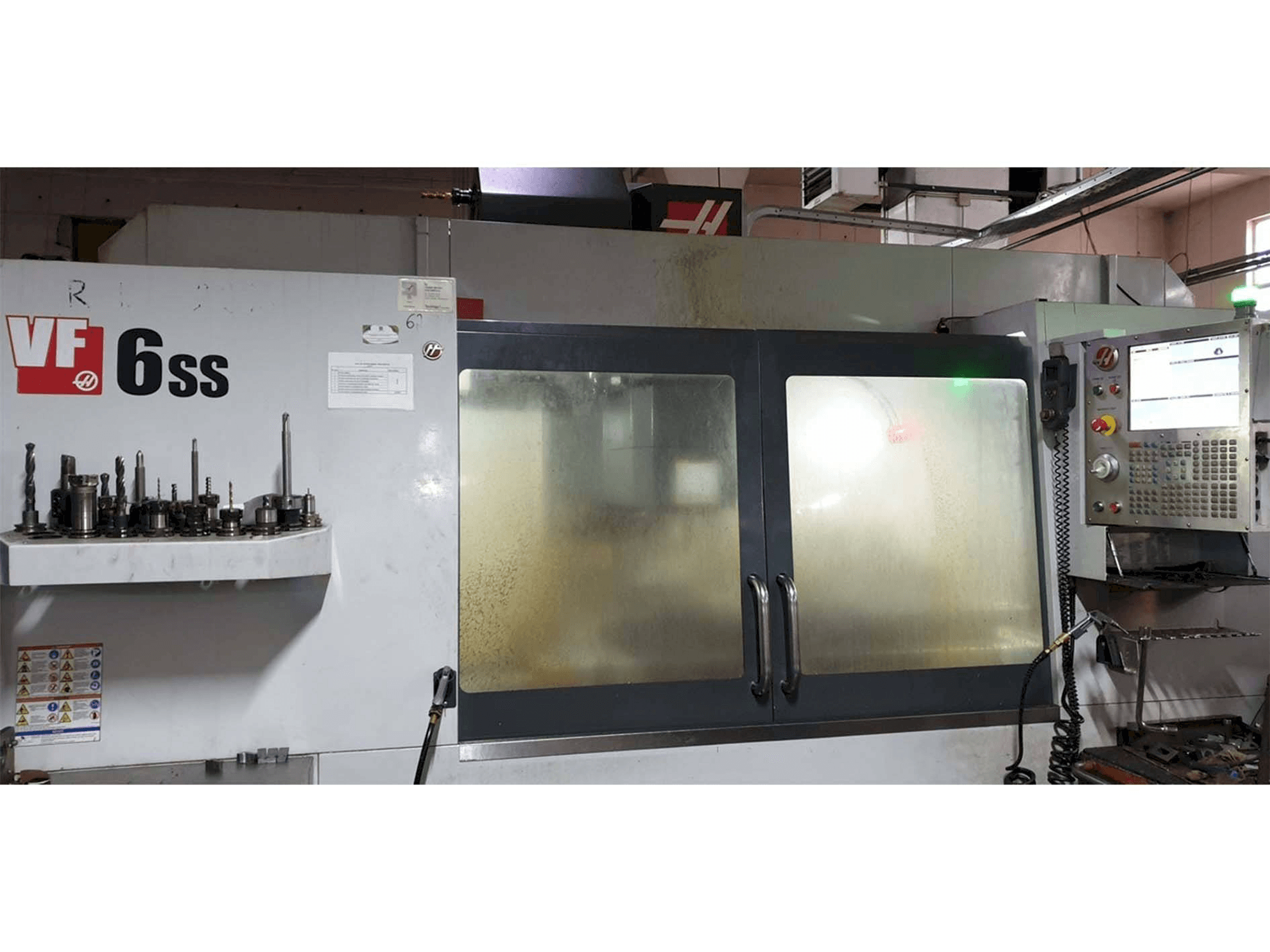

HAAS VF-6SS Vertical Machining Center

Show in original language

This HAAS VF-6SS Vertical Machining Center was manufactured in the year 2014 in United States. This 3 axis machine can work with a spindle speed up to 12000 rpm and counts with a table size of 1626 x 711 mm. It has 22650 of running hours. Machine in very good condition.

Overview

brand: HAAS
year: 2014
MODEL: VF-6SS
production hours: 22650
application type: Milling
Location: Romania
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-6SS

General Data

Measurements width: 4960 mm
Measurements depth: 2600 MM
Measurements height: 3310 mm
Machine weight: 10200 kg

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1626 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Table

Outer length: 1626 mm
Outer width: 711 mm
Table load: 907 kg

Tools

Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (max): 864 mm
- - Spindle nose to table (min): 102 mm
- - T slot width: 15. 9 to 16 mm
- - T slot center distance: 125 mm
- - Through spindle coolant
- - Tsc reinshaw touch probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
