- HAAS VF-5/40 TR Vertical Machine Center

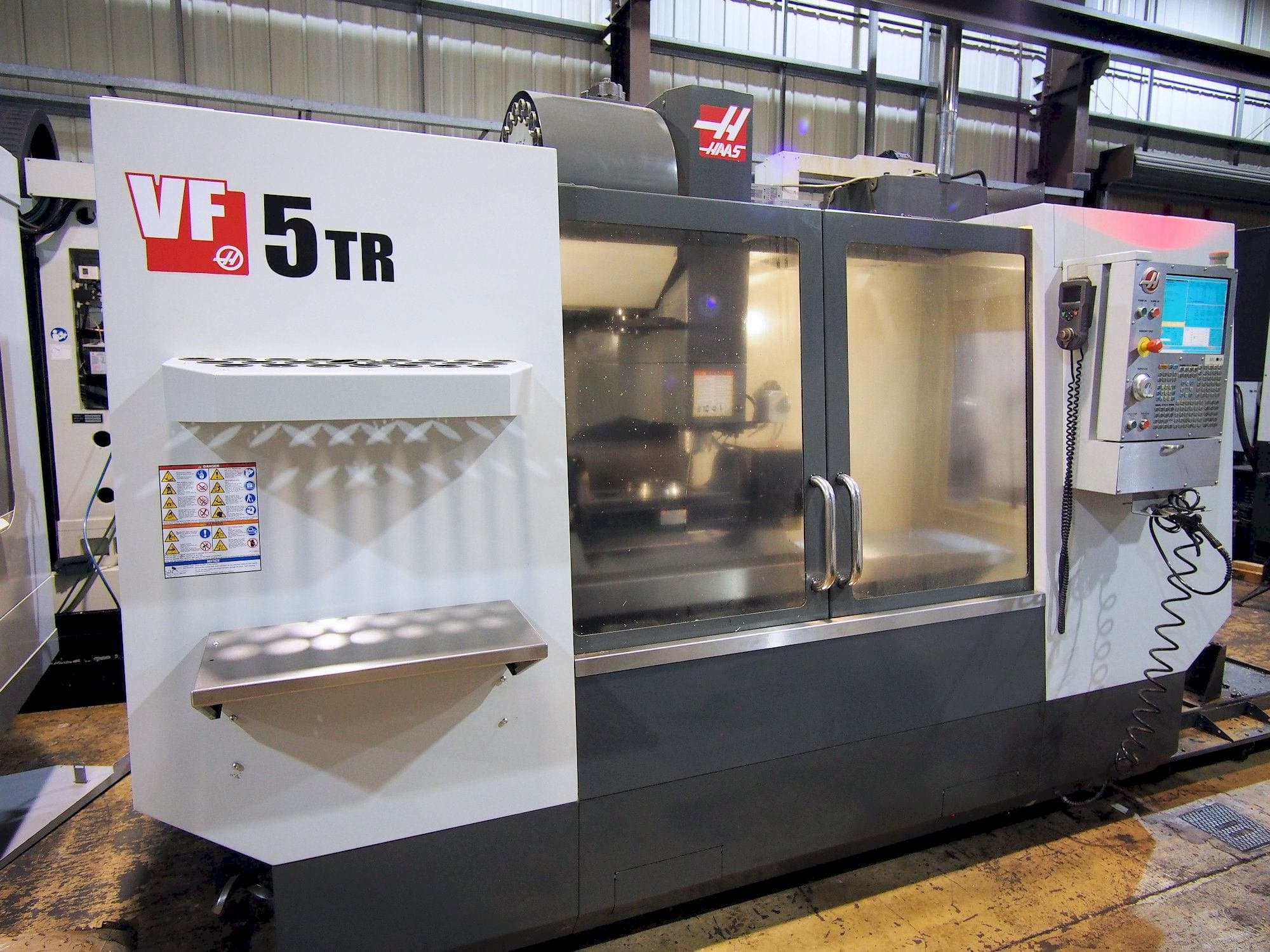

This HAAS VF-5/40 TR Vertical Machine Center was manufactured in the United States in 2012. This 5 axis machine has a Haas control unit. It has a spindle speed range up to 10000 rpm. The machine is in very good conditions.
Overview
- brand: HAAS
- year: 2012
- MODEL: VF-5/40 TR
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Haas
Technical Information - HAAS VF-5/40 TR
General Data
- Machine weight: 5700 KG
Control Unit
- Brand: Haas
Main drive
- Number of spindles: 1
- Spindle motor power: 22 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 1270 mm
- Y-AXIS Movement: 660 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 90 kg
Table
- Outer length: 210 mm
- Outer width: 210 mm
Tools
- Slots in storage: 24
- Type of tool holder: BT 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - A axis -/+ 120 degrees, b axis 360 degrees
- - Rapid feedrates 18 m/min
- - Min. -max. Height under spindle 40-625 mm
- - Programmable coolant nozzle
- - Tool setter
- - Swarf conveyor, coolant
- - High speed machining function
- - 1gb hard drive, usb port
- Qualitative Machine Benefits:
- - Very good conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
