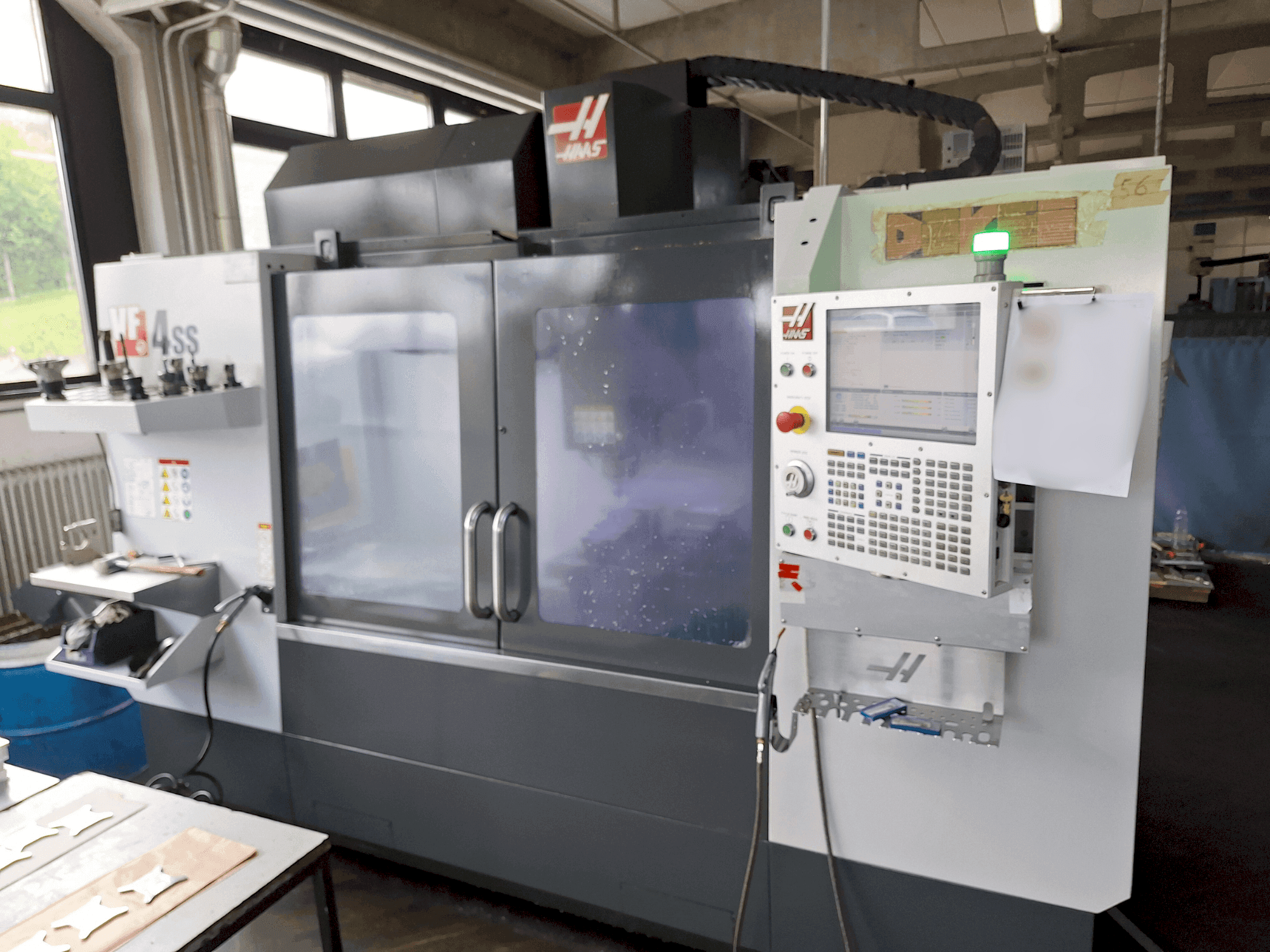

➤ Used HAAS VF-4SS - 2019 - Vertical Machining Center

Show in original language

This 3-axis HAAS VF-4SS was manufactured in 2019, featuring a robust vertical machining center design. It boasts a spindle speed of 12000 rpm and a spindle power of 22.4 kW, ensuring high-efficiency machining. The machine includes a 30+1 tool changer and supports a maximum table load of 794 kg. Rapid movements reach up to 35.6 m/min on all axes, enhancing productivity. For more information about this Machining Center, please reach out to us.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-4SS

General Data

Machine weight: 6260 KG

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kw
Tool taper: ct40 | bt40 | hsk-a63
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
X-AXIS Feed Force: 13723 n
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Feed Force: 13723 n
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Feed Force: 17459 n
Z-AXIS Rapid traverse: 35.6 m/min

Table

Outer length: 1321 mm
Outer width: 495 mm
TSlots size: Width: 15.90 mm to 16.00 mm. Center distance: 80 mm
Number of tslots: 5
Min distance between vertical spindle and table: 107 mm
Max distance between vertical spindle and table: 742 mm
Table load: 794 kg

Tools

Slots in storage: 30+1
Max weight: 5.4 kg
Max tool diameter: 127 mm
Max tool length: 330 mm

Media

Air pressure: 5.5 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 122. 0 nm at 2000 rpm
- - Drive system inline direct-drive
- - Bearing lubrication air / oil injection
- - Coolant capacity: 208 l
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
