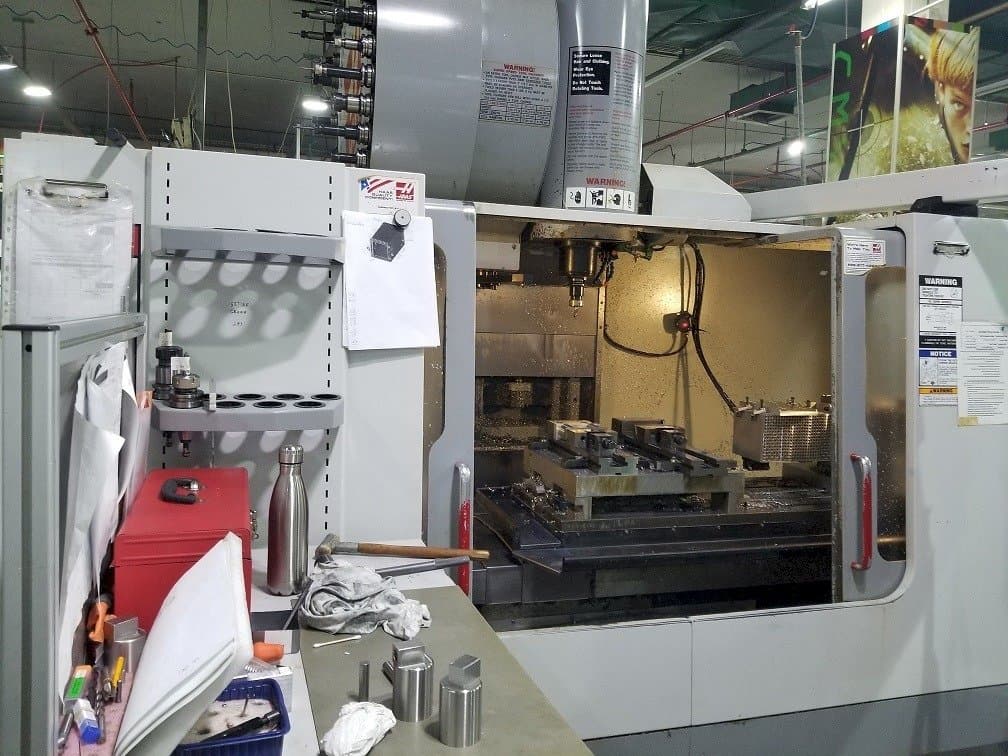

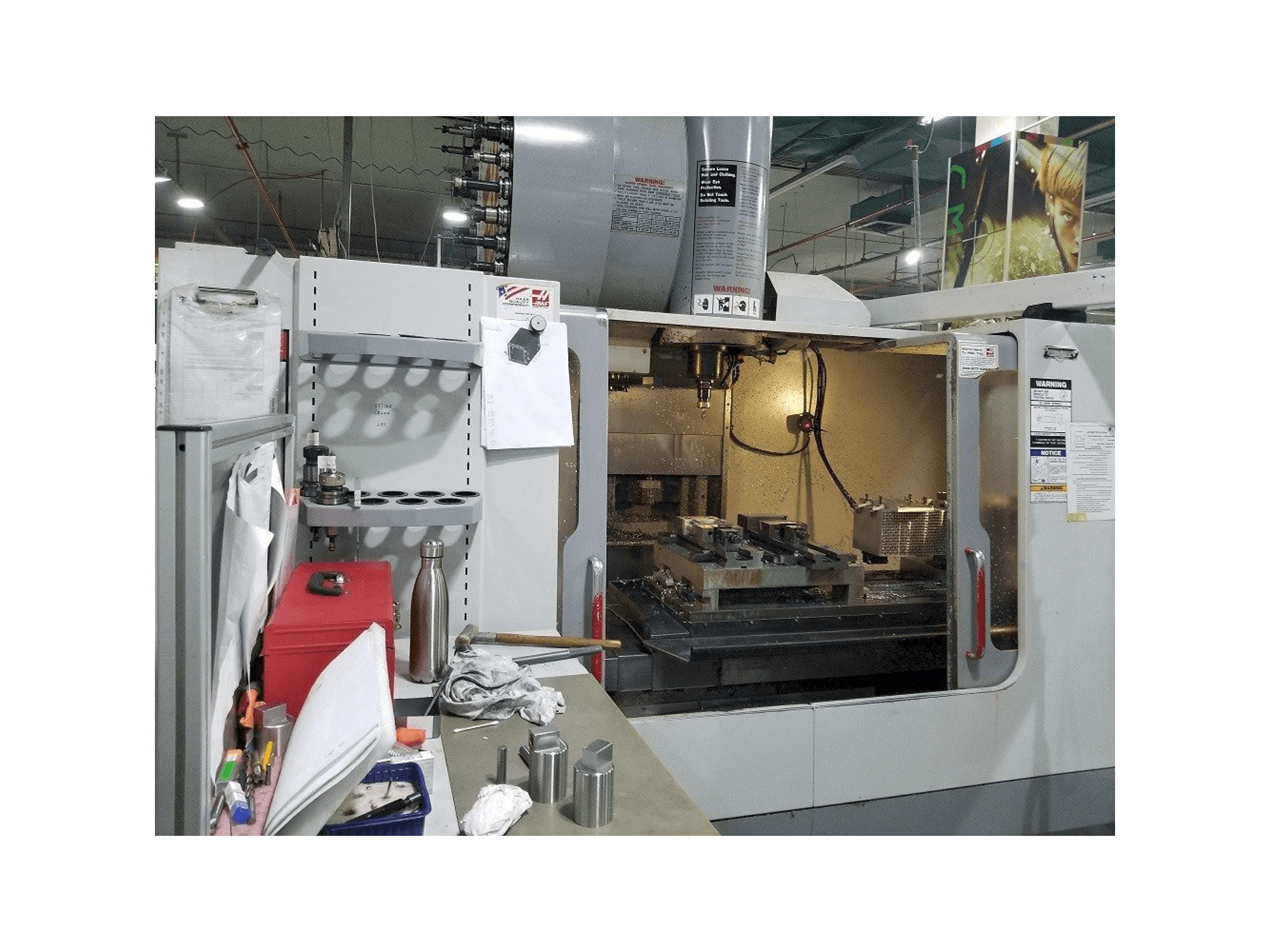

HAAS VF-4SS Vertical Machining Center

Show in original language

This HAAS VF-4SS Vertical Machining Center was manufactured in the year 2005 in United States. It is equipped with a control unit of the same brand. This 4 axis machine can work with a spindle speed up to 12000 rpm.

Overview

brand: HAAS
year: 2005
MODEL: VF-4SS
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Haas

Technical Information - HAAS VF-4SS

General Data

Machine weight: 6033 kg

Control Unit

Brand: Haas
Model: CNC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 35,5 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 35,5 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 35,5 m/min

Table

Outer length: 1320 mm
Outer width: 457 mm
Table load: 794 kg

Tools

Number of stations: Capacity 40+1 BT40
Max tool diameter: 76 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive system inline direct drive
- - Max. Rating 30 hp
- - Max. Torque 90 ft-lb@ 2000 rpm
- - Brushless axis motor: (max. Thrust)
- - X & y axis 1400 kg, z-axis 1780 kg
- - Max. Cutting: 21,15 m/min
- - Too changer: tool to tool 1. 6 sec chip to chip 2. 2 sec
- - 40 position side mount automatic tool changer
- - High speed machining, 4th axis rotary table
- - Rotation & scaling, spindle orientation, rigid tapping
Qualitative Machine Benefits:
- - Early power fault detection
- - Cool programable coolant nozzle
- - Macros
- - Visual quick code
- - Remote jog handle
- - Chip auger

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
