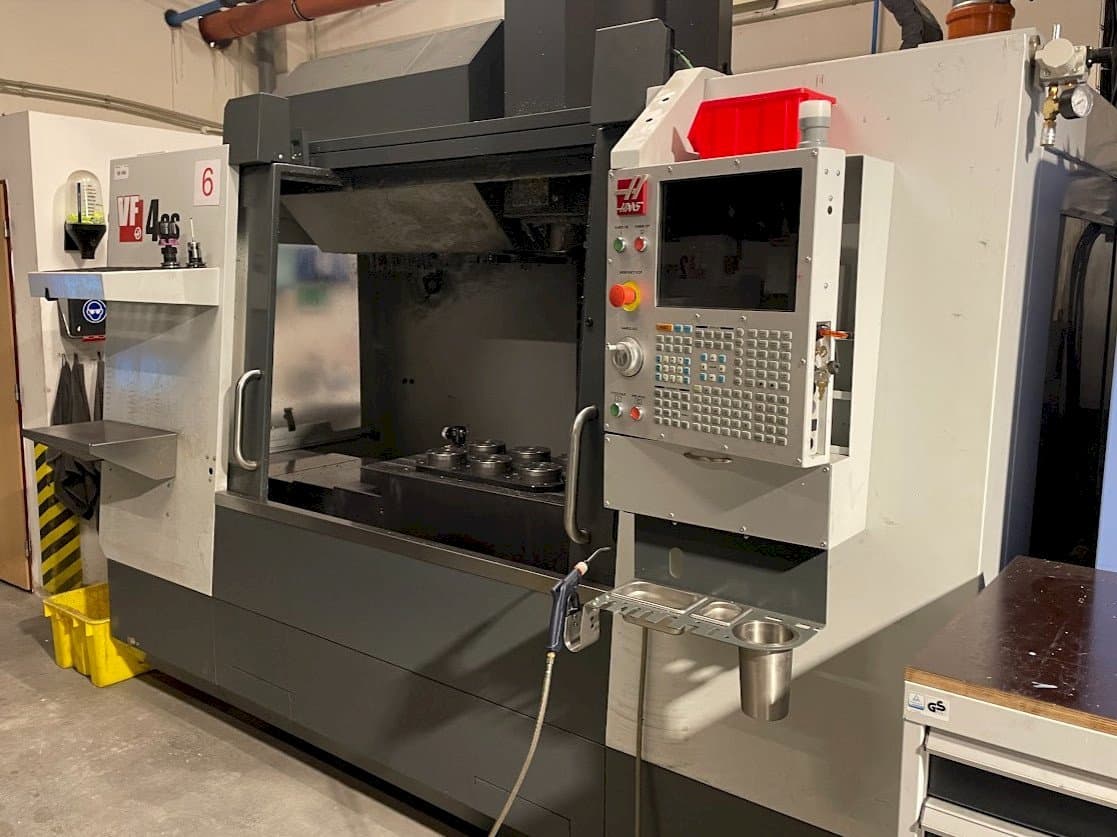

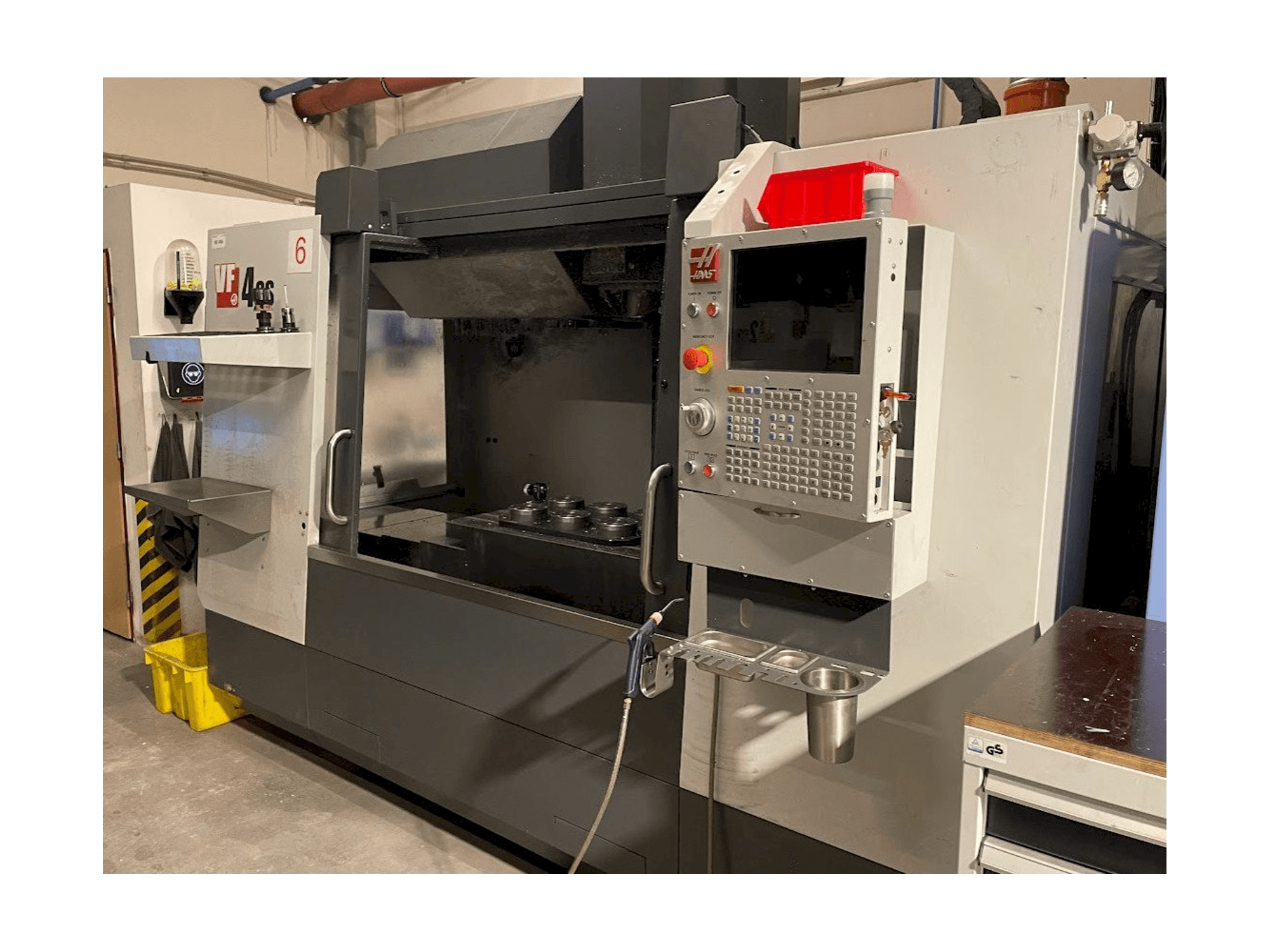

HAAS VF-4SS Vertical Machining center

Show in original language

This HAAS VF-4SS Vertical Machining center was manufactured in the year 2019 in the United States and has 10771 production hours, of which 4664 are cutting hours. It is equipped with a HAAS control unit and has 3+2 axis. The machine has a spindle speed of 12000 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
production hours: 10771
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6033 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Max payload: 3+2 KG

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1324 mm
Outer width: 457 mm

Tools

Slots in storage: 30
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Kitagawa 2 axis rotary table.
- - Min-max height under spindle 107-742 mm
- - Spindle motor power 29. 8 kw
- - Wips system (wireless intuitive probing system)
- - Tool setter, spindle probe
- - Programmable coolant nozzle
- - Coolant
- - Usb port
- - Through spindle coolant
- - Swarf auger
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
