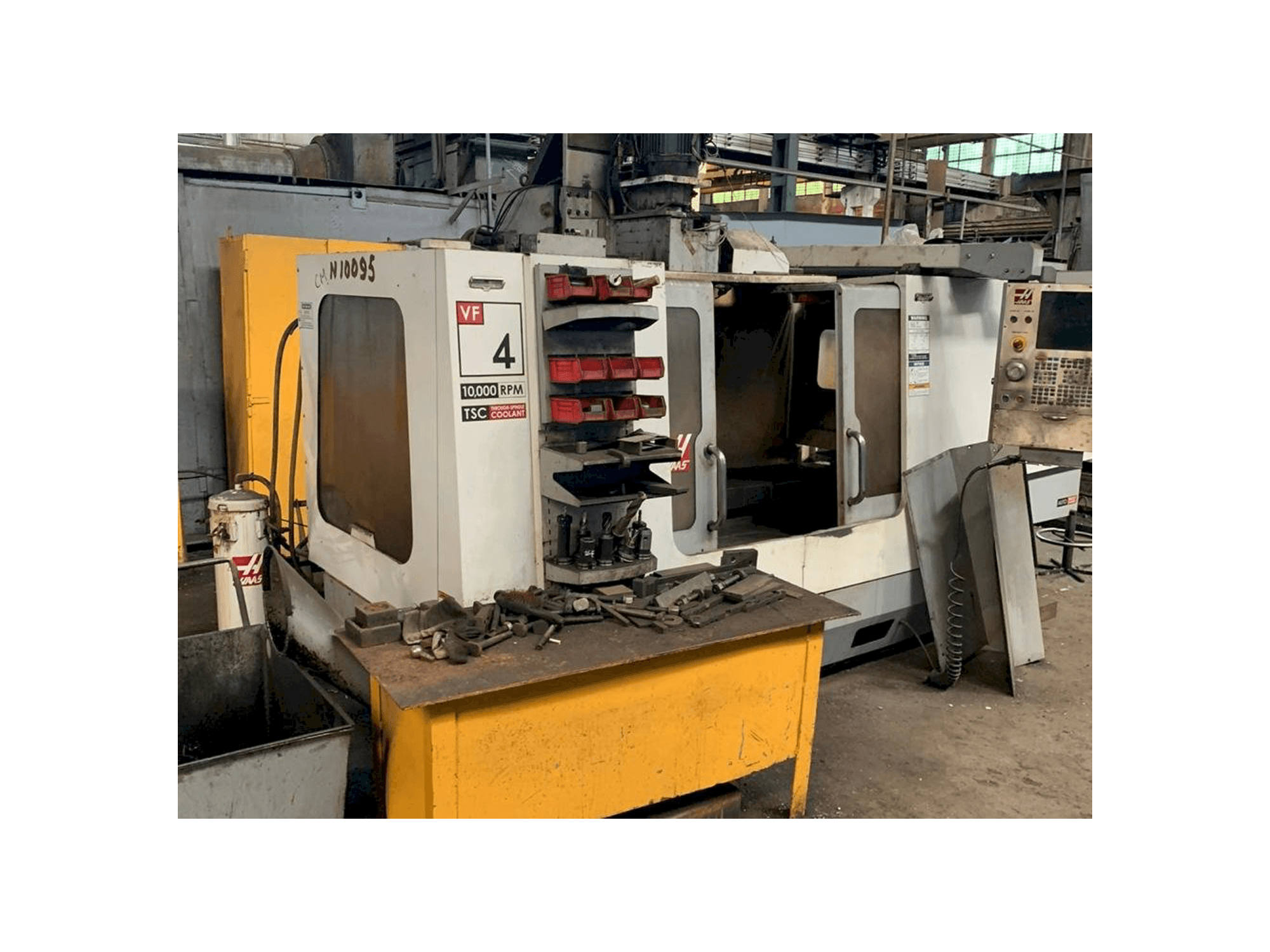

Front view of HAAS VF-4  machine

HAAS - VF-4RU-MIL-HAA-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

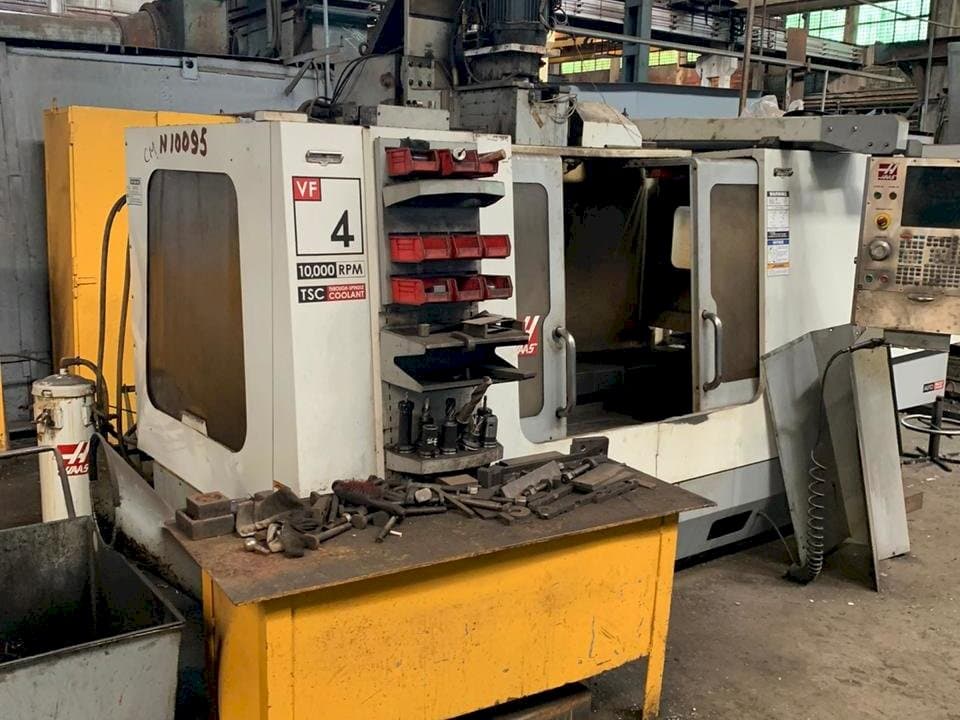

This HAAS VF-4 Vertical Machining Center was produced in the year 2006 in the United States. It is equipped with a control unit of the same brand. This machine can work with a spindle speed up to 8100 rpm.

Overview

  • brand: HAAS
  • year: 2006
  • MODEL: VF-4
  • application type: Milling
  • Location: Russia
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - HAAS VF-4

Main drive

  • Spindle speed range: 8100 1/MIN

Movement

  • X-AXIS Movement: 1270 mm
  • X-AXIS Rapid traverse: 25.4 m/min
  • Y-AXIS Movement: 508 mm
  • Y-AXIS Rapid traverse: 25.4 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Rapid traverse: 25.4 m/min

Tools

  • Slots in storage: 5
  • Type of tool holder: BT or CT 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle nose to table (~ max): 737 mm
      • - Spindle nose to table (~ min): 102 mm
      • - Spindle mas rating 22. 4 kw
      • - C axis - rotation: length: 1321 mm, width: 457 mm
      • - Max tool diameter (full): 89 mm
      • - Max tool weight: 5. 4 kg
      • - Coolant capacity: 208 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
