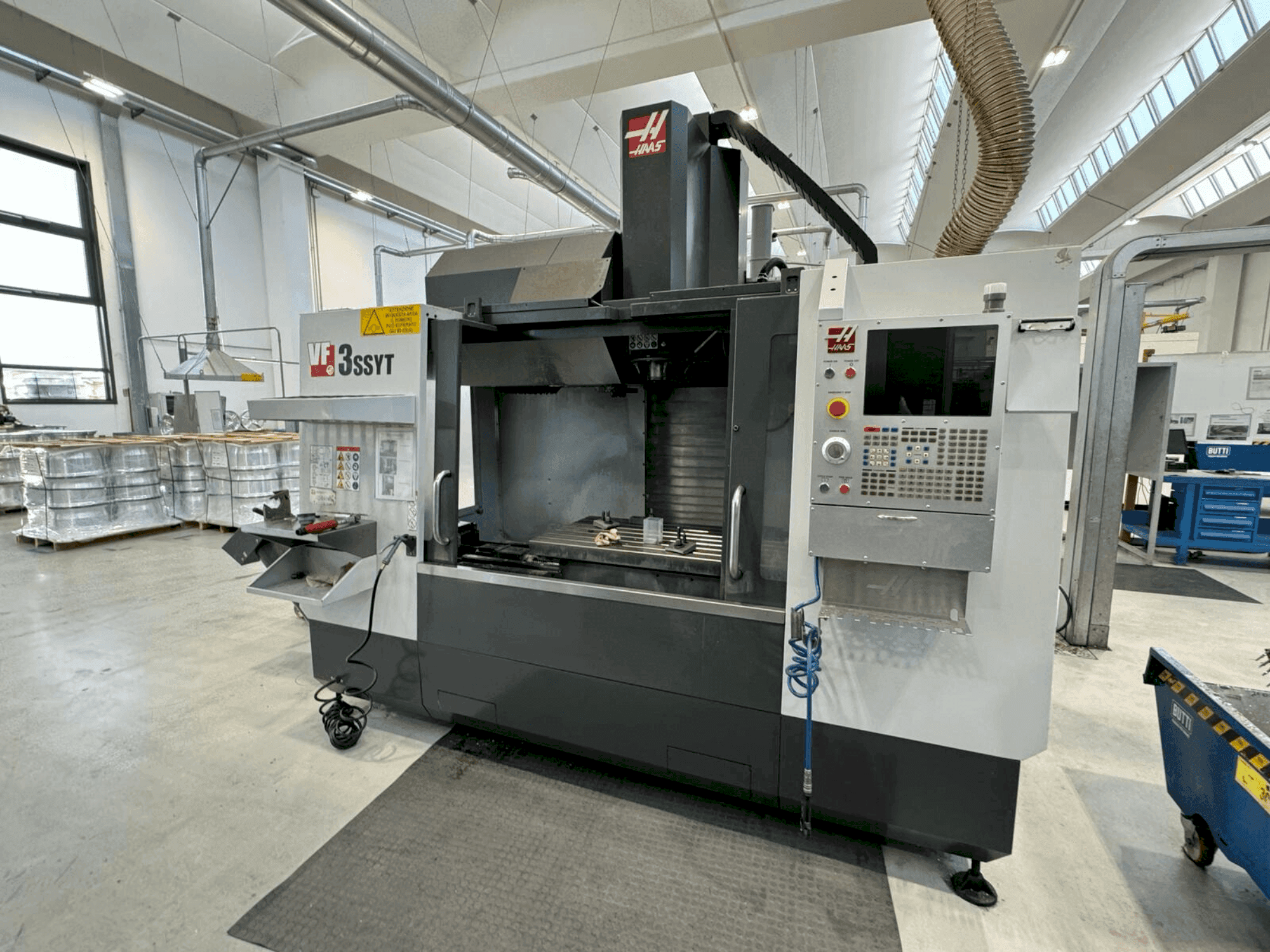

HAAS VF-3SSYT Vertical Machining centre

Show in original language

This HAAS VF-3SSYT Vertical Machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 and a cone type BT 40.

Overview

brand: HAAS
year: 2019
MODEL: VF-3SSYT
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-3SSYT

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22,4 kW

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (~ max) 742 mm, spindle nose to table (~ min) 107 mm
- - Spindle (s. A. E. And metric)
- - Max torque 90,0 ft-lbf @ 2000 rpm 122,0 nm @ 2000 rpm
- - Drive system inline direct-drive inline direct-drive
- - Cone type bt 40
- - Bearing lubrication air / oil injection air / oil injection
- - Cooling liquid cooled liquid cooled

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
