Haas VF-2S Vertical Machining center

Show in original language

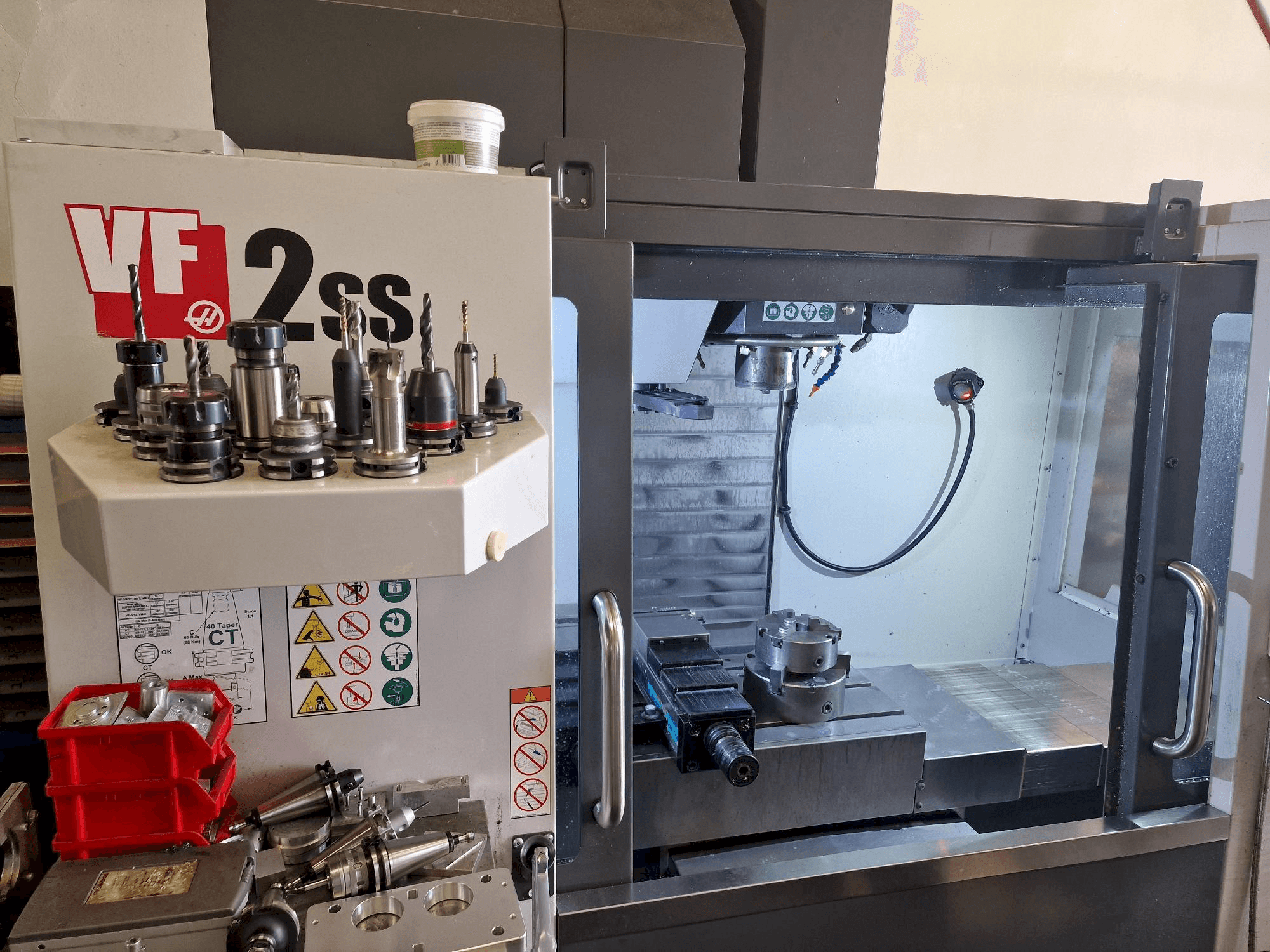

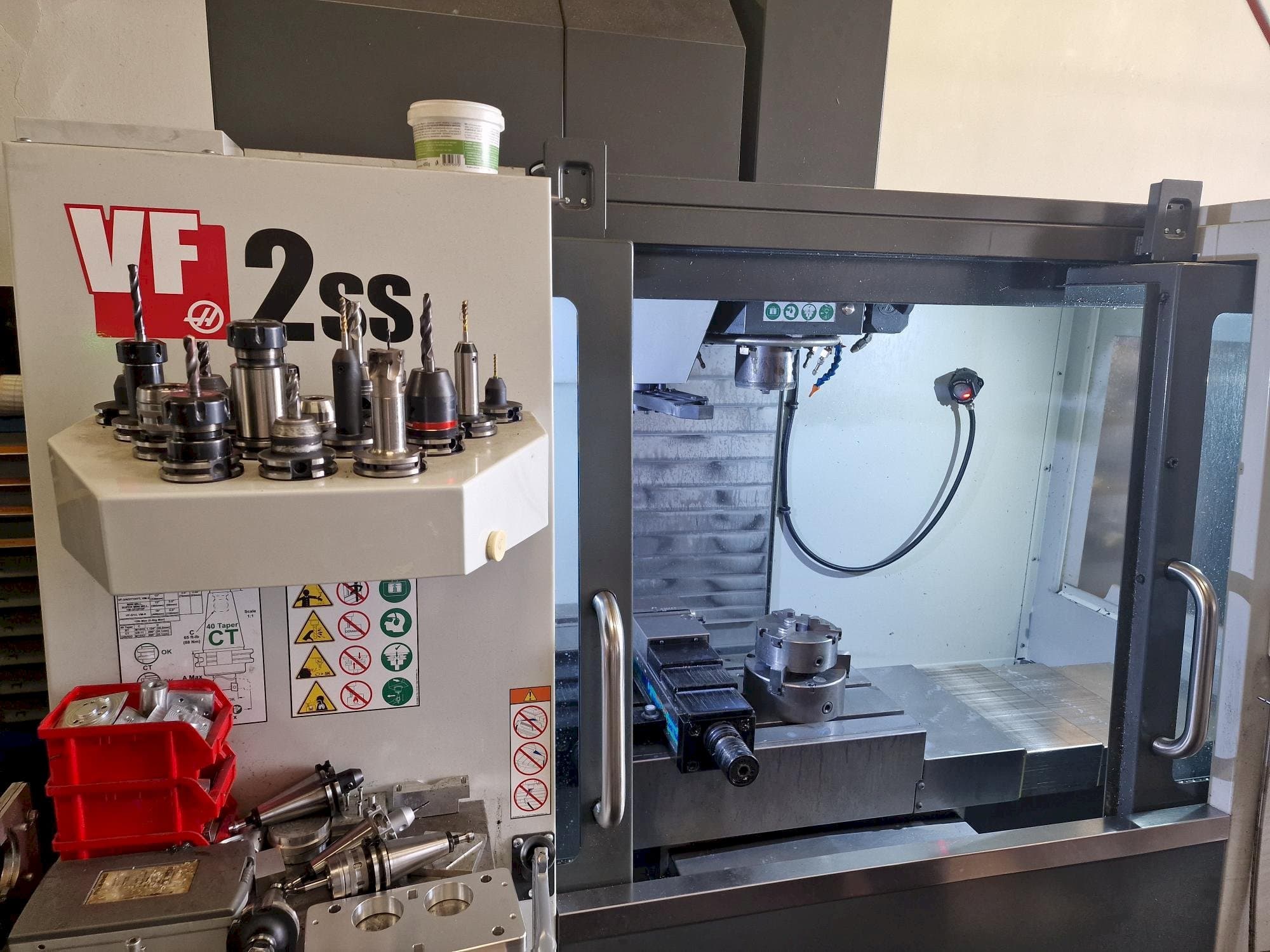

This Haas VF-2S Vertical Machining center was manufactured in the year 2018 in the United States and has 11000 production hours, of which 3500 are cutting hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2018
MODEL: VF-2SS
production hours: 11000
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2SS

General Data

Measurements width: 2789 mm
Measurements depth: 2357 mm
Measurements height: 2654 mm
Machine weight: 3539 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

Y-AXIS Movement: 762 mm
Z-AXIS Movement: 406 mm
V-Axis Movement: 508 mm

Workpiece

Workpiece weight: 680 kg

Table

Outer length: 914 mm
Outer width: 356 mm
TSlots size: 3
Distance between: 125 mm

Tools

Slots in storage: 24
Type of tool holder: 40

Media

Main electronic connection: 440 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: 50% aluminium, 30% steel, 20% plastics

Machine Benefits

Technical Machine Benefits:
- - Min - max height under spindle: 102 - 610mm
- - Spindle motor power 22. 4 kw
- - Rapid feedrates: 35. 6m/minute
- - Cooling through spindle
- - Incl. 2 probes (tool and workpiece)
Qualitative Machine Benefits:
- - Very good condition!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
