HAAS - UMC-750PL-MIL-HAA-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

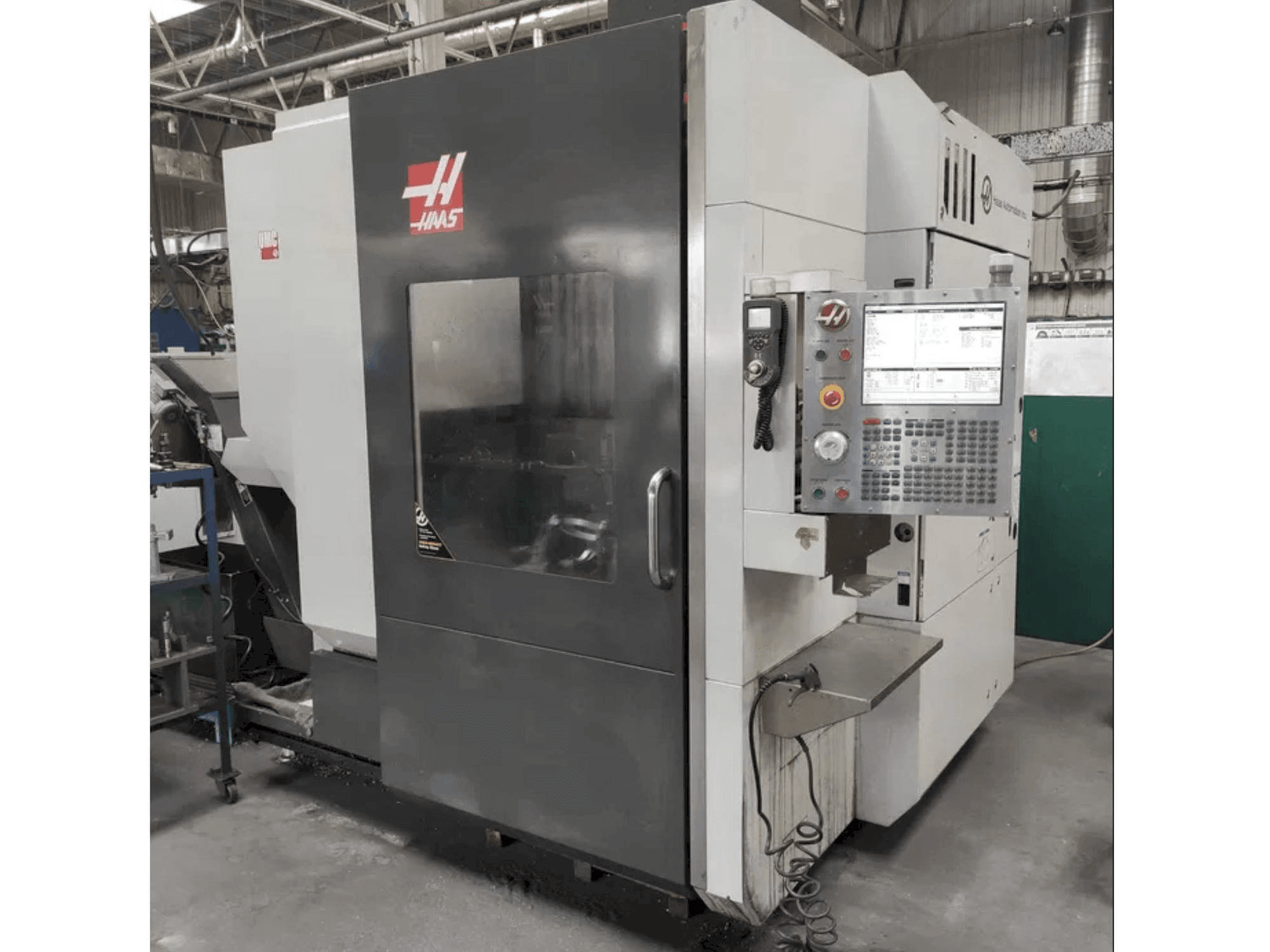

This HAAS UMC - 750 Universal Machining Center was made in 2013 in the United States. This has accumulated a working record of approximately 10000 hours. It is operated through a control unit of the same brand. This 5 axis machine in good working conditions can work with a spindle speed up to 8100 rpm. It comes with a 630 x 500 mm dual-axis trunnion table. This machine is ready for tests and has its full documentation available.

Overview

brand: HAAS
year: 2013
MODEL: UMC-750
production hours: 10000
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC-750

General Data

Measurements width: 3048 mm
Measurements depth: 1445 mm
Measurements height: 2870 mm
Machine weight: 8165 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 762 MM
X-AXIS Rapid traverse: 25.4 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 25.4 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 25.4 m/min

Table

Outer length: 630 MM
Outer width: 500 mm
Table load: 300 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 76 mm
Max tool length: 406 mm

Media

Main electronic connection: 360-480 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis tilt: +110 deg to -35 deg; c-axis: 360 deg
- - Dual-axis trunnion table
- - Max torque: 122 nm
- - Drive system: inline direct-drive
- - Tool changer type: smtc
- - Capacity: 40+1 pcs
- - Time of changing tools: 2. 8 sec
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Ready for tests
- - Full documentation available.

Extra information

- There are no any tooling in clouded in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
