➤ Used HAAS TL-2 - 2012 - Lathe For Sale

Show in original language

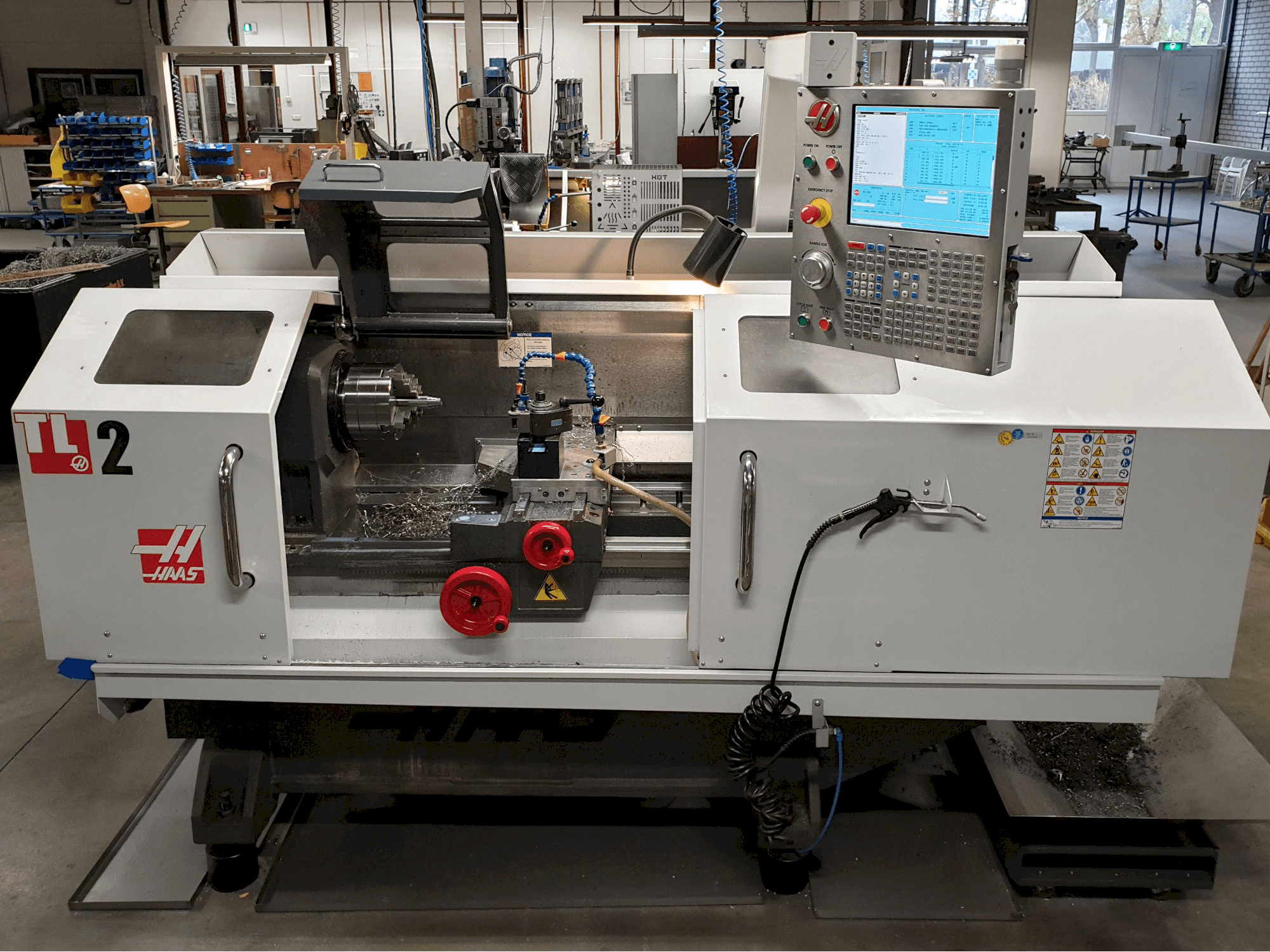

This HAAS TL-2 Lathe was manufactured in the United States in 2012. Operated through a Control unit of the same brand, its programming system consists of 1 Megabyte program memory. This machine counts with 2 axis and a body measurement of 406 x 1218 mm performing 200 revolutions per minute. It is equipped with an A2-6 spindle, a 10 HP Vector Drive and a coolant pump kit. Its heavy-duty cross-slide accepts a variety of tool post options, whereas the optional tailstock with manual quill provides additional support for long workpieces. Several additional equipment is included in the delivery of this almost new machine.

Overview

brand: HAAS
year: 2012
MODEL: TL-2
production hours: 480
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS TL-2

General Data

Measurements width: 3125 mm
Measurements depth: 1730 mm
Measurements height: 2010 mm
Machine weight: 1860 kg

Control Unit

CNC main language: Dutch
CNC language customizable: Yes
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 1800 rpm 1/MIN

Movement

X-AXIS Movement: 203 mm
Z-AXIS Movement: 1219 mm

Workpiece

Workpiece drm: 76 mm
Workpiece x: 508 mm
Workpiece z: 279 mm

Turret

Number of turrets: 1

Tools

Max tool length: 20 MM

Media

Main electronic connection: 366 - 425 V
Power consumption: 14 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 1x 3-jaw scroll plate chuck
- 13x Multi fix tooling
- 1x Collet chuck

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
