- ➤ Used HAAS ST40L - 2014 - Lathe For sale | gindumac.com

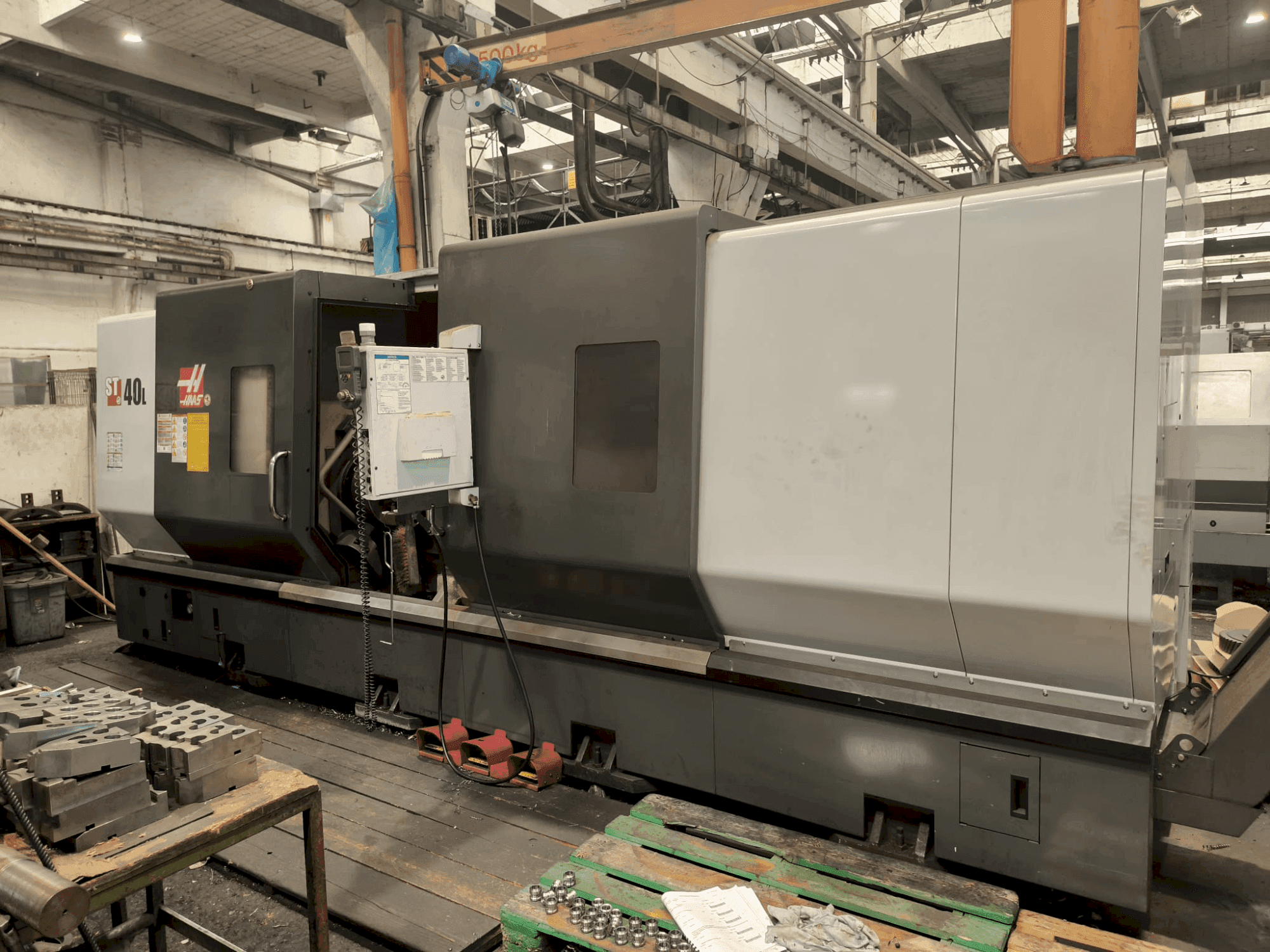

This HAAS ST40L lathe was manufactured in 2014. It features a swing diameter over front apron of 876 mm and a maximum cutting length of 2032 mm. Equipped with a 12-station BOT turret and a 2-speed gearbox, it offers a spindle speed up to 2400 rpm and a spindle power of 29.8 kW. Ideal for handling large and complex parts, the HAAS ST40L machine we have for sale. Contact us for further details regarding this lathe.
Overview
- brand: HAAS
- year: 2014
- MODEL: ST40L
- application type: Turning
- Location: Croatia
- machine type: Lathe
- availability: Immediately
Technical Information - HAAS ST40L
General Data
- Measurements width: 242 cm MM
- Measurements depth: 646 cm MM
- Measurements height: 267 cm MM
- Machine weight: 13563 kg
Main drive
- Spindle speed range: 2400 rpm 1/MIN
- Spindle motor power: 29,8 kW (41,0 kW with XP OPTION)
- Spindle bore: 117,3 mm
- Number of axis: 2
Movement
- X-AXIS Movement: 432 MM
- Z-AXIS Movement: 2032 MM
Workpiece
- Workpiece drm over bed: 648 mm
- Workpiece drm over support: 2032 mm
Additional Equipment
- - Max Torque: 1898.0 Nm @ 150 rpm (2847.0 Nm @ 150 rpm with XP OPTION)
- - Max Thrust X: 24465 N / Max Thrust Z: 40034 N
- - Feedrates : Rapid Traverse X: 18.0 m/min Rapid Traverse Z: 8.1 m/min
- - Workpiece: Chuck Size: 381 mm / Bar Capacity: 102 mm
- - Number of Tools: 12-Station BOT / OD vs ID Tools: Any Combination (will vary with turret) / Boring Bar Rear Clearance: 111.0 mm
- - Coolant Capacity: 360 L
- - Air Requirements: Air Required: 113 L/min @ 6.9 bar / Inline Air Hose: 3/8 in / Coupler (Air): 3/8 in / Air Pressure Min: 5.5 bar
- - Electrical Specifications: Input AC Voltage (3 Phase) - Low: 220 VAC / Full Load Amps (3 Phase) - Low: 105 A / Input AC Voltage (3 Phase) - High: 440 VAC / Full Load Amps (3 Phase) - High: 53 A
Additional Information
- Technical Machine Benefits:
- - High spindle power and torque for robust performance.
- - Versatile tooling options with a 12-station bot turret.
- - Efficient feedrates for increased productivity.
- Qualitative Machine Benefits:
- - Precision and reliability with advanced spindle and turret options.
- - Input AC Voltage and Full Load Amps: Provided for both low and high voltage configurations.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
