HAAS - ST-30PL-TUR-HAA-2014-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathe HAAS ST-30 - 2014 - for sale | gindumac.com

Show in original language

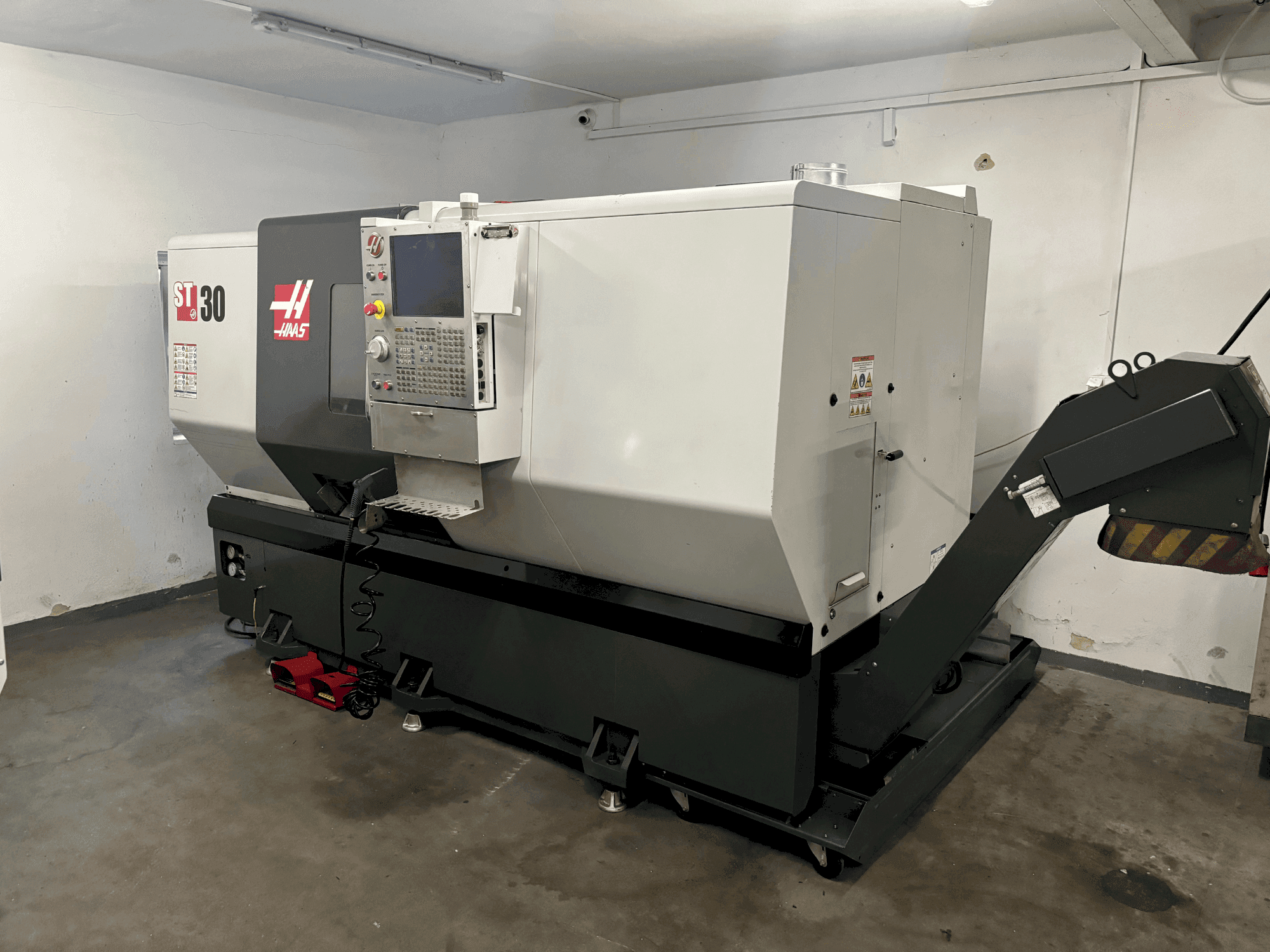

This lathe was manufactured in 2014. The HAAS ST-30 features a robust Chuck size of 254 mm, accommodating a maximum part swing of 533 mm and a turning length of up to 826 mm. Equipped with a 12-station turret and a tailstock, it enhances productivity for complex machining tasks. Its feed rates, with rapids on both X and Z axes at 24.0 m/min, coupled with a max spindle speed of 3400 rpm, ensure efficient machining cycles. The HAAS ST-30 the HAAS lathe we have for sale includes additional accessories like a HAAS SERVO BAR 3000 bar feeder and part catcher, greatly streamlining the manufacturing process. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2014
MODEL: ST-30
production hours: 17751
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-30

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 3400 1/MIN
Spindle bore: 889 mm
Number of axis: 2

Movement

X-AXIS Movement: 239 mm
X-AXIS Rapid traverse: 24.0 m/min
Z-AXIS Movement: 826 mm
Z-AXIS Rapid traverse: 24.0 m/min

Turret

Number of turrets: 1
Number of tool slots: 12

Tools

Number of stations: 12

Additional Equipment

- Bar Feeder: HAAS SERVO BAR 3000
- Part Catcher

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece diameter: 533 mm
- - Max. Workpiece length: 826 mm
- - High rapids on x and z axes: 24. 0 m/min
- - Tailstock included
- - Chuck size: 254 mm
- - Bar capacity: 76 mm
- - Coolant capacity: 208 l
- - Between centers: 826 mm
Qualitative Machine Benefits:
- - Machine under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
