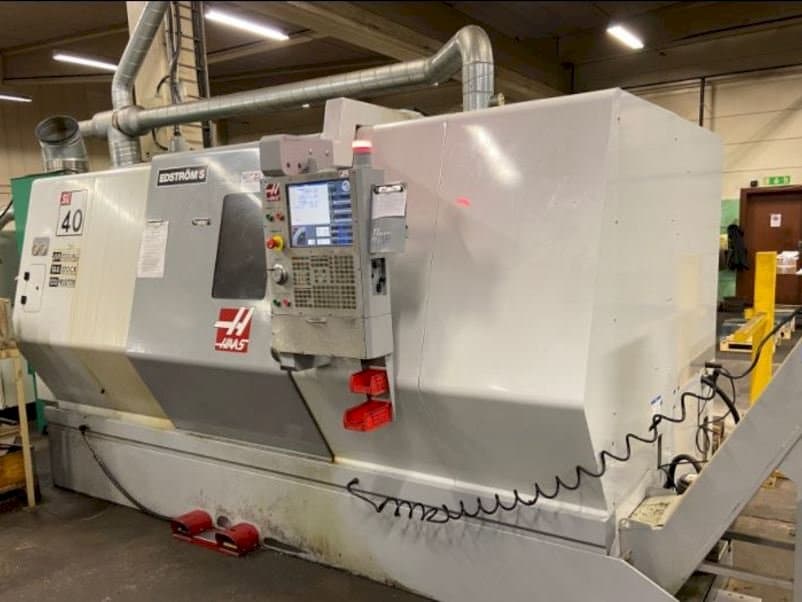

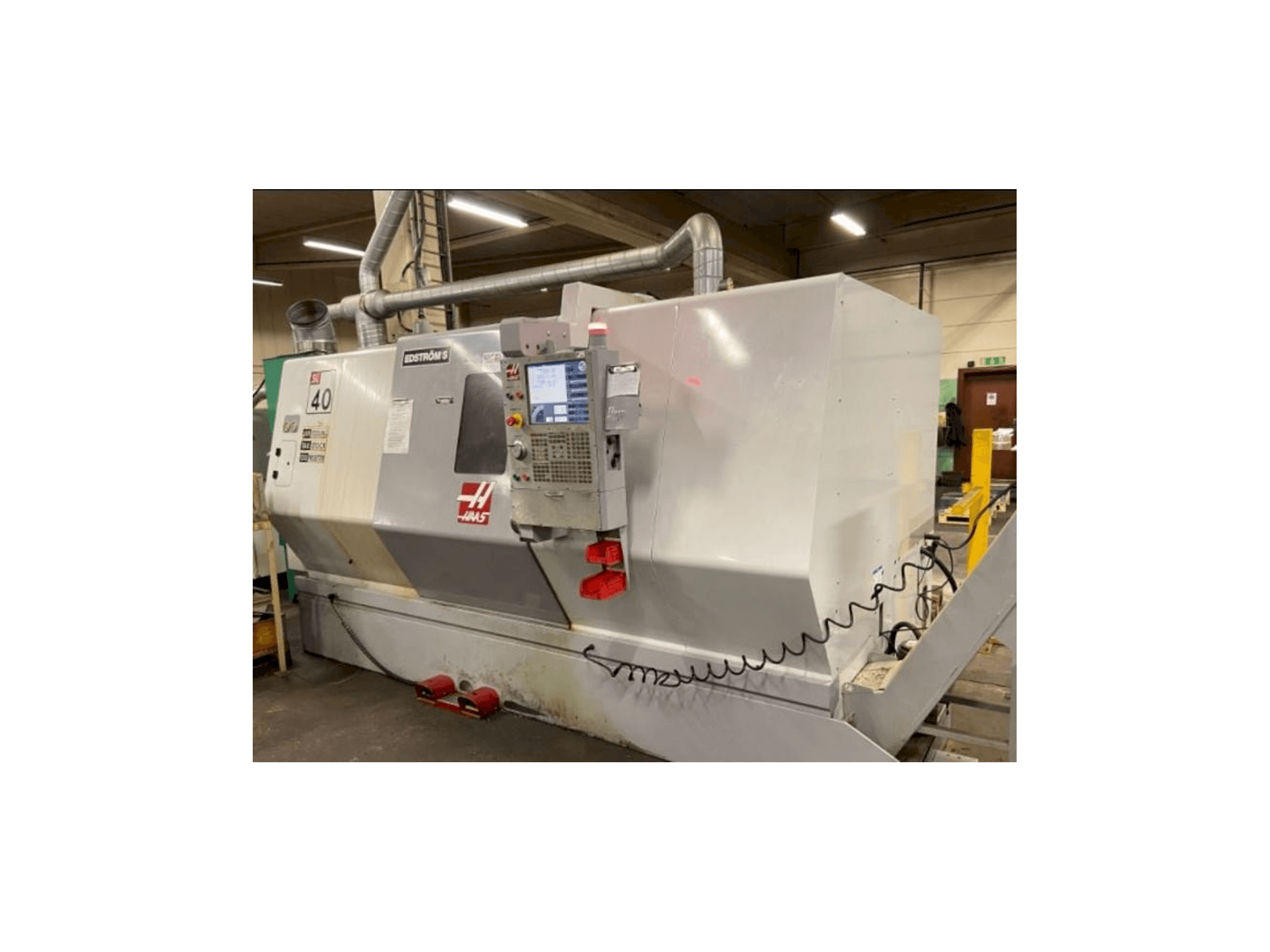

Front view of HAAS SL-40  machine

HAAS - SL-40GB-TUR-HAA-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS SL-40 Lathe was built in the year 2007 in United States. This 3 axis machine is equipped with a control unit of the same brand. It performs with a spindle speed up to 2400 rpm. This machine is in good conditions.

Overview

  • brand: HAAS
  • year: 2007
  • MODEL: SL-40
  • application type: Turning
  • Location: United Kingdom
  • machine type: Horizontal Turning Machine
  • availability: Sold
  • control unit brand: HAAS

Technical Information - HAAS SL-40

General Data

  • Measurements width: 3810 mm
  • Measurements depth: 2337 mm
  • Measurements height: 2261 mm
  • Machine weight: 11340 kg

Control Unit

  • Brand: HAAS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 2400 1/MIN
  • Spindle motor power: 29.42 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 432 MM
  • Y-AXIS Movement: 1118 MM

Turret

  • Number of turrets: 1

Media

  • Chip conveyor: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swing over bed 1016 mm
      • - Swing over cross-slide 635 mm
      • - Maximum cutting diameter 648 mm
      • - Distance between centres 1295 mm
      • - Maximum cutting length 1118 mm
      • - Bar capacity 102 mm
      • - Turret 10 positions 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
      • - 3 jaw chuck 15'', tool setter, coolant, tailstock, swarf conveyor
      • - Milling rpm 3000, c axis 0. 01 degrees
    • Qualitative Machine Benefits:
      • - Machine in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
